Center Speaker Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Verify the resistance between center speaker terminals.
- If the resistance is not within the specification, replace the center speaker.
Resistance

1.8 ohms
Connect a 1.5 V battery to the center speaker and verify that sound is output from the center speaker.
- If no sound is output, replace the center speaker.

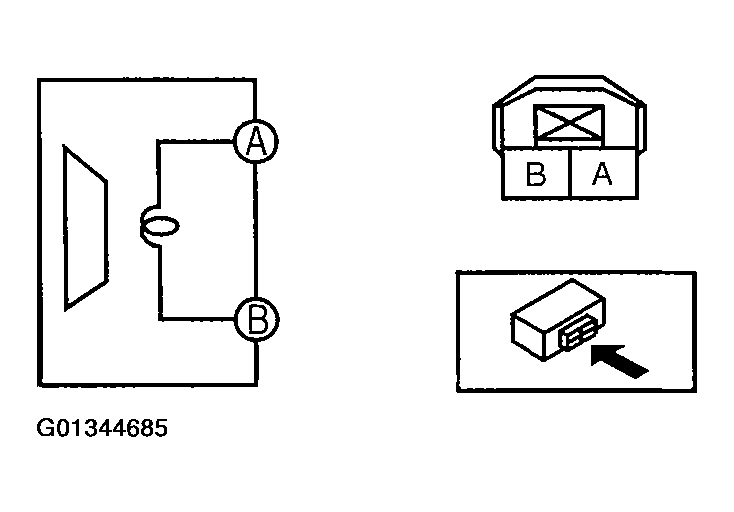

Fig 1: Identifying Center Speaker Terminals Connection
Courtesy of MAZDA MOTORS CORP.
