Control System Diagram (BP With TC)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Control System Diagram (BP With TC)

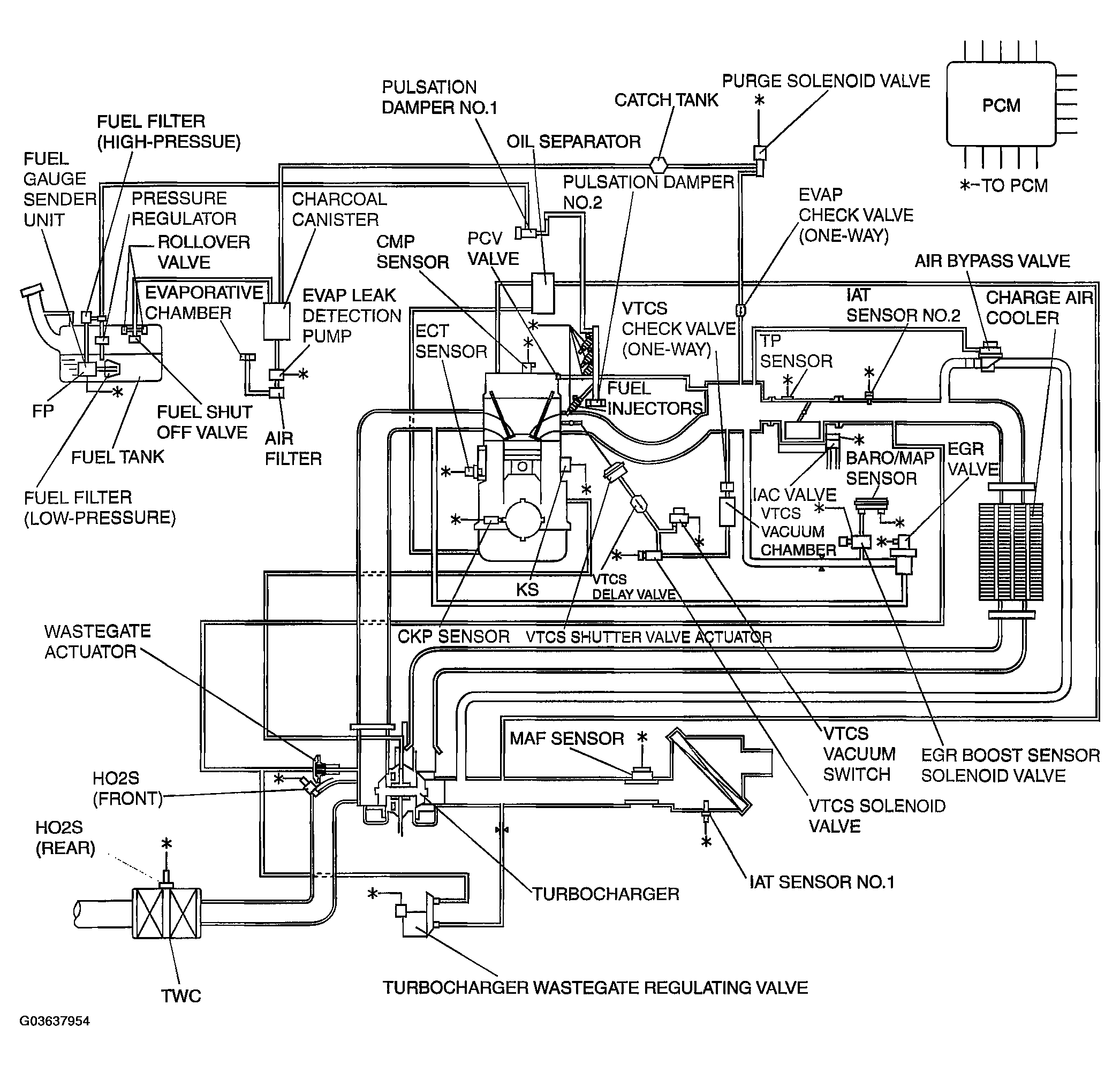

Fig 1: Identifying Control System Diagram (BP With TC)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
