Control System Diagram (BP)

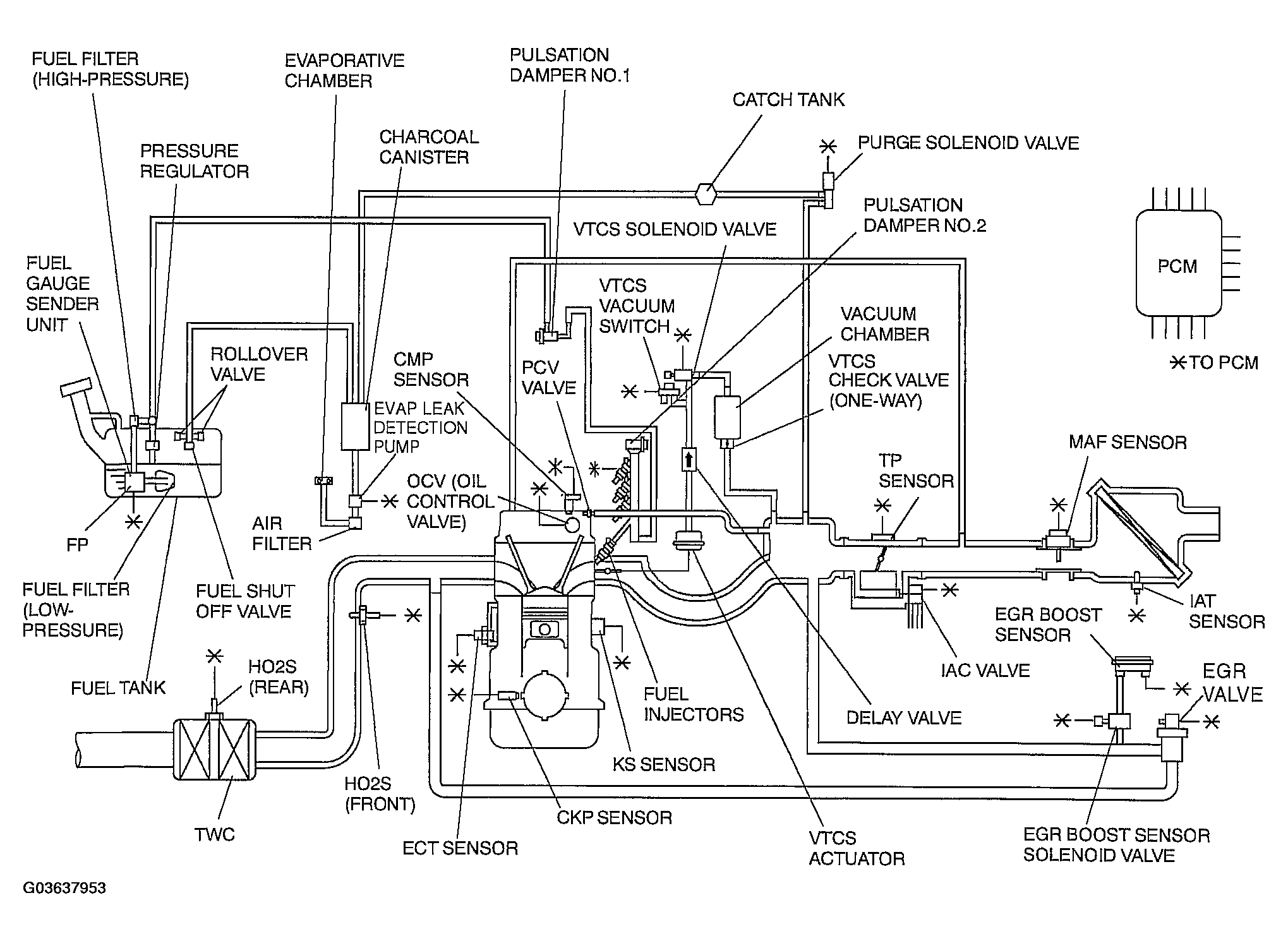

Fig 1: Identifying Control System Diagram (BP)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
