Control System Wiring Diagram (BP)

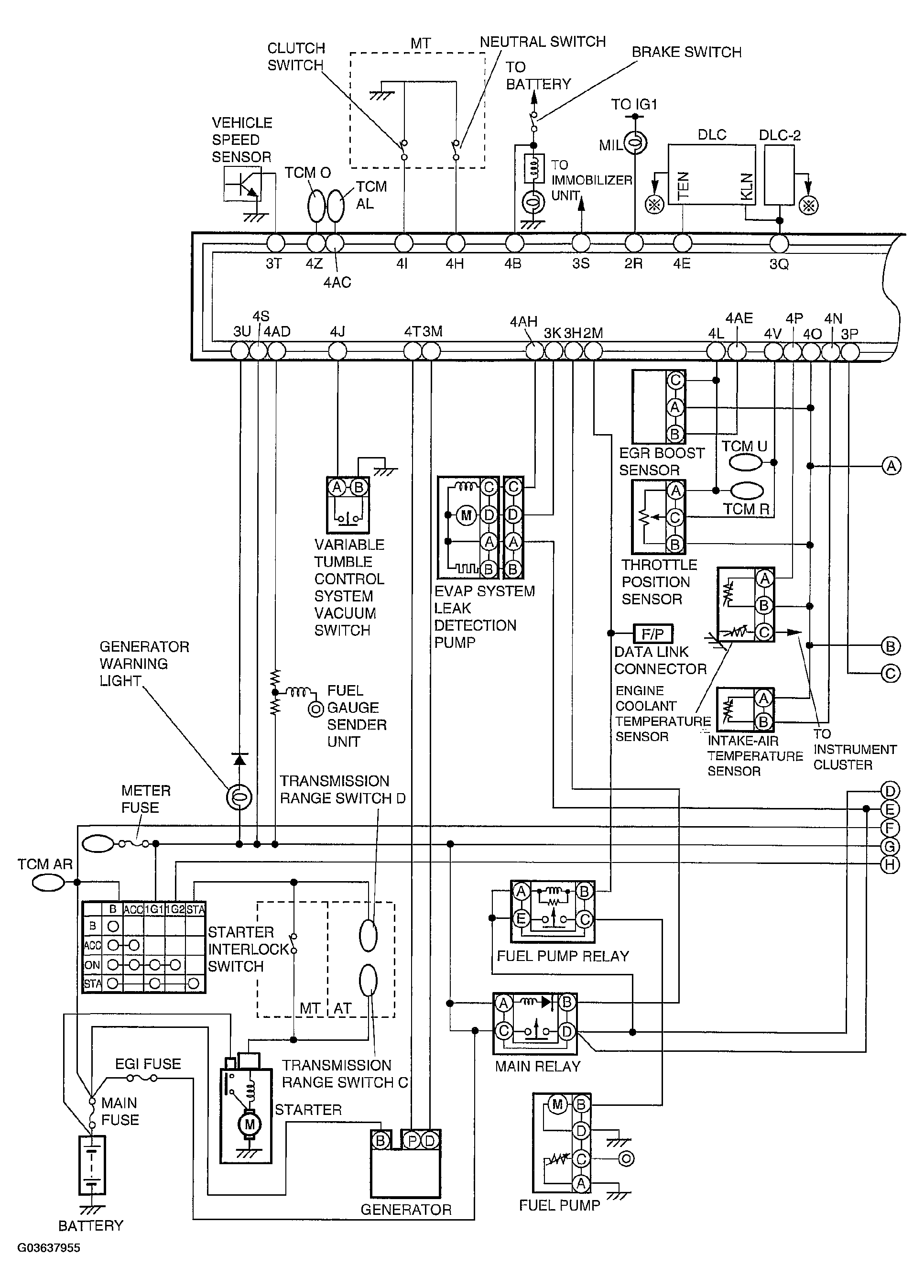

Fig 1: Identifying Control System Wiring Diagram (BP) (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

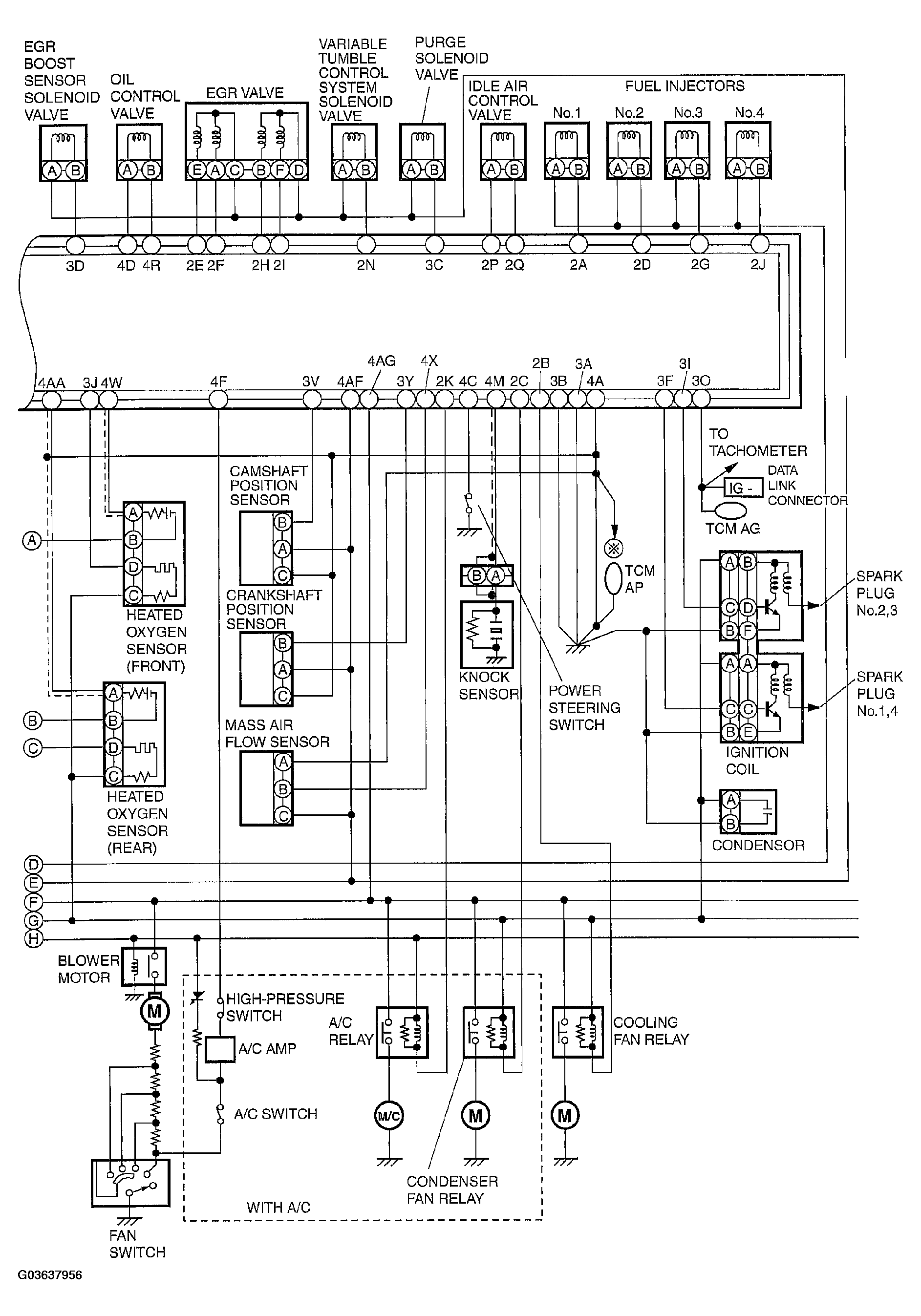

Fig 2: Identifying Control System Wiring Diagram (BP) (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
