Inspection of Continuity

NOTE:

Perform the following test only when directed.

Disconnect the negative battery cable.
Remove the neutral switch.
Inspect for continuity between the neutral switch terminals using an ohmmeter.
- If not as specified, replace the neutral switch.
- If neutral switch is okay but PID value is out of specification, perform the CIRCUIT OPEN/SHORT INSPECTION .
Specification

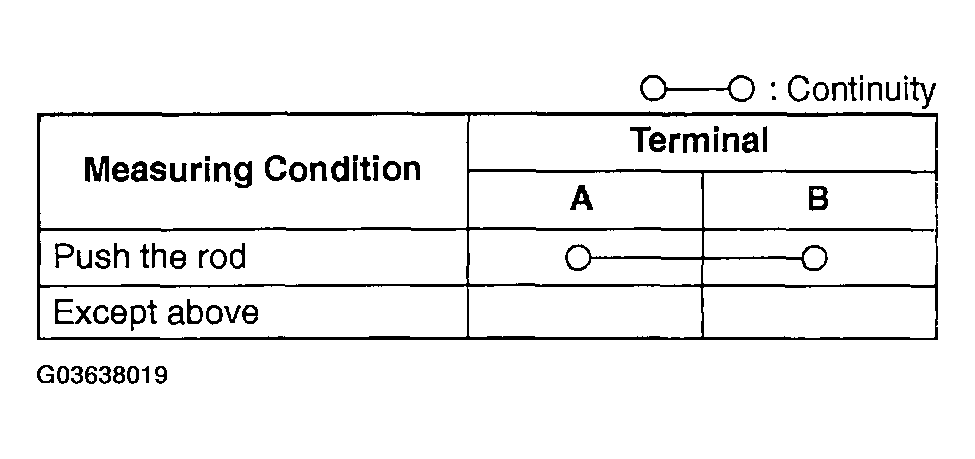

Fig 1: Identifying Neutral Switch Terminal Continuity
Courtesy of MAZDA MOTORS CORP.

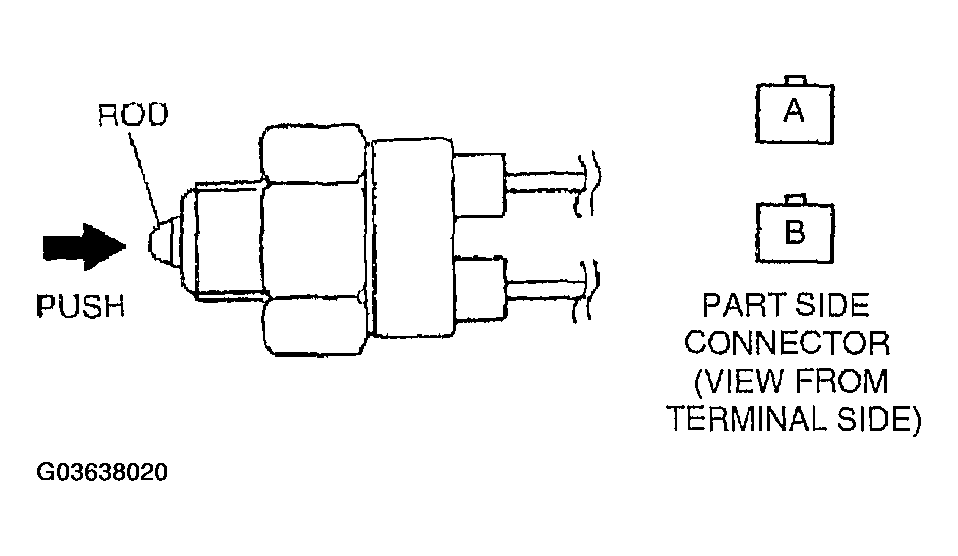

Fig 2: Identifying Neutral Switch Part Side Connector
Courtesy of MAZDA MOTORS CORP.
Reconnect the neutral switch connector.
