Inspection Using An Oscilloscope (Reference)
>>
Engine speed signal
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine speed signal

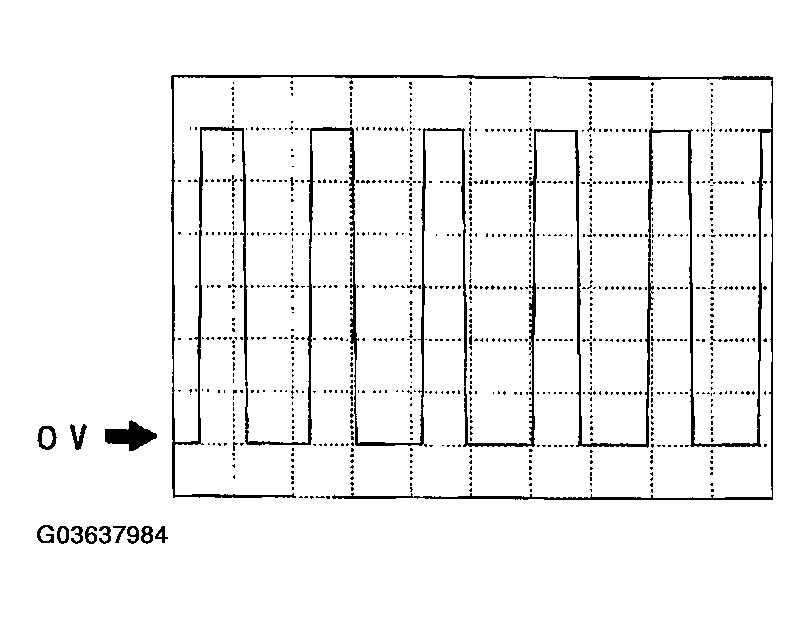

Fig 1: Engine Speed Signal - Oscilloscope Graph
Courtesy of MAZDA MOTORS CORP.
PCM terminal: 3O(+) <--> 4A(-)
Oscilloscope setting: 2.0 V/DIV (Y), 20 ms/DIV (X), DC range
Vehicle condition: Idling
Courtesy of MAZDA MOTORS CORP.
