NE signal

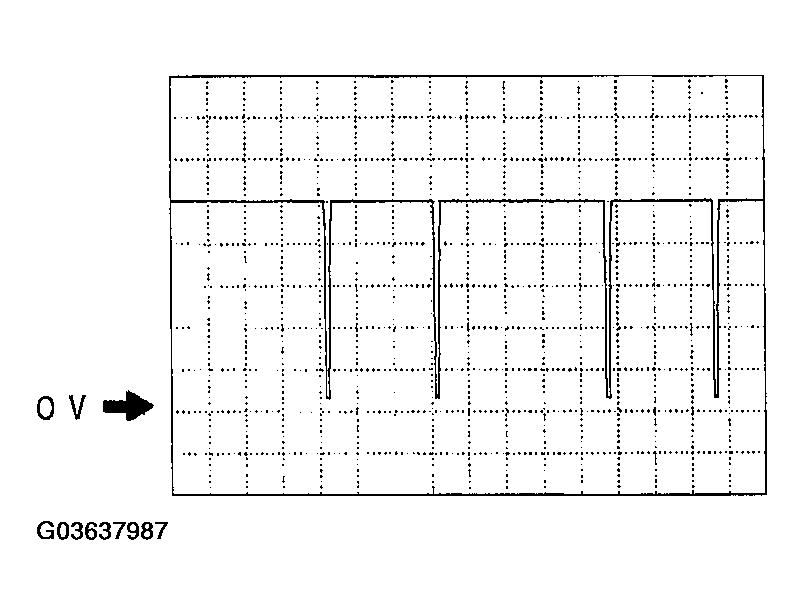

Fig 1: NE Signal - Oscilloscope Graph
Courtesy of MAZDA MOTORS CORP.
PCM terminal: 3Y(+) <--> 4A(-)
Oscilloscope setting: 1,0 V/DIV (Y), 5.0 ms/DIV (X), DC range
Vehicle condition: Idling
Courtesy of MAZDA MOTORS CORP.
