Fuel Hose Installation

Replace damaged or deformed fuel hoses, fuel pipes, and hose clamps.
When installing the fuel hose onto the fuel pipe, fit the hose onto the pipe over 25 mm {1.00 in}. When the pipe has a stopper, fit the hose until it contacts the stopper.

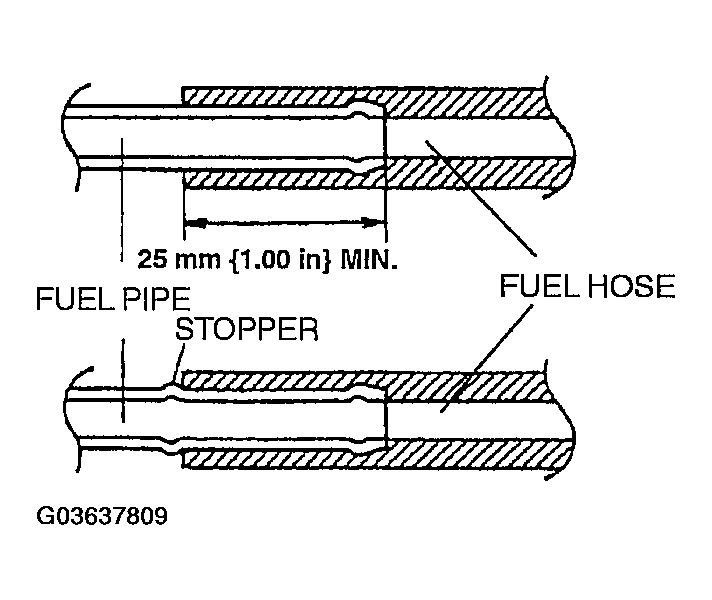

Fig 1: Installing Fuel Hose Onto Fuel Pipe
Courtesy of MAZDA MOTORS CORP.
Install a hose clamp over the fuel hose within the clamp installation range as shown, avoiding the original clamp position.

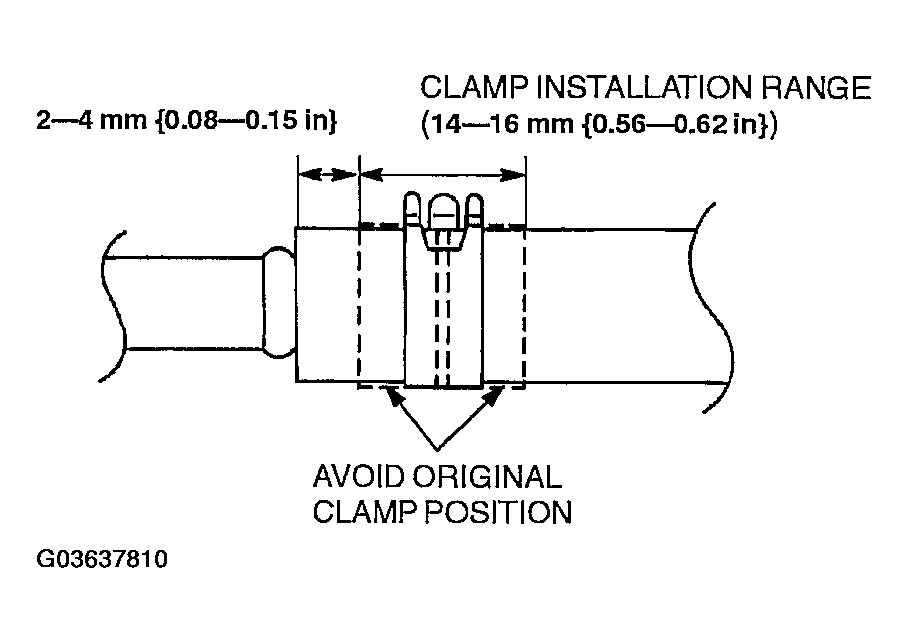

Fig 2: Installing Hose Clamp Over Fuel Hose Within Clamp
Courtesy of MAZDA MOTORS CORP.
When installing two clamps, their tabs must be positioned more than 45° (desired 180°) apart.

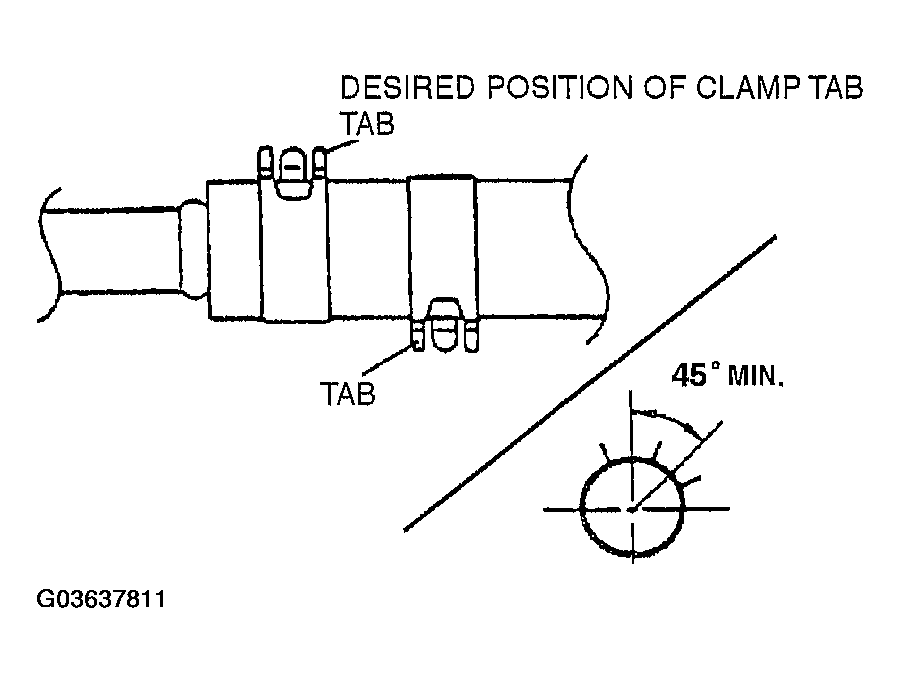

Fig 3: Installing Clamps
Courtesy of MAZDA MOTORS CORP.
