Fuel Injector Removal/Installation: Notes

  1. Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION (+)
  2. Disconnect the negative battery cable.
  3. Remove the dynamic chamber. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION (BP) (+) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION (BP WI (+)
  4. Remove in the order indicated in the table.

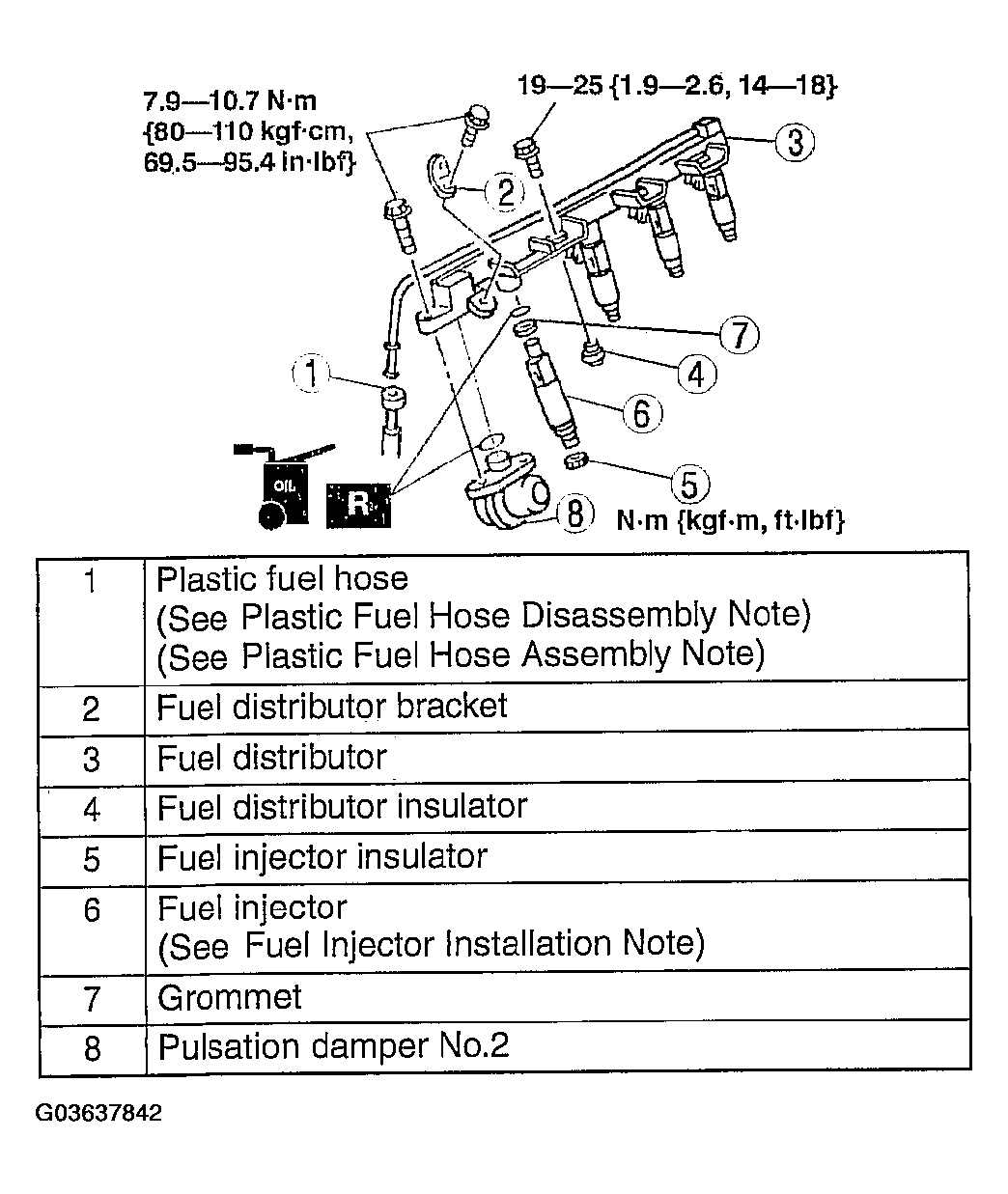

    Fig 1: Installing Fuel Injector (BP, BP With TC) & Torque Specifications
    G03637842Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
  6. Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION (+)
