Fuel System Location Index

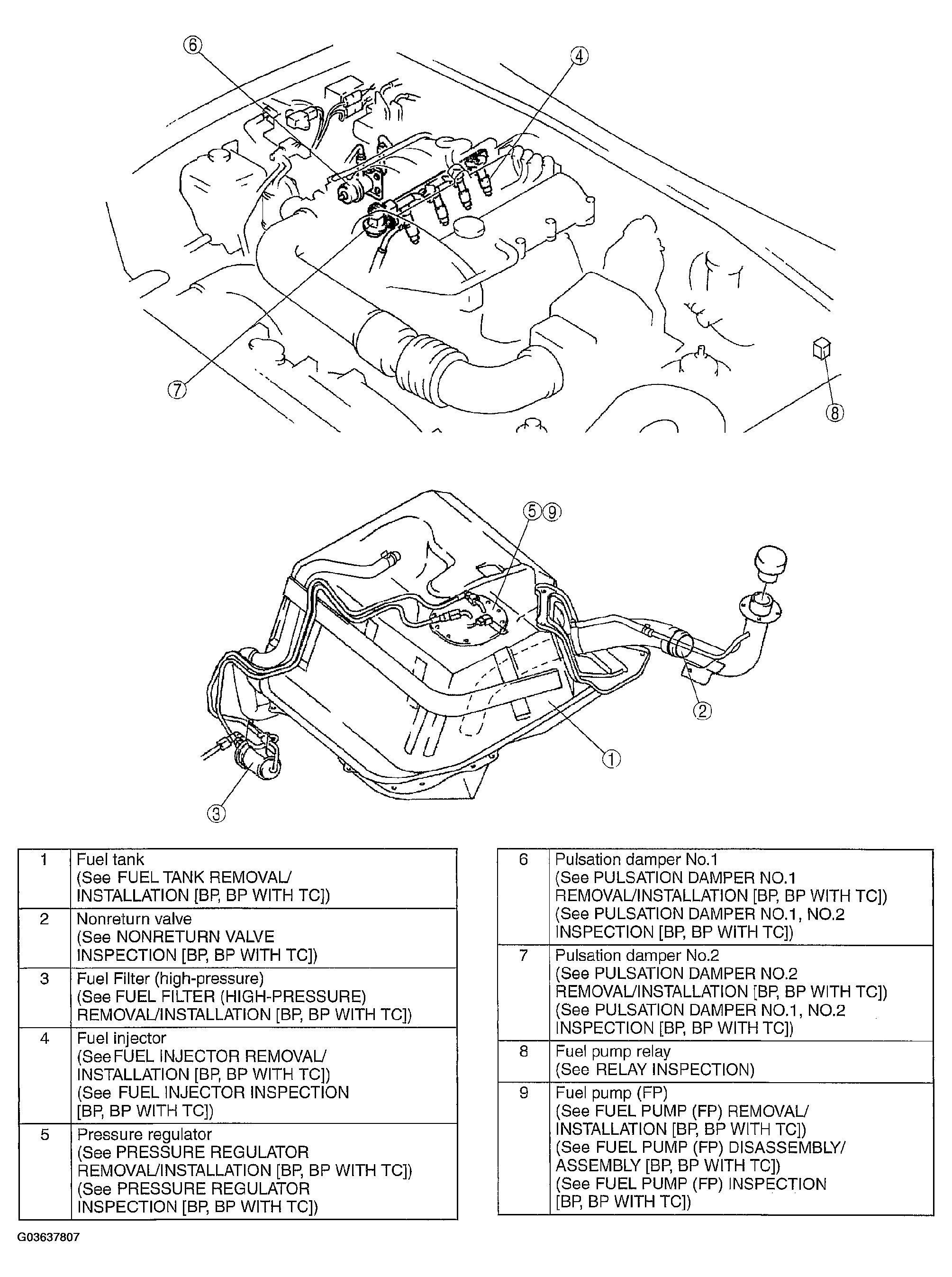

Fig 1: Locating Fuel System (BP, Bp With TC) Components
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
