Ignition System

NOTE: Firing order and coil pack information, see Fig 1

NOTE: On the firing order, cylinders No. 1 and 4, and cylinders No. 2 and 3 are fired simultaneously (wasted spark).

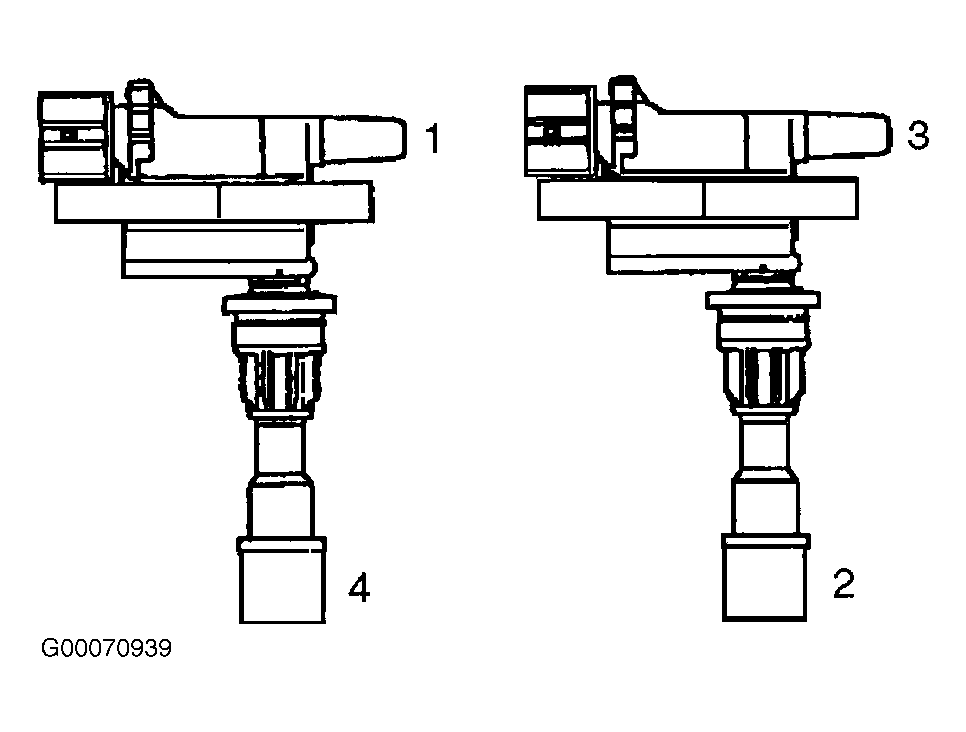

Fig 1: Firing Order & Coils

Courtesy of MAZDA MOTORS CORP.
