Spark Plug Removal/Installation
CAUTION:

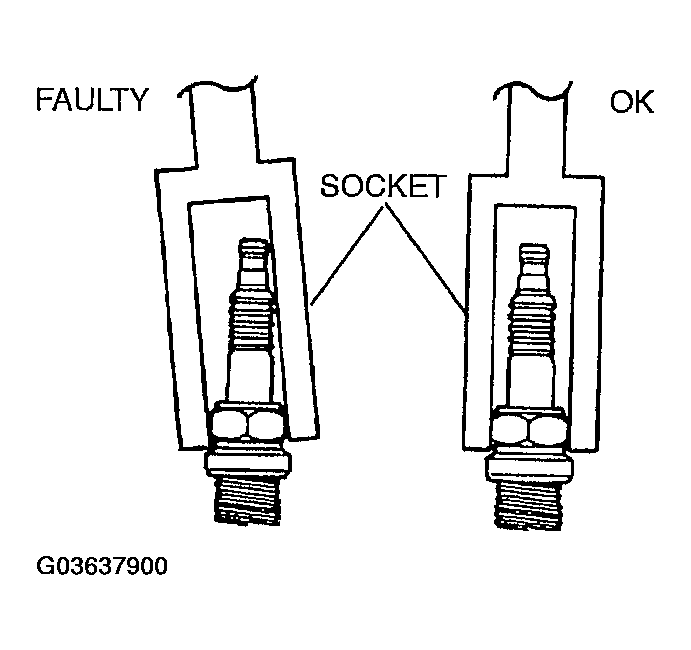

- To avoid breaking the spark plug, be sure to fit the socket squarely over it.
- Disconnect the high-tension lead. (See IGNITION COIL REMOVAL/INSTALLATION .)
- Remove the ignition coil. (See IGNITION COIL REMOVAL/INSTALLATION .)
- Remove the spark plug.
- Install in the reverse order of removal.
Tightening torque
15-22 N.m {1.5-2.3 kgf.m, 11-16 ft.lbf}
