Inspection of Continuity

NOTE:

Verify that the clutch pedal position switch is installed properly. (See CLUTCH PEDAL REMOVAL/INSTALLATION .)
Disconnect the negative battery cable.
Remove the clutch pedal position switch. (See CLUTCH PEDAL REMOVAL/INSTALLATION .)
Inspect continuity between the clutch pedal position switch terminals using an ohmmeter.
- If not as specified, replace the clutch pedal position switch.
- If clutch pedal position switch is okay, but PID value is out of specification, perform the CIRCUIT OPEN/SHORT INSPECTION .
Specification

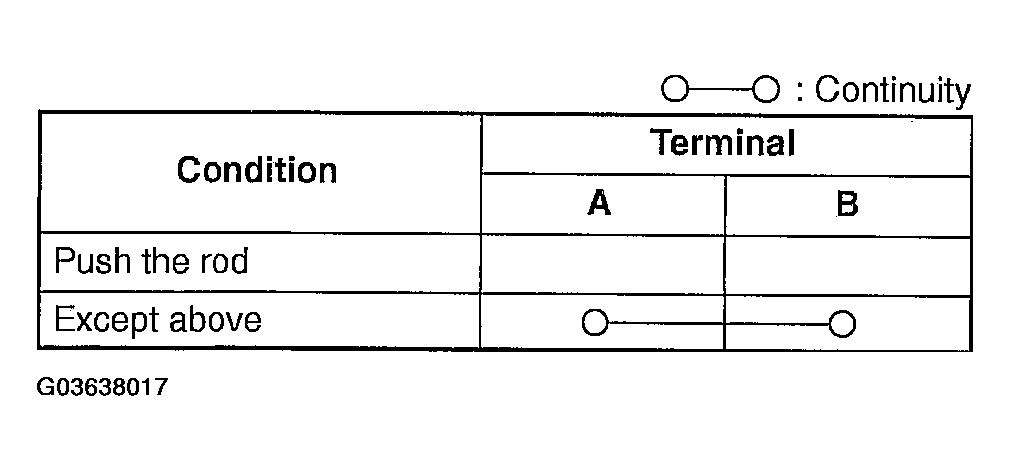

Fig 1: Identifying Clutch Pedal Position Switch Terminal Continuity
Courtesy of MAZDA MOTORS CORP.

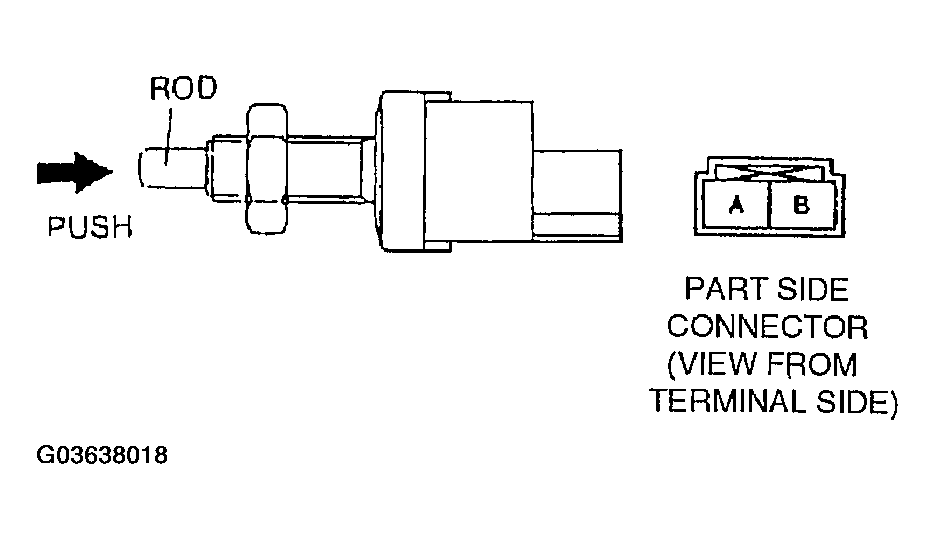

Fig 2: Identifying Clutch Pedal Position Switch Part Side Connector
Courtesy of MAZDA MOTORS CORP.
Reconnect the clutch pedal position switch connector.
