Generator field coil signal

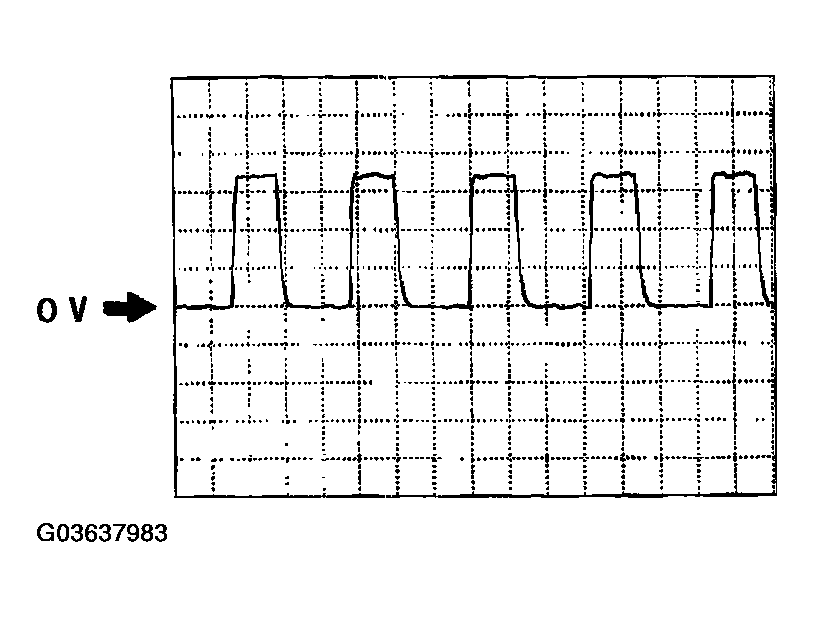

Fig 1: Generator Field Coil Signal - Oscilloscope Graph
Courtesy of MAZDA MOTORS CORP.
PCM terminal: 3M(+) <--> 4A(-)
Oscilloscope setting: 0.5 V/DIV (Y), 2.5 ms/DIV (X), DC range
Vehicle condition: Idling after warm-up (no electrical load)
Courtesy of MAZDA MOTORS CORP.
