IGT control signal

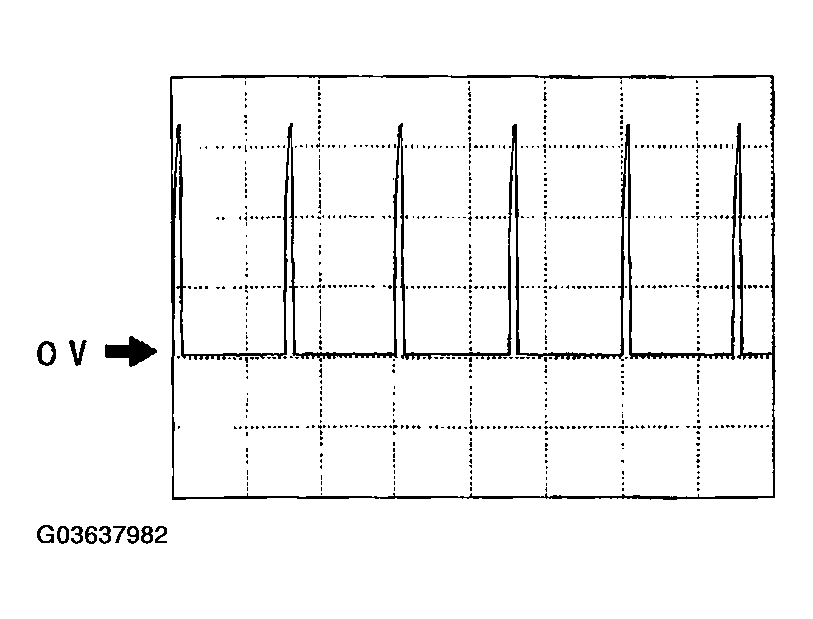

Fig 1: IGT Control Signal - Oscilloscope Graph

G03637982

Courtesy of MAZDA MOTORS CORP.

PCM terminal:
- 3F (+) <--> 4A (-)
- 3I (+) <--> 4A (-)
Oscilloscope setting: 1.0 V/DIV (Y), 50 ms/DIV (X), DC range
Vehicle condition: Idling after warm-up
