Joint Hose Installation Note

  1. Fit the joint hose onto the respective fittings within specification, and install clamps as shown.

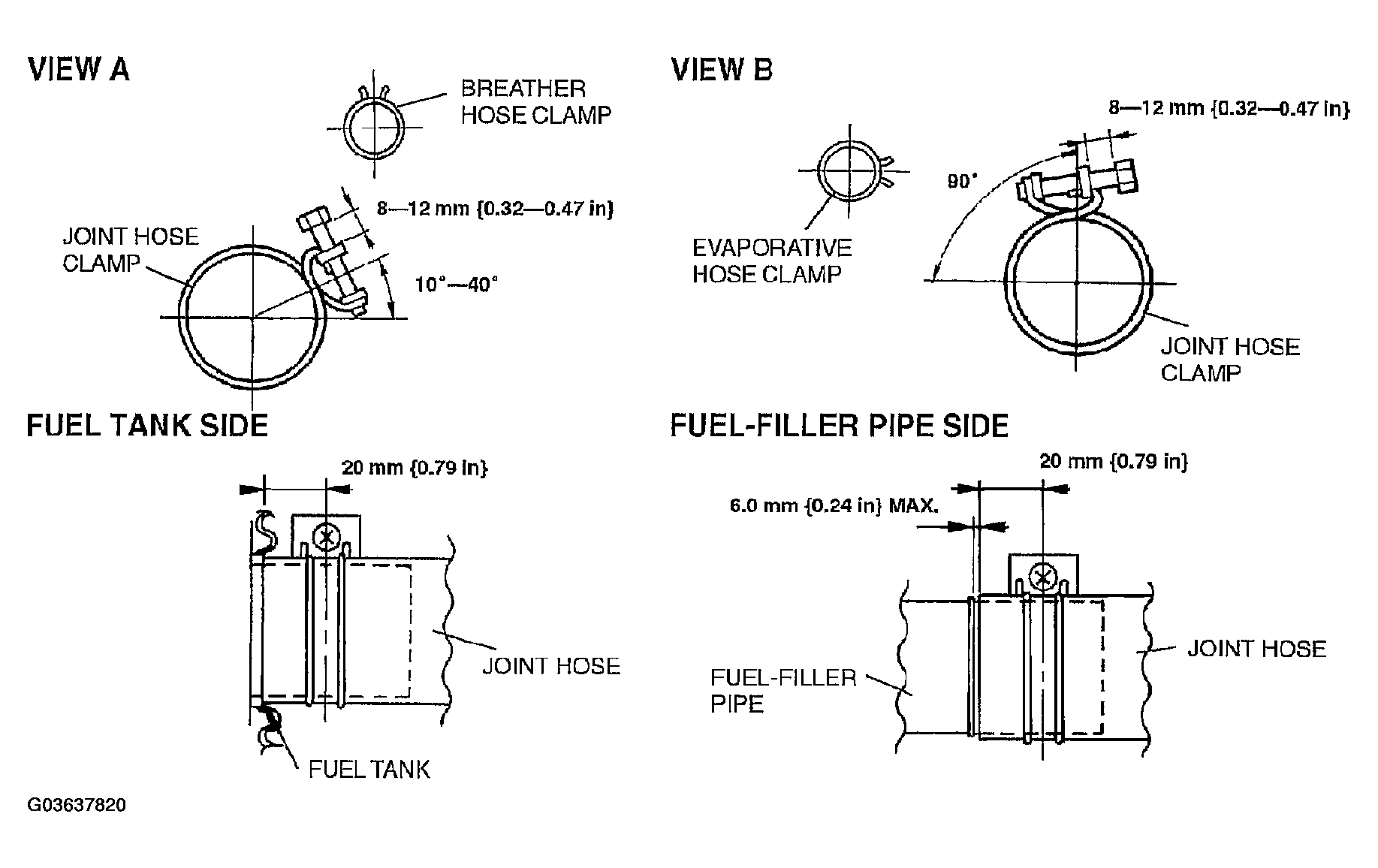

    Fig 1: Fitting Joint Hose Within Specification
    G03637820Courtesy of MAZDA MOTORS CORP.
