Normal Scan Data Values

PID/Data Monitor and Record Procedure

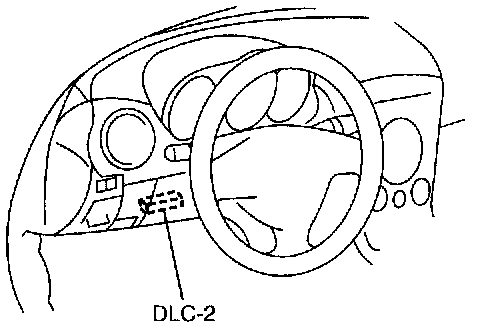

1. Connect WDS or equivalent to the vehicle DLC-2 connector.
2. Access and monitor PIDs using WDS or equivalent.

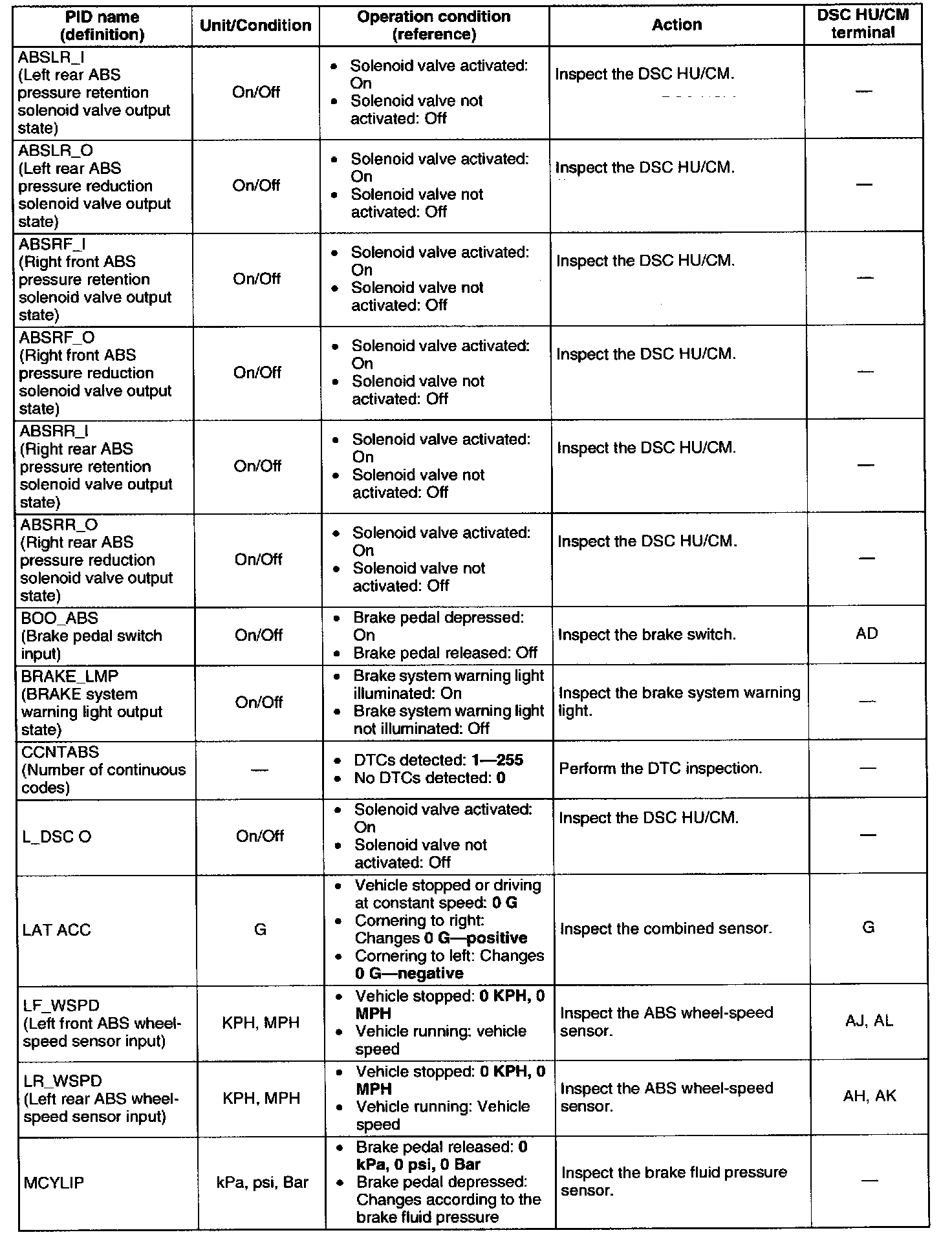

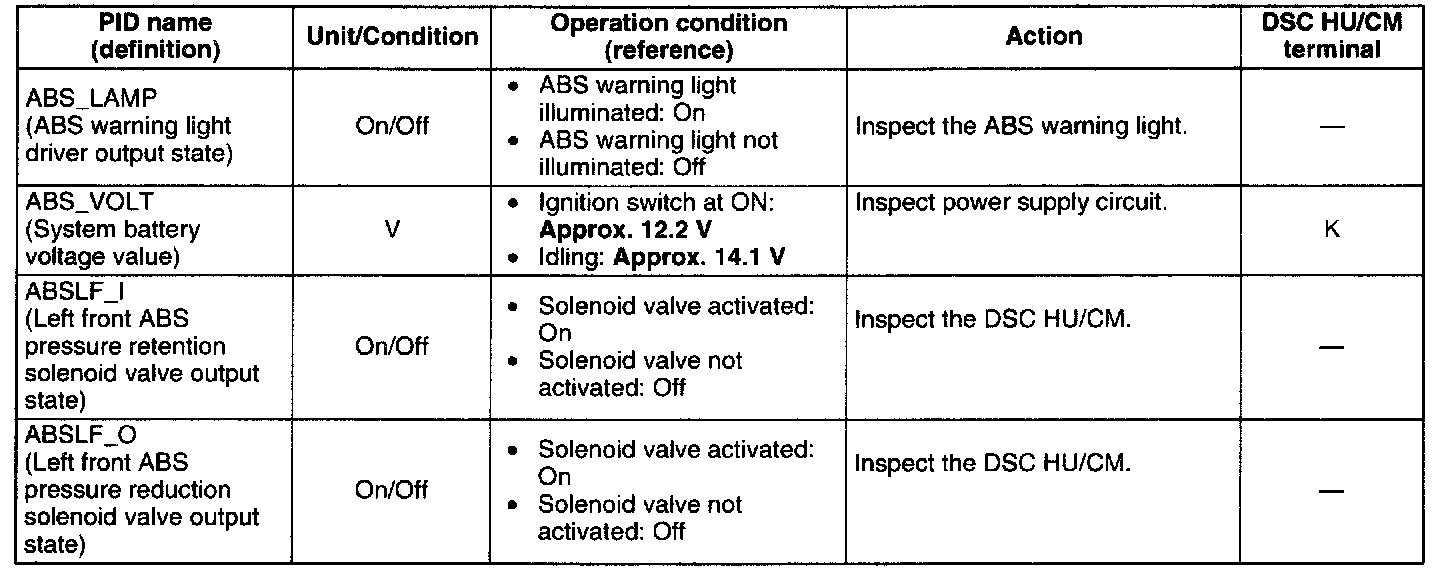

Part 1:

Part 2:

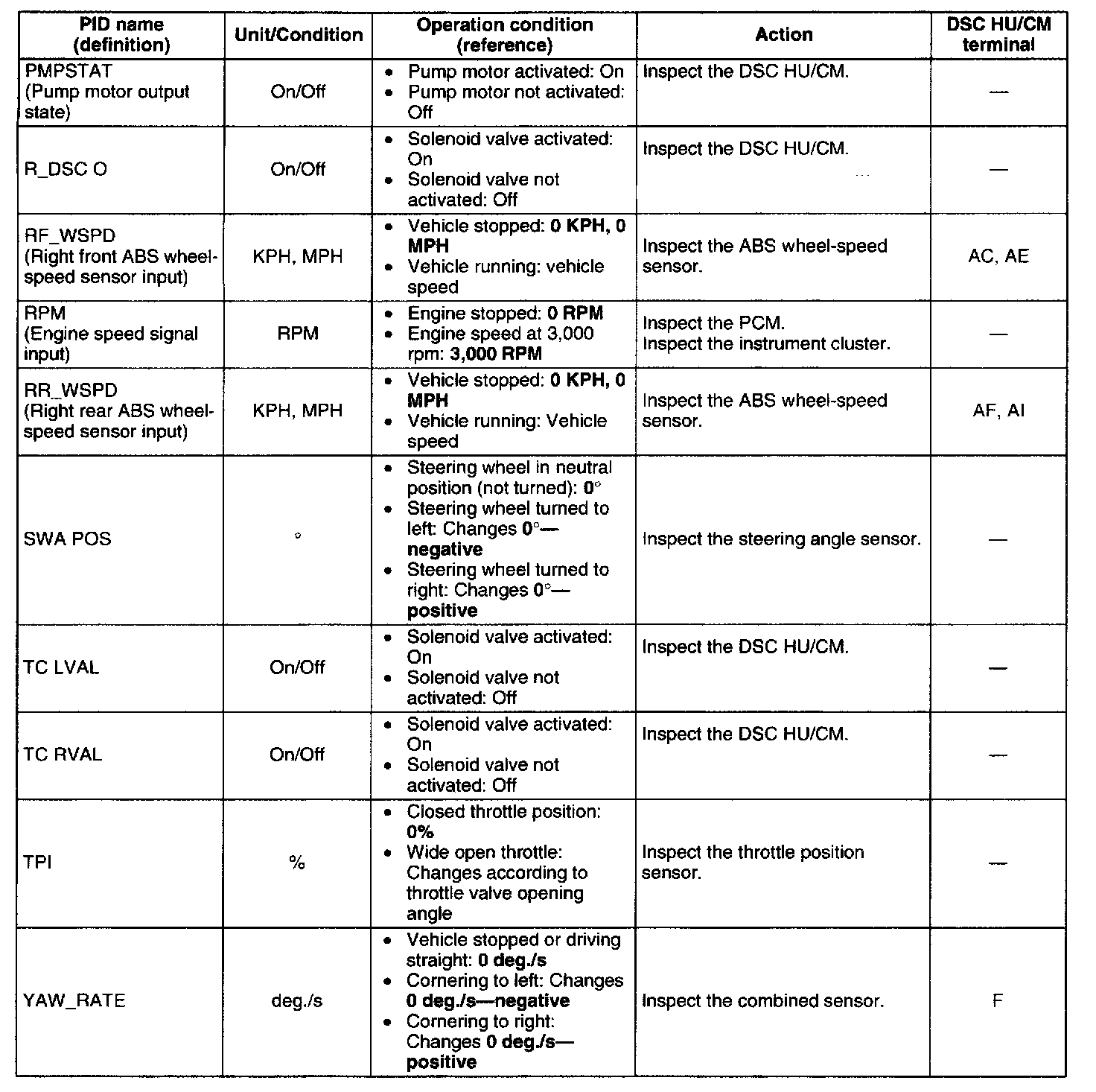

Part 3:

PID/DATA Monitor Table
