Tire Pressure Monitoring System (TPMS) Control Module Inspection

TIRE PRESSURE MONITORING SYSTEM (TPMS) CONTROL MODULE INSPECTION
1. Remove the TPMS control module.
2. Connect the TPMS control module connector.
3. Attach the tester lead to the underside of the control module connector and inspect the voltage and continuity according to the Terminal Voltage Table (Reference).

Note:
^ When inspecting for continuity, turn the ignition switch off and inspect with the TPMS control module connector disconnected.

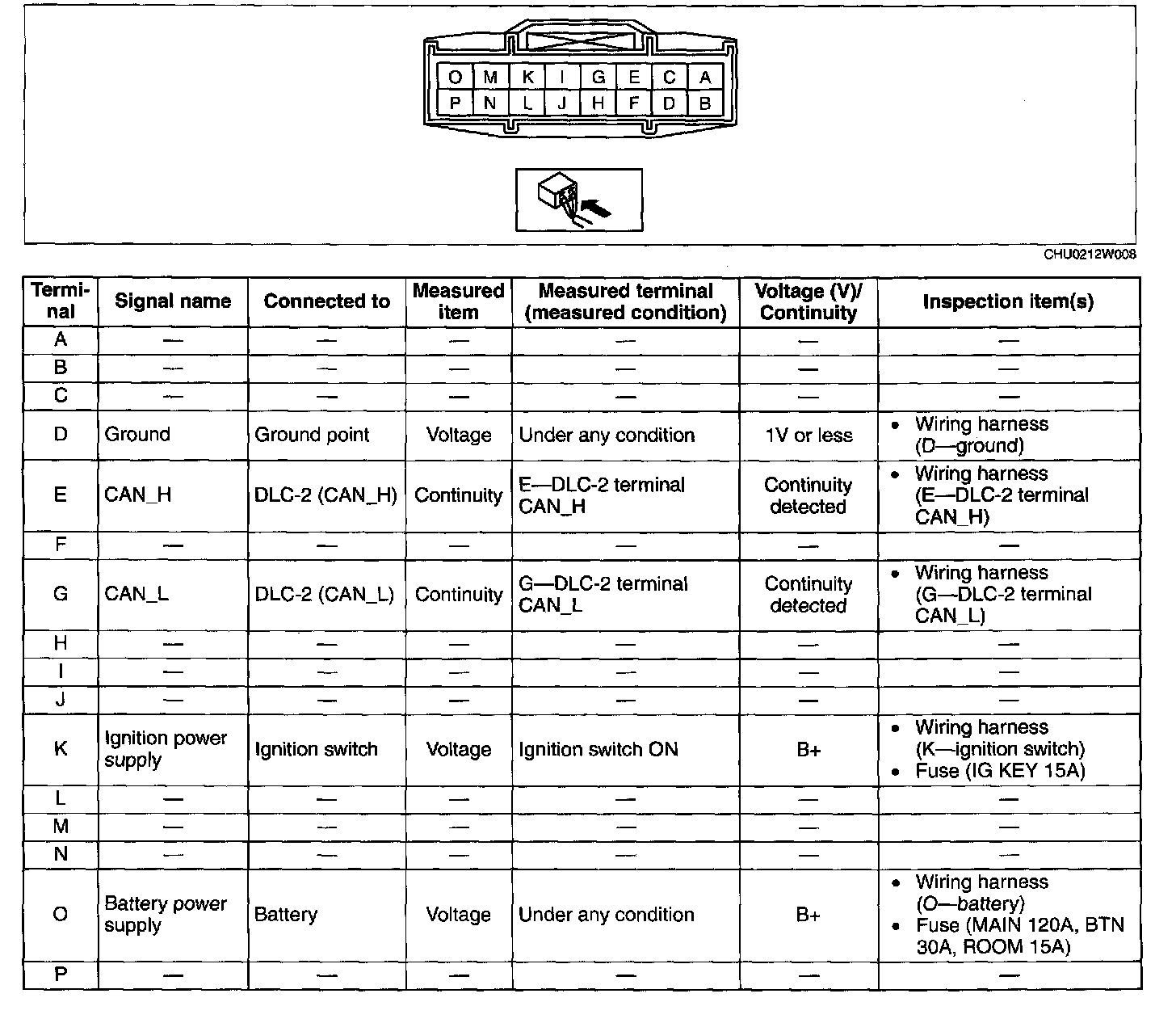

Terminal Voltage Table (Reference)
