PID/Data Monitor and Record Procedure

PID/DATA Monitor and Record Procedure

1. Perform the necessary vehicle preparation and visual inspection.

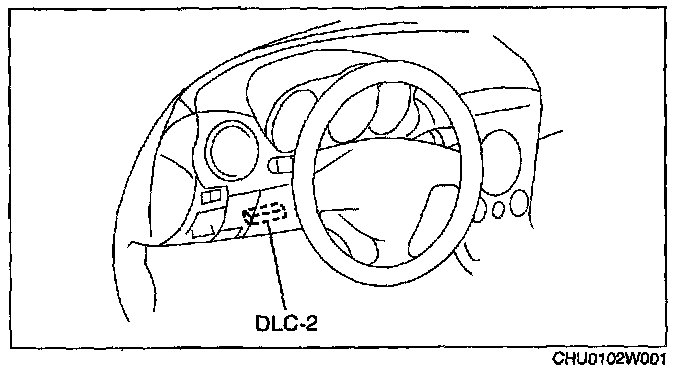

2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located in the driver compartment.
3. Access and monitor PIDs using the WDS or equivalent.
