Seat Temperature Control Module: Service and Repair

HEATED SEAT MODULE






Removal

NOTE:
- The power seat is shown, the manual seat is similar.
- The driver seat is shown, the passenger seat is similar.

1. Depower the SRS.
2. Remove the front seat.






3. Remove the heated seat module.

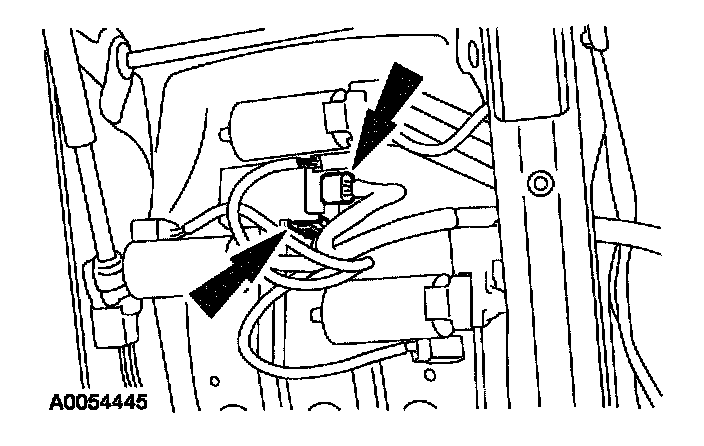

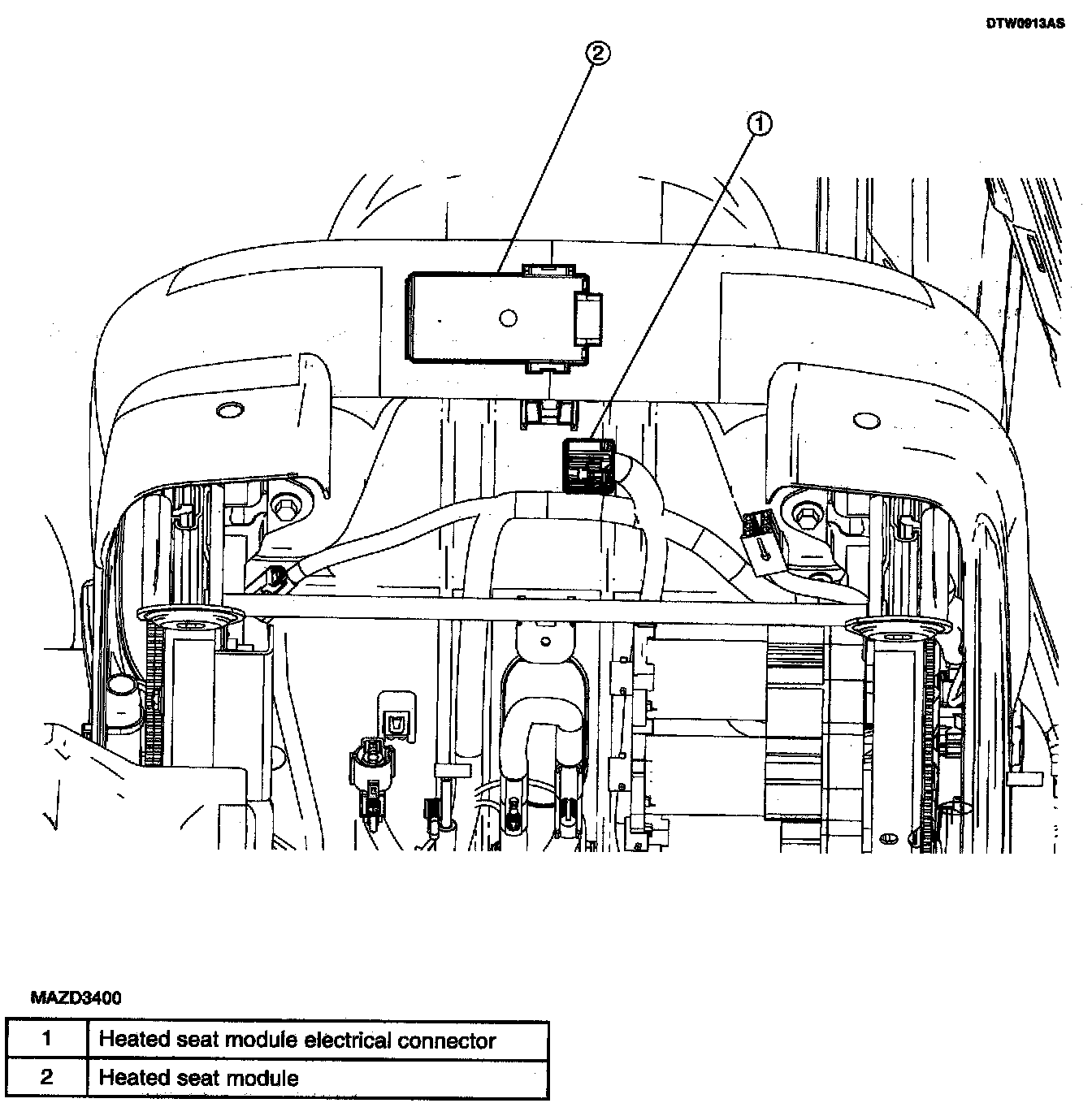

- Disconnect the electrical connector.
- Using a small flat-blade screwdriver, release the locking tab and slide the module off the attachment bracket.

Install






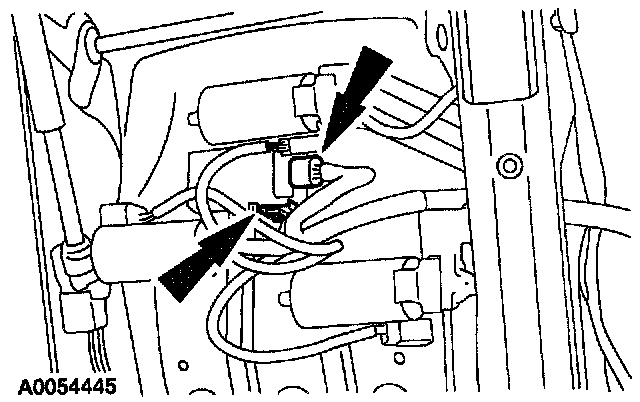

1. Install the heated seat module.
- Slide the heated seat module down over the attachment bracket until the locking tab snaps into place.
- Connect the electrical connector.

2. Install the front seat.
3. Repower the SRS.
