Cruise Control Switch: Service and Repair

SPEED CONTROL SWITCH

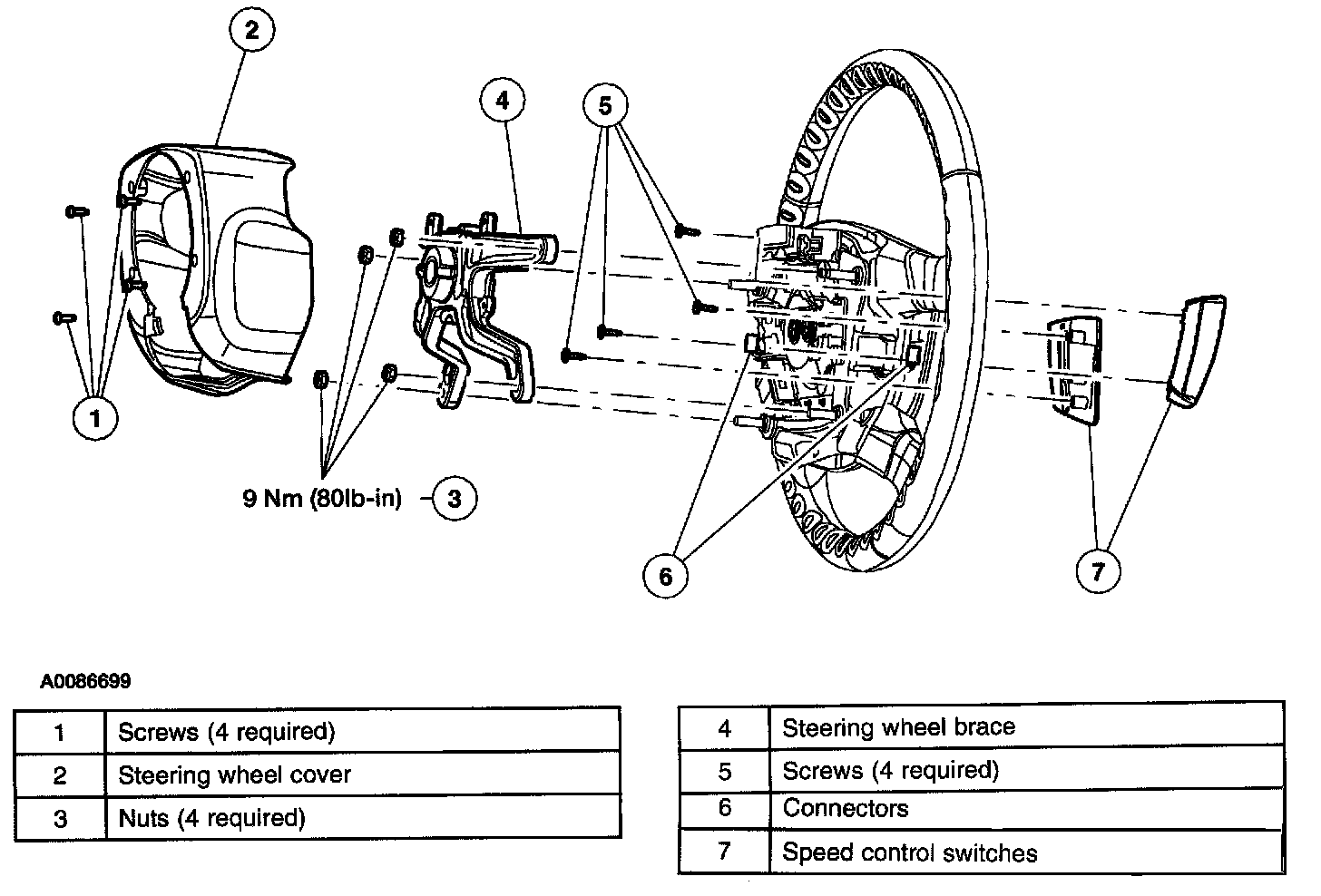

WARNING: When carrying a live air bag, make sure the bag and trim cover are pointed away from your body. In the unlikely event of an accidental deployment, the bag will then deploy with minimal chance of injury. Failure to follow these instructions may result in personal injury.

1. Remove the air bag module.

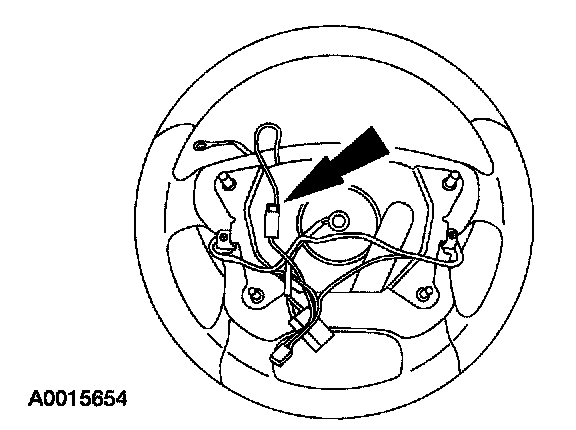

2. Disconnect the cruise control switches electrical connector.




3. Remove the cruise control switches.

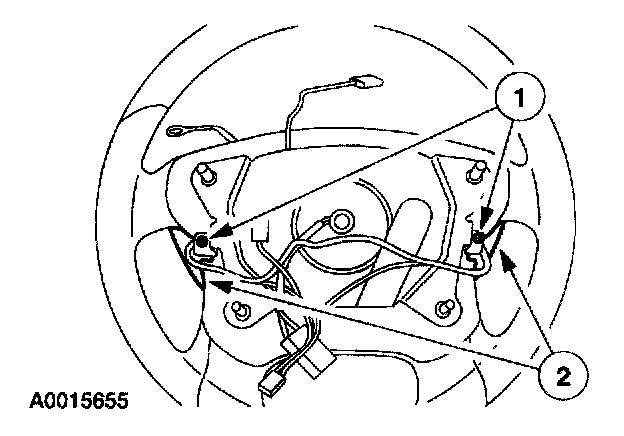

1. Remove the screws.
2. Remove the cruise control switches.

4. To install, reverse the removal procedure.
