Diagnostic Monitoring Test Results

DIAGNOSTIC MONITORING TEST RESULTS

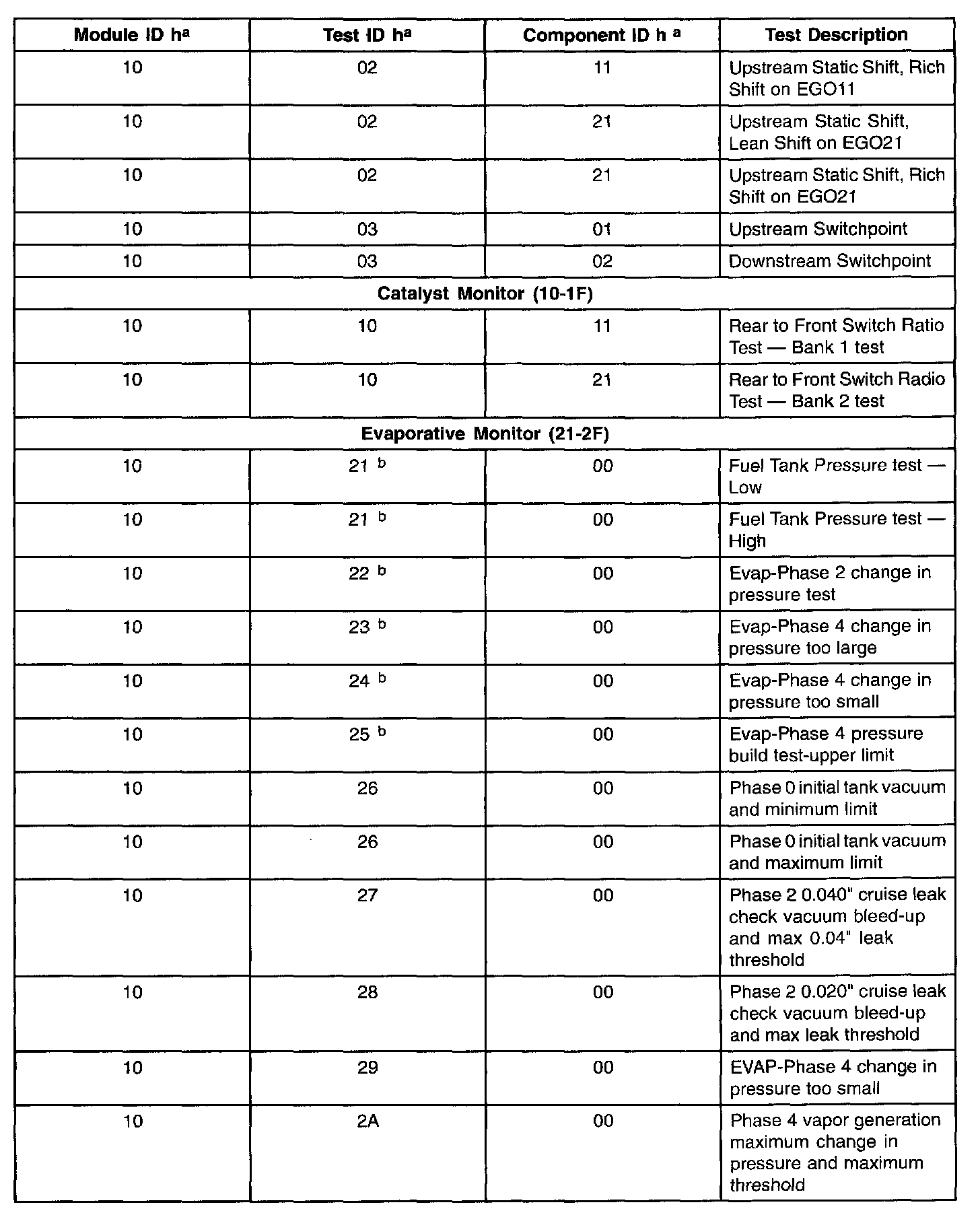

Diagnostic Monitoring Test Results Table Part 1:

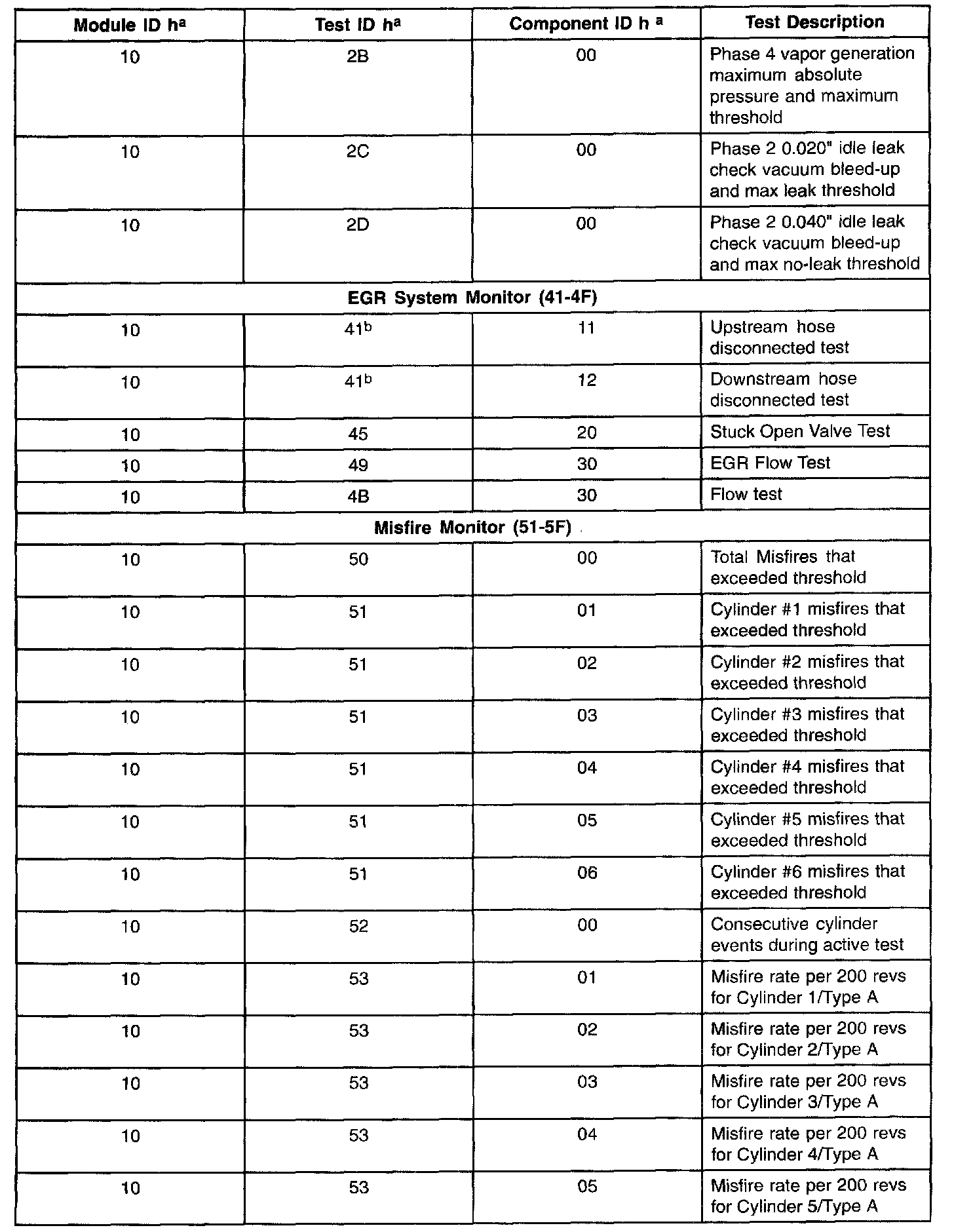

Diagnostic Monitoring Test Results Table Part 2:

Diagnostic Monitoring Test Results Table Part 3:

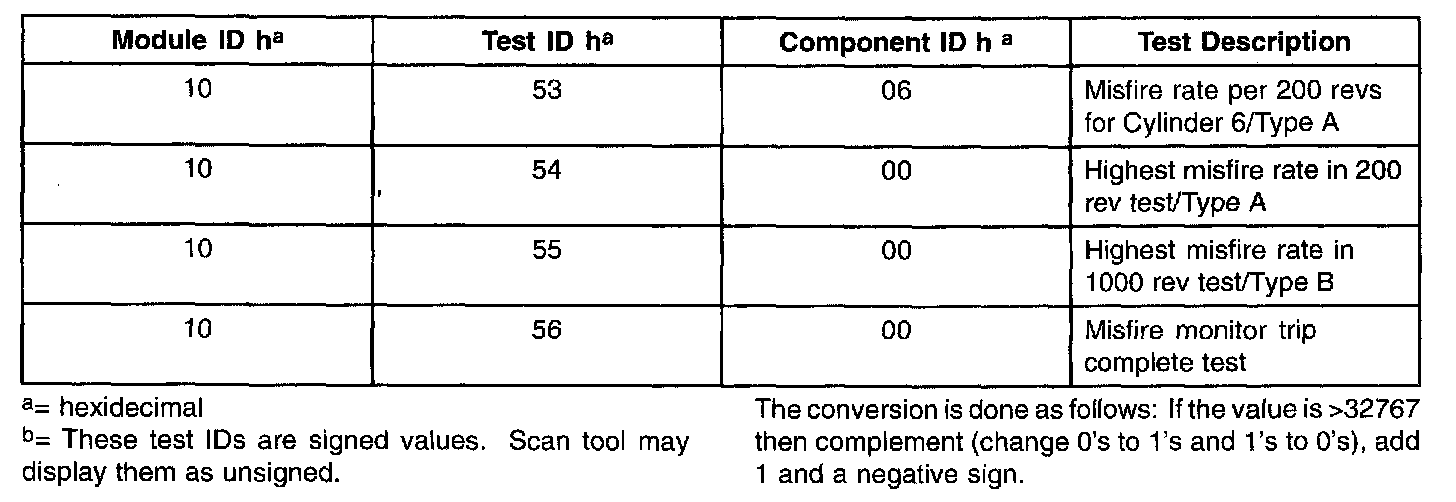

Diagnostic Monitoring Test Results Table Part 4:

The purpose of this test mode is to allow access to the results of OBD II monitor diagnostic test results. The test values that are stored at the time of the particular monitor completion are displayed when the particular test identification is requested. See the table for test information.

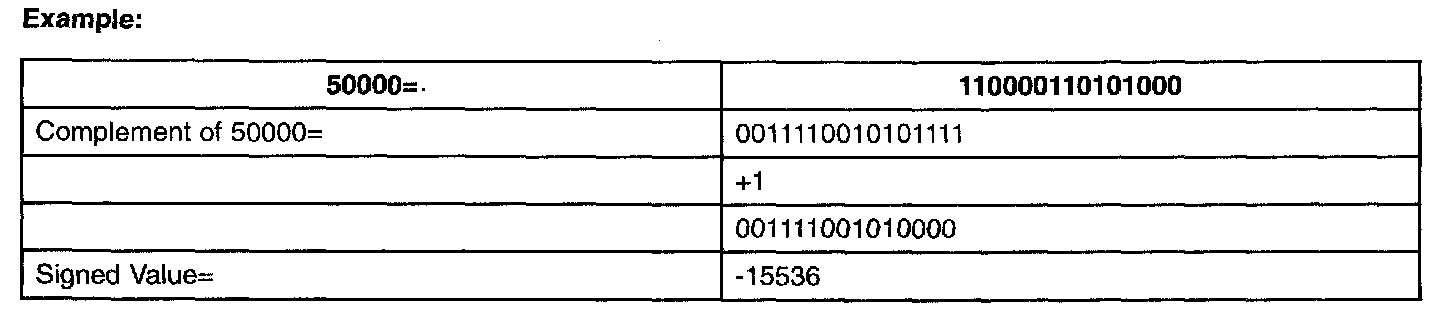

Example
