Symptom Troubleshooting Chart - Engine Driveability

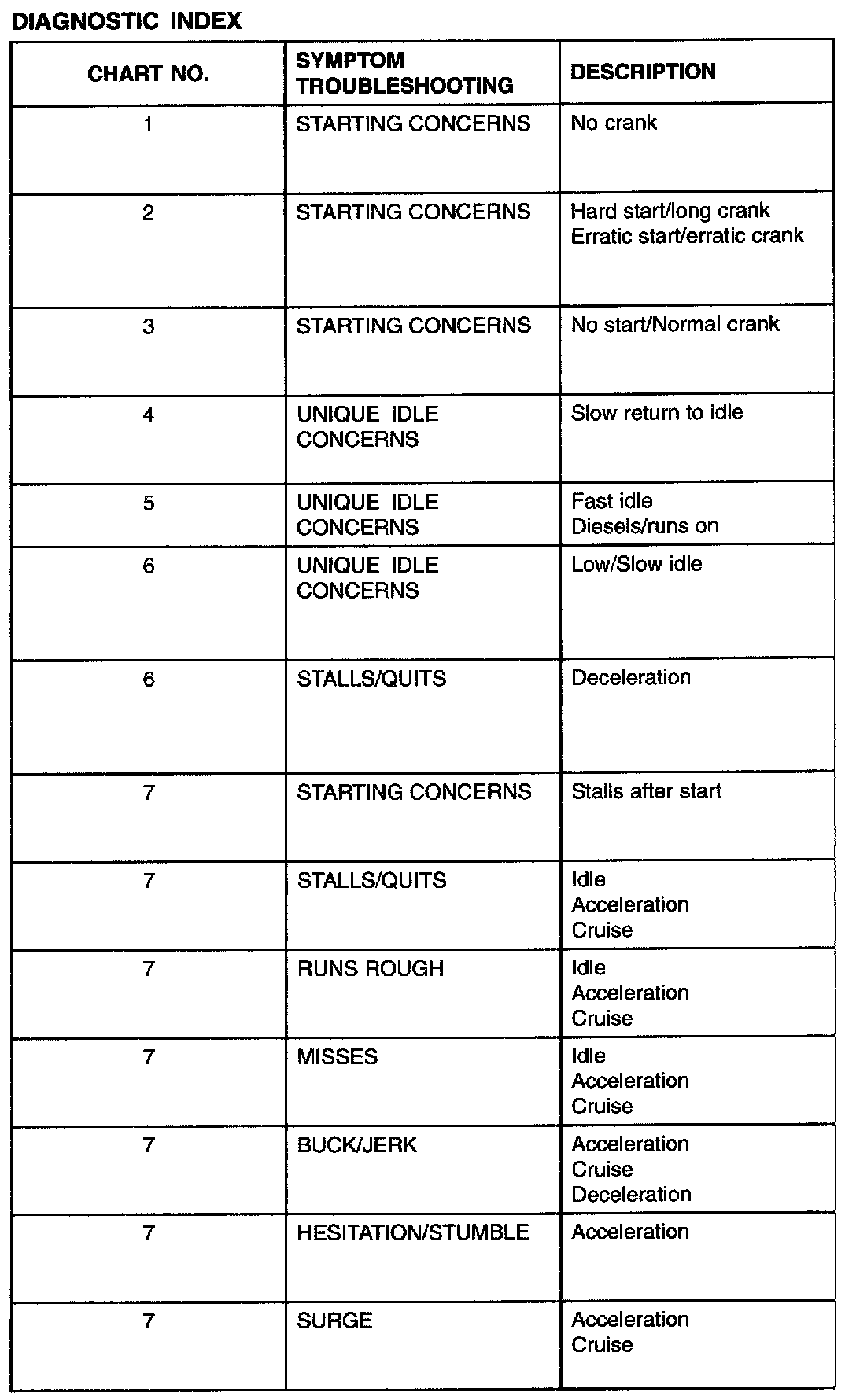

Diagnostic Index Part 1:

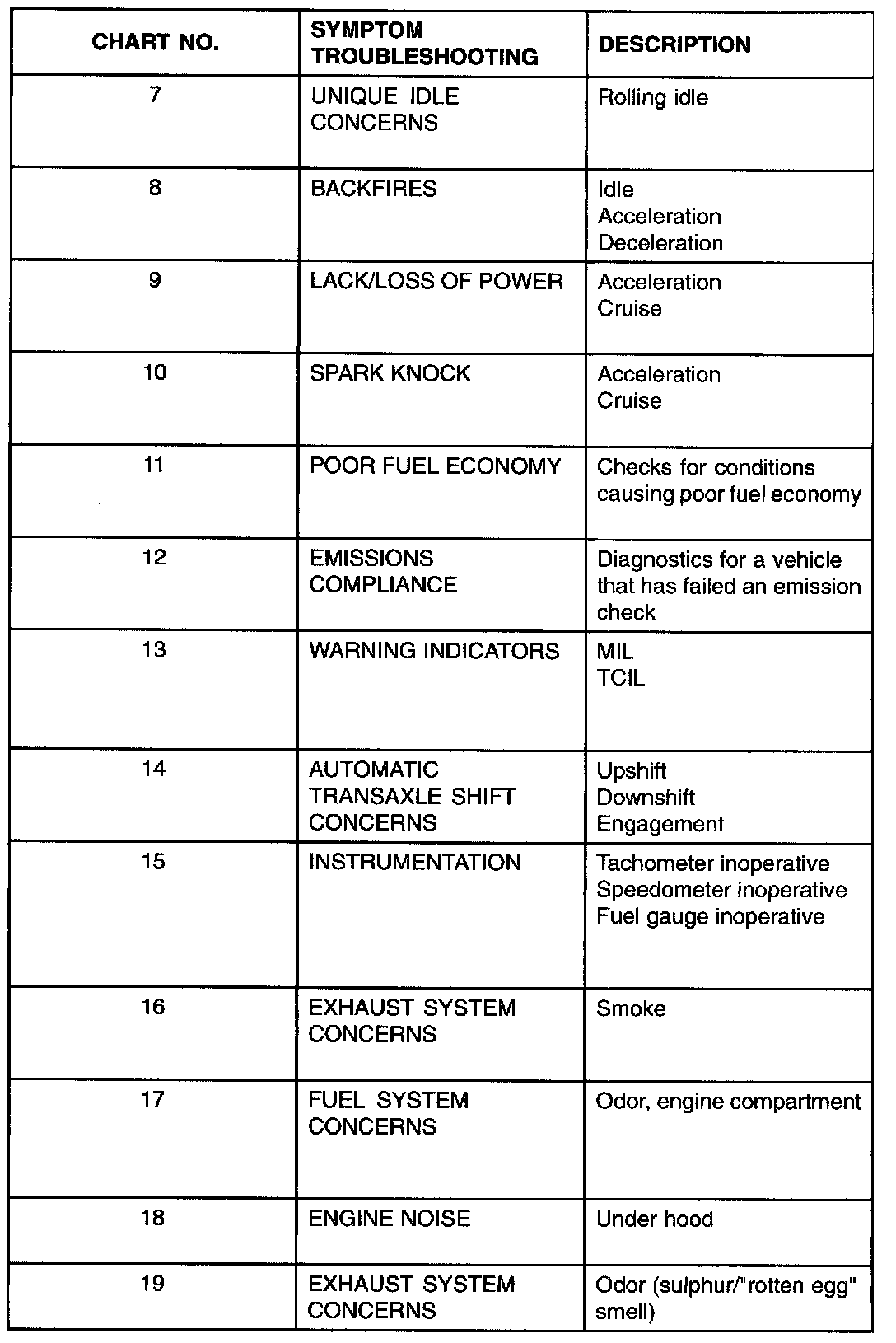

Diagnostic Index Part 2:
Diagnostic Index Part 3:
