Timing Cover

Timing Cover

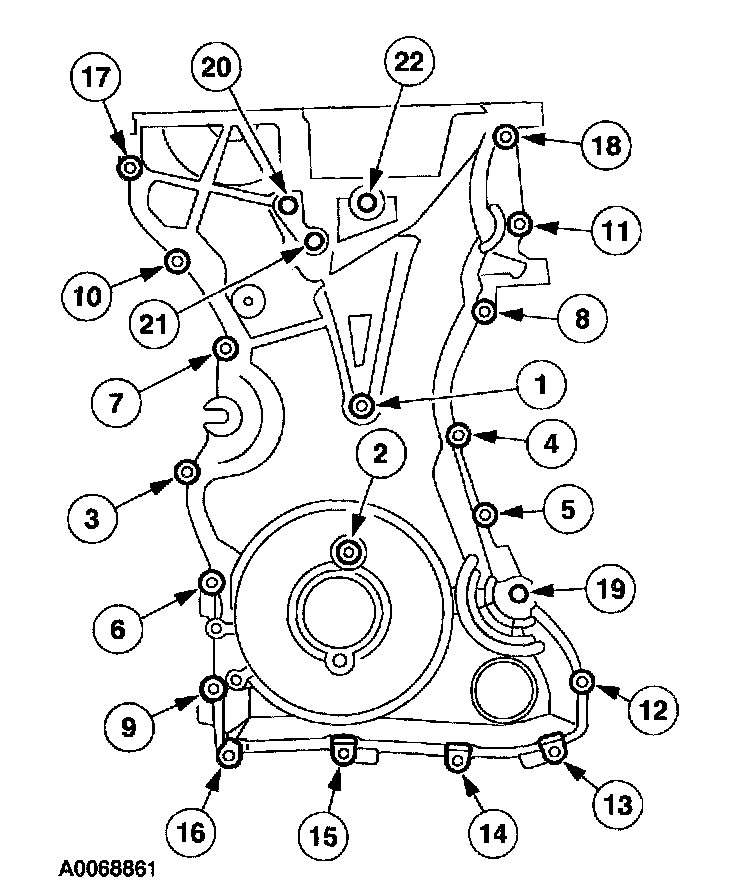

Tighten the bolts in the sequence shown, to the following specifications:
Tighten the 8 mm bolts to 10 Nm (1.0 kgf-m, 89 inch lbs.)
Tighten the 13 mm bolts to 48 Nm (4.9 kgf-m, 35 ft. lbs.)
