Crankshaft Position (CKP) Sensor - 2.3L: Notes

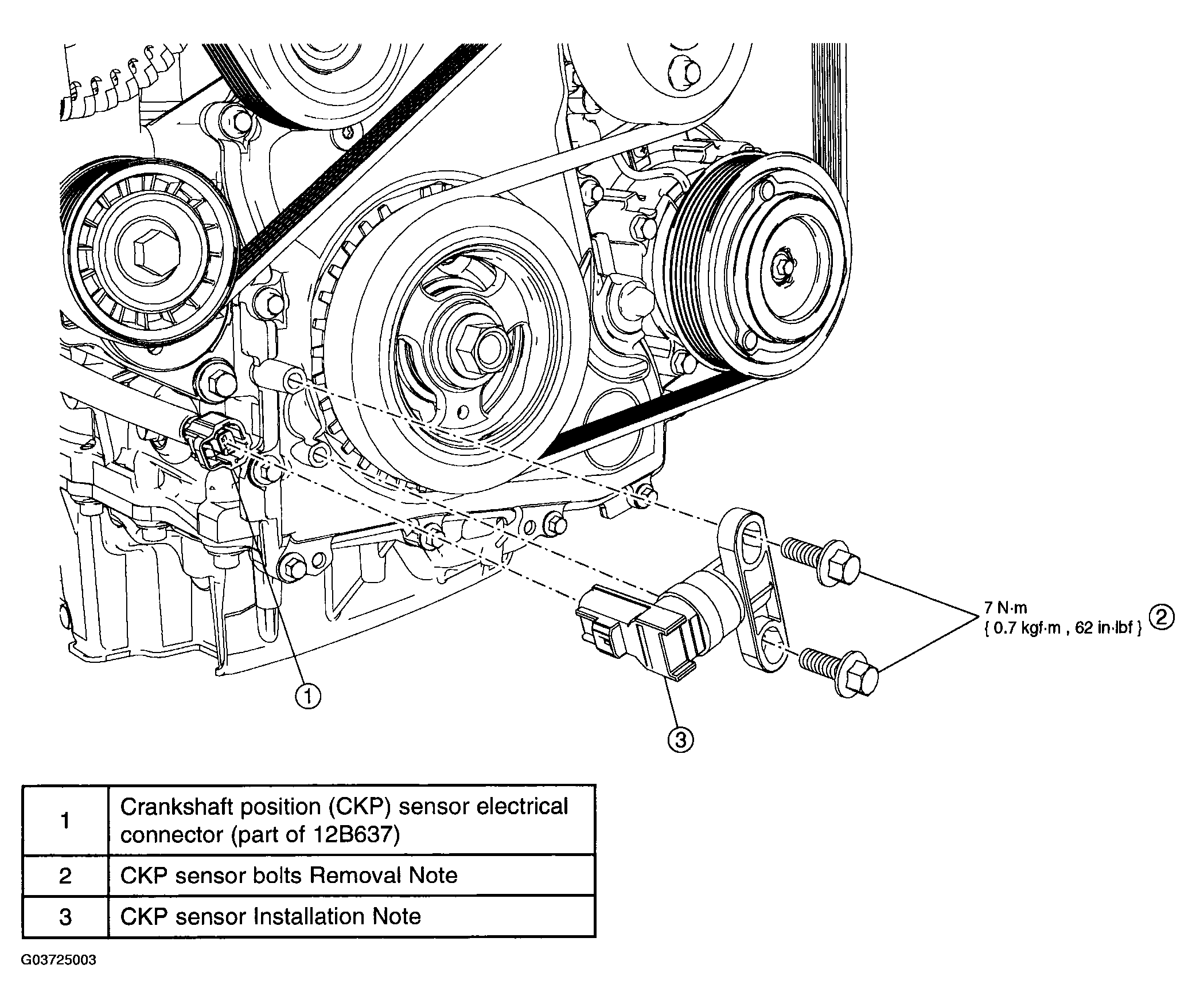

Fig 1: Removing Crankshaft Position (CKP) Sensor & Torque Specifications - 2.3L
G03725003Courtesy of MAZDA MOTORS CORP.
