Mass Air Flow (MAF) Sensor - 3.0L (4V): Notes

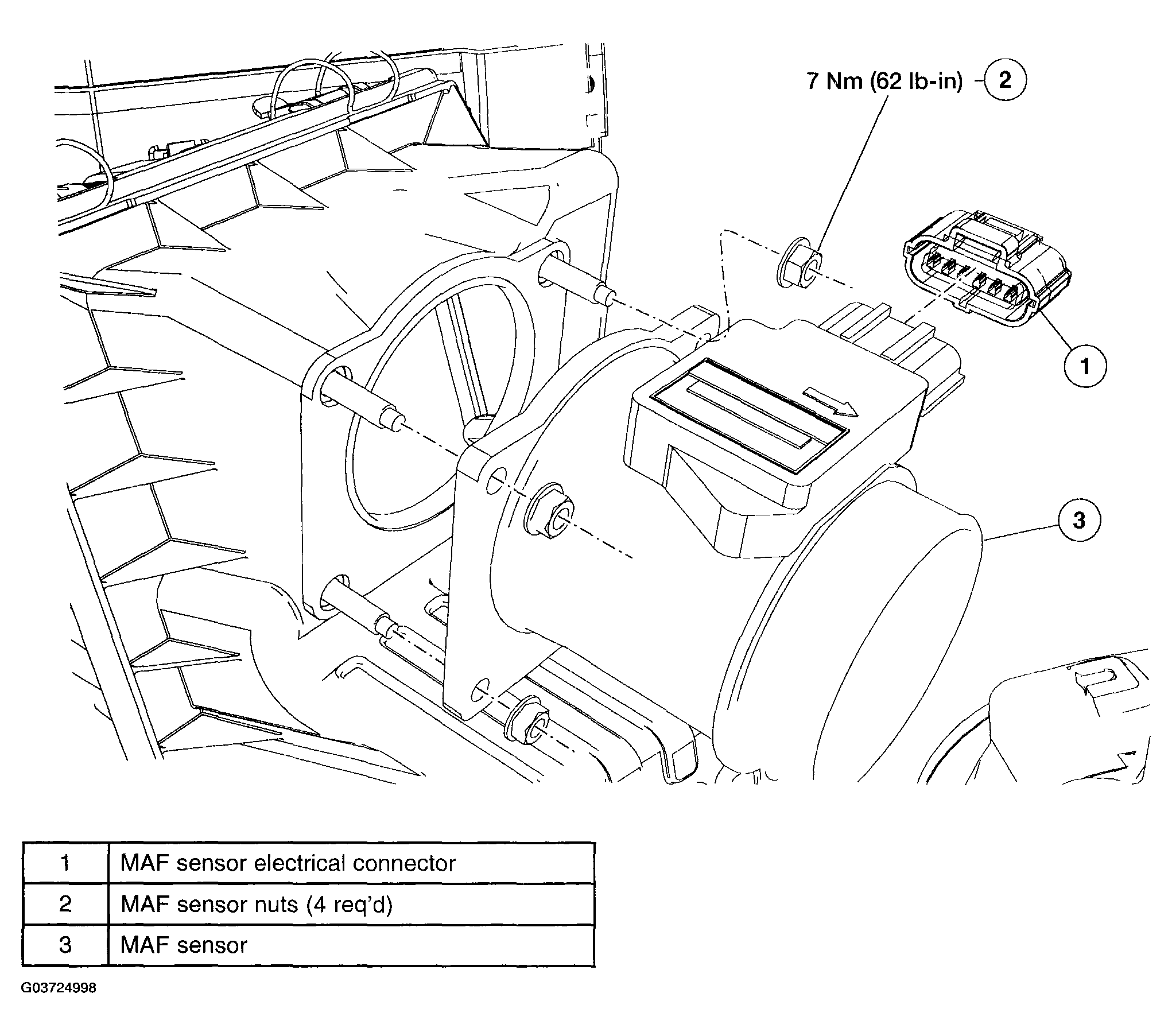

Fig 1: Removing/Installing Mass Air Flow Sensor & Torque Specifications - 3.0L (4V)

Courtesy of MAZDA MOTORS CORP.

CAUTION:

The mass air flow (MAF) sensor electronics module and body are calibrated as a unit and must be serviced as a unit. Do not tamper with the sensing elements located in the air flow bypass of the MAF body.
