Quick Release Coupling - Locking Tab: Connect
- Clean and inspect the fitting and the tube for damage. Remove any foreign material or obstructions.
NOTE:
- Make sure the collar on the fuel tube is fully inserted into the quick connect coupling before the locking tab is locked.
NOTE:
- Apply clean engine oil to the end of the tube before inserting it into the connector.
- Connect the fuel or vapor tube quick connect coupling.

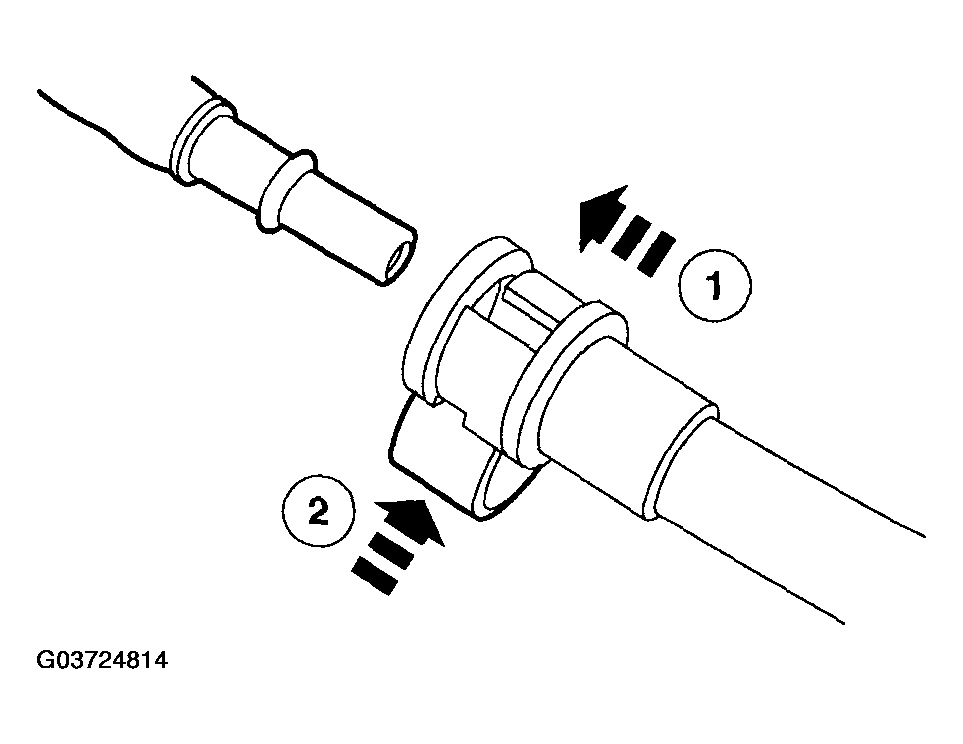

- Connect the quick connect coupling to the tube.
- Press the quick connect coupling locking tab into position.
Courtesy of MAZDA MOTORS CORP.
- Pull on the connection to make sure it is fully engaged.
- Connect the battery ground cable. For additional information see
BATTERY DISCONNECT
.
