Crankshaft Position (CKP) Sensor - 2.3L: Removal

Disconnect the negative battery cable. See BATTERY DISCONNECT .
With the vehicle in NEUTRAL, position on a hoist.
Disconnect the CKP electrical connector.

Fig 1: Disconnecting CKP Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Remove the plug.

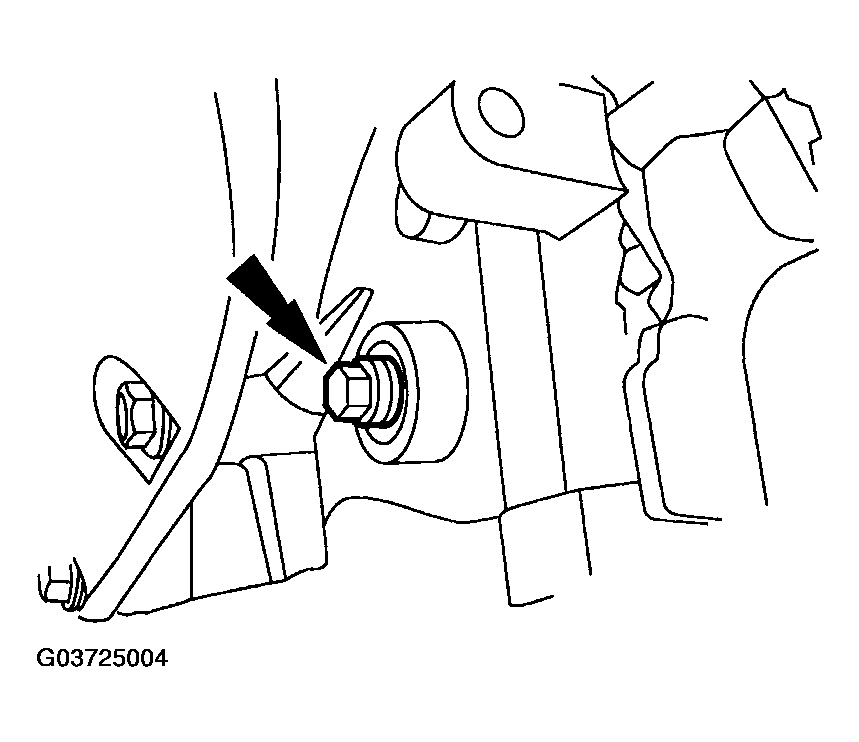

Fig 2: Removing Plug
Courtesy of MAZDA MOTORS CORP.
Turn the crankshaft pulley bolt to position the number one cylinder at top dead center and install the special tool.
Remove the CKP sensor bolts and the CKP sensor.

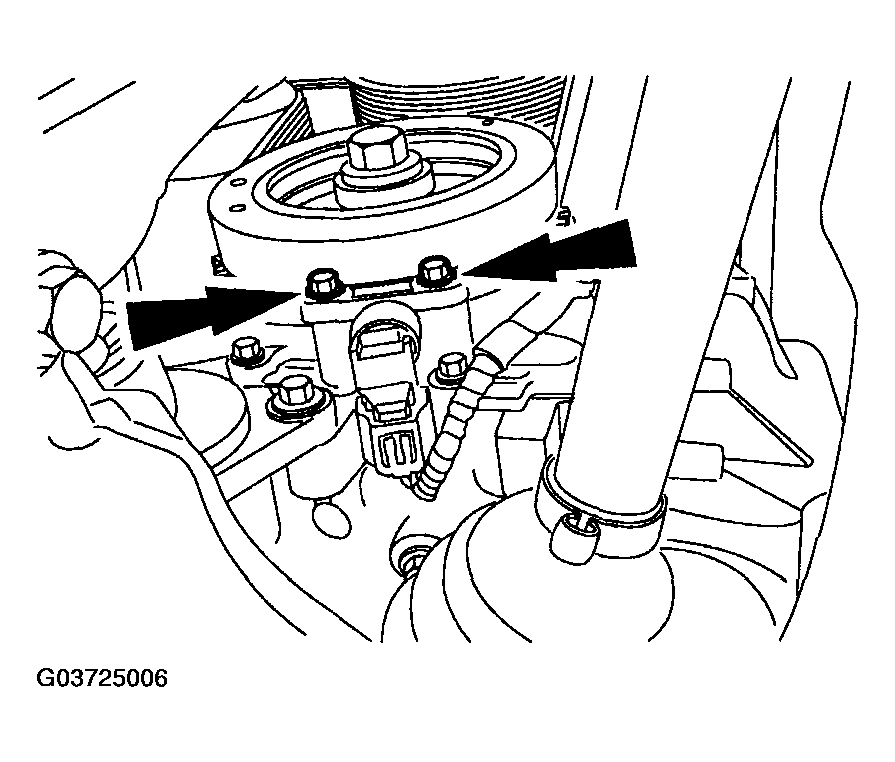

Fig 3: Removing CKP Sensor
Courtesy of MAZDA MOTORS CORP.
