Powertrain Control Module (Pcm): Notes

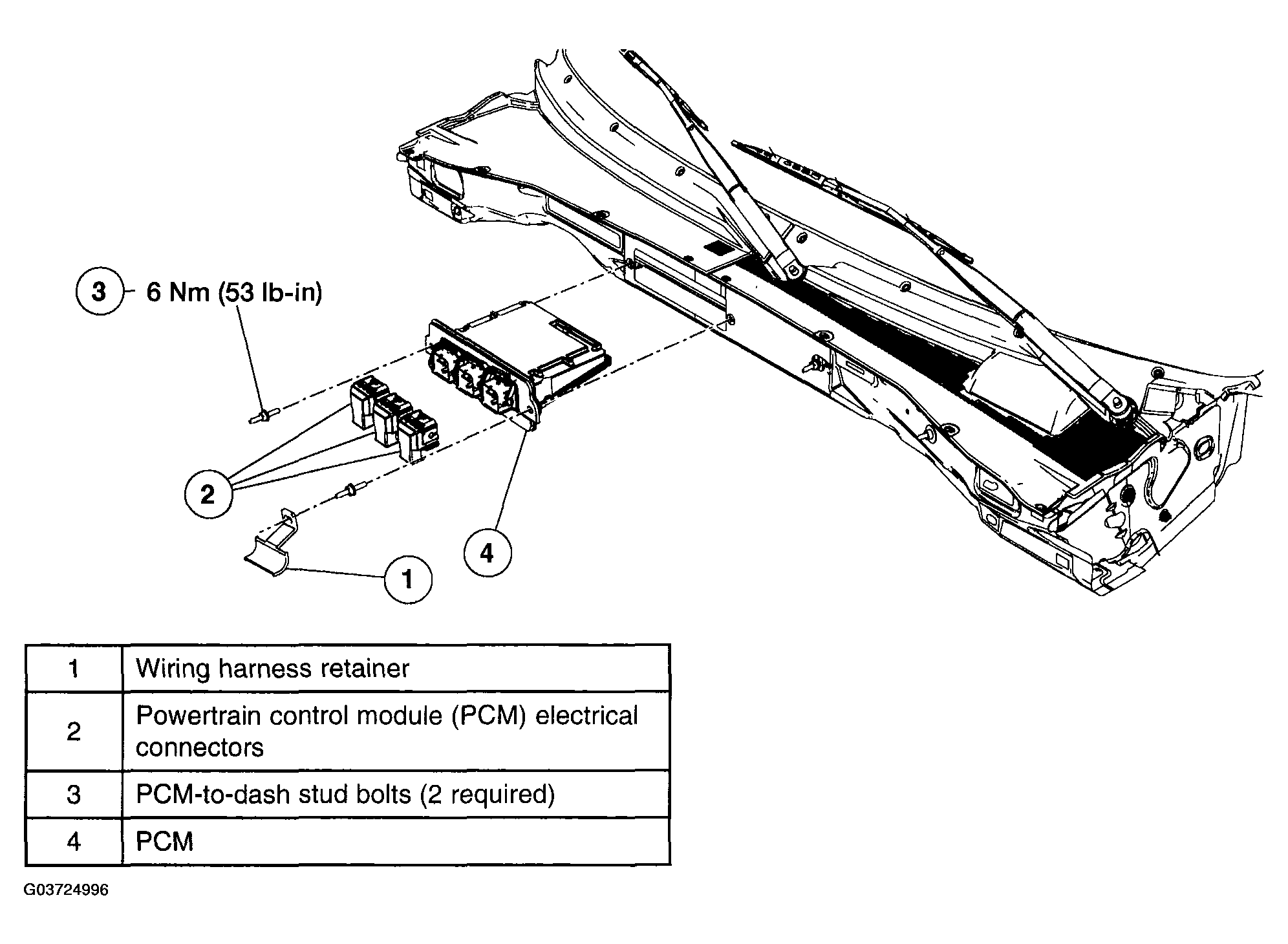

Fig 1: Removing/Installing Powertrain Control Module & Torque Specifications
G03724996Courtesy of MAZDA MOTORS CORP.
