Inertia Fuel Shutoff (Ifs) Switch: Notes

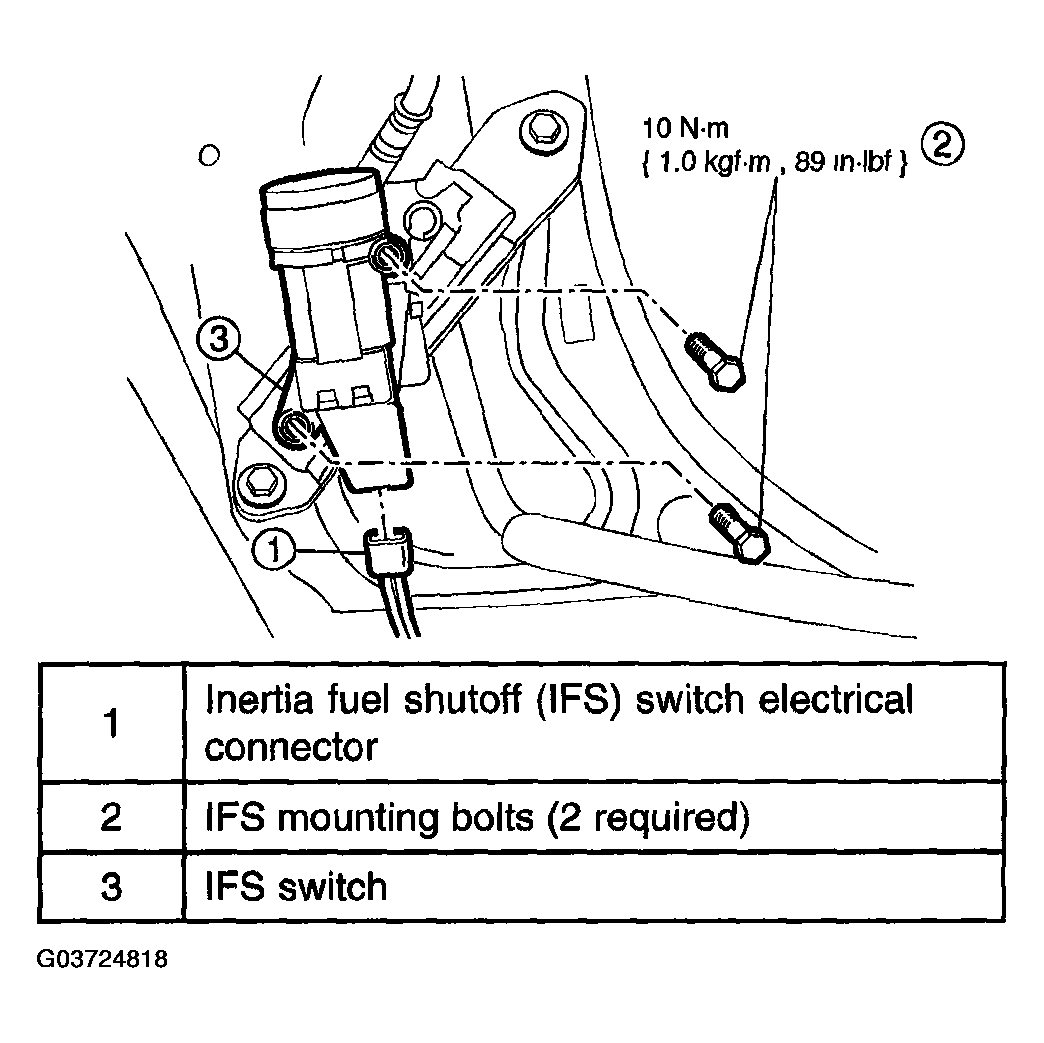

Fig 1: Inertia Fuel Shutoff Switch With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
