Pinpoint Test 10: Flash Code 2 - Stop Switch Circuit Failure

PINPOINT TEST 10: FLASH CODE 2 - STOP SWITCH CIRCUIT FAILURE

PINPOINT TEST 10		FLASH CODE 2 - STOP LAMP SWITCH CIRCUIT FAILURE
STEP	INSPECTION		ACTION
1	CHECK THE STOP LAMP OPERATION Apply and release the brake pedal while observing the stoplamps. Do the stop lamps operate correctly?	Yes	GO to the next step.
		No	See SYMPTOM TROUBLESHOOTING CHART -- STOP LAMPS to continue diagnosis of the stop lamps.
2	CHECK THE STOP LAMP BULBS Check the stop lamps for the presence of aftermarket LED lights. Are the correct stop lamp bulbs installed?	Yes	GO to the next step.
		No	INSTALL the correct stop lamp bulbs. TEST the system for normal operation.

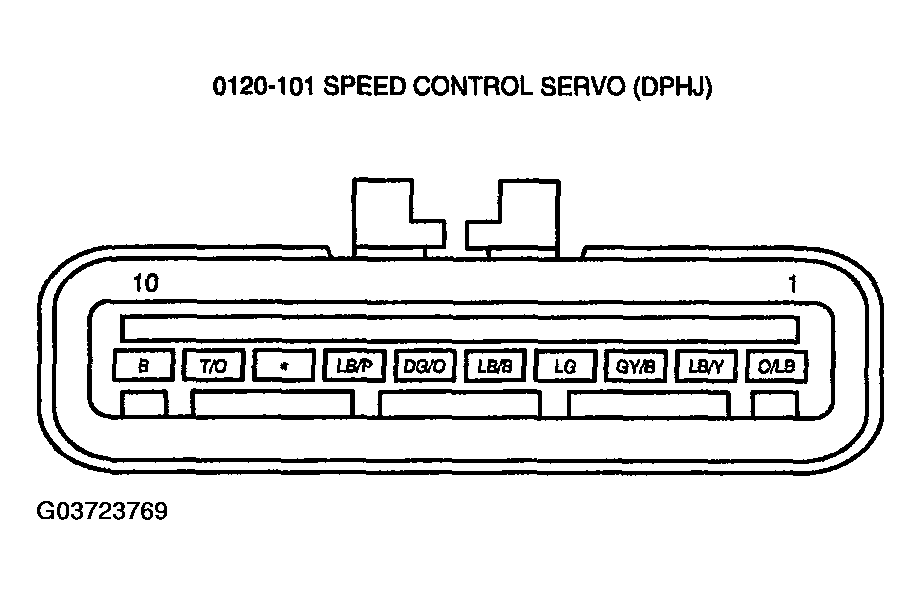

3	CHECK CIRCUIT (LG) FOR AN OPEN While applying the brake pedal, measure the resistance between the cruise control actuator 0120-101 pin 4, circuit (LG), harness side and ground. Is the resistance less than 5 ohms?	Yes	INSTALL a new cruise control actuator. See SPEED CONTROL ACTUATOR . REPEAT the self-test.
		No	REPAIR the circuit. REPEAT the self-test.
