Pinpoint Test 7: Flash Code 3 - DEACTIVATOR Switch Circuit Failure

PINPOINT TEST 7: FLASH CODE 3 - DEACTIVATOR SWITCH CIRCUIT FAILURE

PINPOINT TEST 7 FLASH CODE 3 - SPEED CONTROL DEACTIVATOR SWITCH CIRCUIT FAILURE
STEP INSPECTION ACTION
1 CHECK THE SPEED CONTROL DEACTIVATOR SWITCH INPUT TO THE SPEED CONTROL ACTUATOR

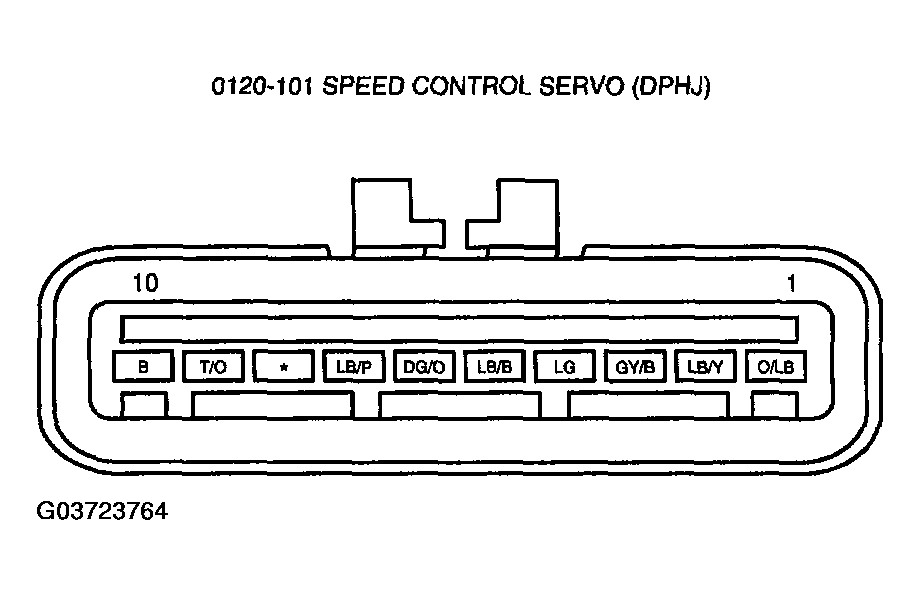

Disconnect the speed control actuator 0120-101.
Key ON.
Measure the voltage between the cruise control actuator 0120-101 pin 9, circuit (T/O), harness side and ground.
Is the voltage greater than 10 volts?
Yes INSTALL a new cruise control actuator.
See SPEED CONTROL ACTUATOR . REPEAT the self-test.
No GO to the next step.
2 CHECK THE SPEED CONTROL DEACTIVATOR SWITCH
Key OFF.

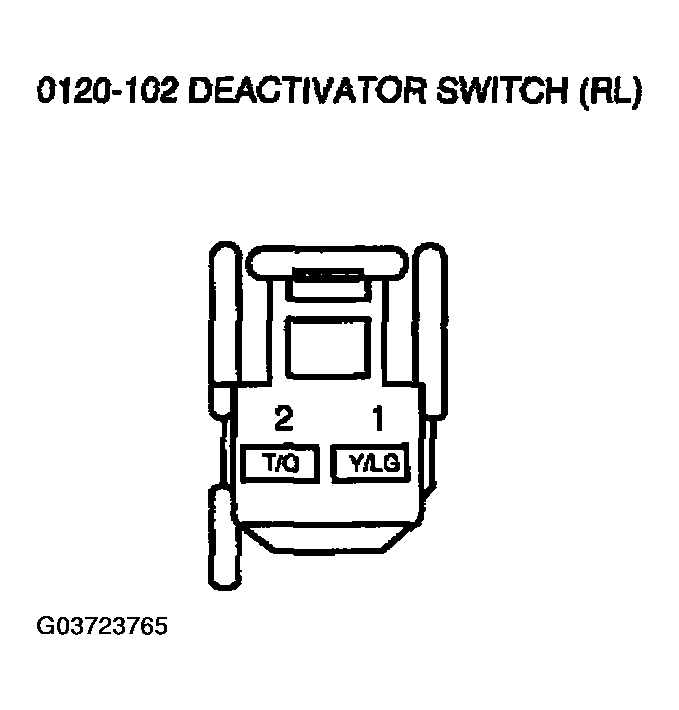

Disconnect the speed control deactivator switch 0120-102.
Measure the resistance between the cruise control deactivator switch terminal 1, and the cruise control deactivator switch terminal 2, component side.
Is the resistance less than 5 ohms?
Yes GO to the next step.
No INSTALL a new cruise control deactivator switch.
See SPEED CONTROL DEACTIVATOR SWITCH . REPEAT the self-test.
3 CHECK THE SPEED CONTROL DEACTIVATOR SWITCH VOLTAGE
Key ON.
Measure the voltage between the cruise control deactivator switch 0120-102 pin 1, circuit (Y/LG), harness side and ground.
Is the voltage greater than 10 volts?
Yes REPAIR circuit (T/O). REPEAT the self-test.
No GO to the next step.
4 CHECK CIRCUITS (Y/LG) AND (GY/Y) FOR AN OPEN
Key OFF.
Disconnect the SJB J-2280d Measure the resistance between the cruise control deactivator switch 0120-102 pin 1, circuit (Y/LG), harness side and the SJB J-2280d pin 29, circuit (GY/Y), harness side.
Is the resistance less than 5 ohms?
Yes GO to the next step.
No REPAIR the circuit. REPEAT the self-test.
5 CHECK FOR CORRECT SJB OPERATION
Disconnect all the SJB connectors.
Check for:
  • corrosion
  • pushed-out pins

Connect all the SJB connectors and make sure they seat correctly.
Operate the system and verify the concern is still present.
Is the concern still present?
Yes INSTALL a new SJB. REPEAT the self-test.
No The system is operating correctly at this time.
The concern may have been caused by a loose or corroded connector.
