Front Toe Adjustment

Start the engine and center the steering wheel.

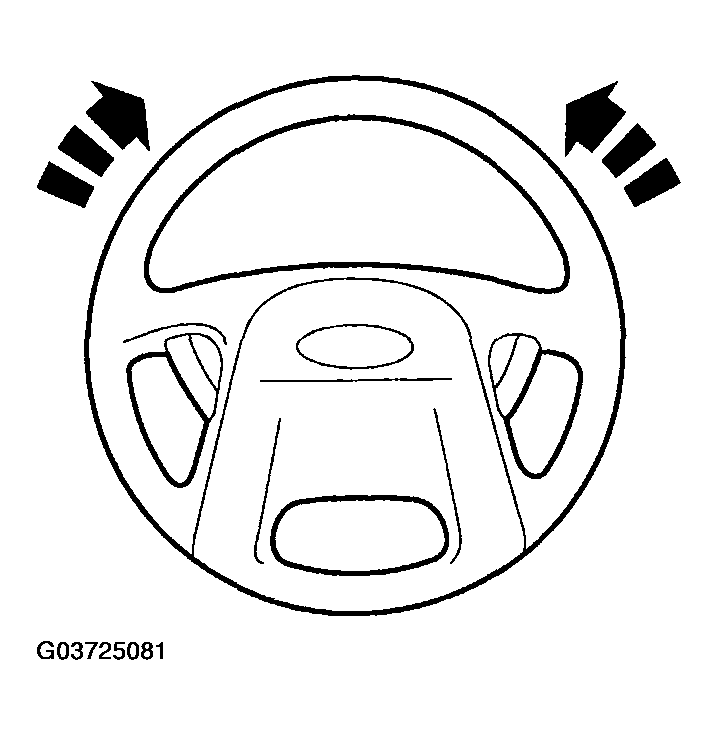

Fig 1: Centering Steering Wheel
Courtesy of MAZDA MOTORS CORP.
Turn the engine off, and lock the steering wheel in position.
Check the toe settings. Follow the equipment manufacturer's instructions.
NOTE:
- Do not allow the steering gear bellows to twist when the front wheel spindle tie rod is rotated.
Remove the clamps.

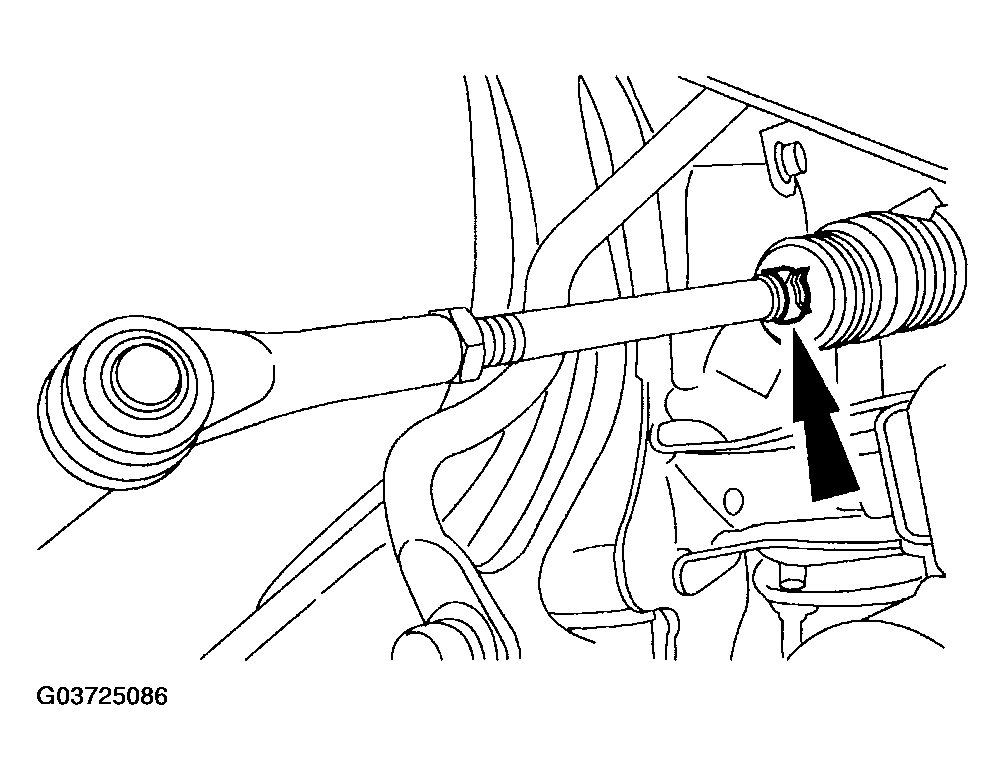

Fig 2: Removing Clamps
Courtesy of MAZDA MOTORS CORP.
Loosen the nuts.
- Clean and lubricate the nut(s) and front wheel spindle tie rod threads.

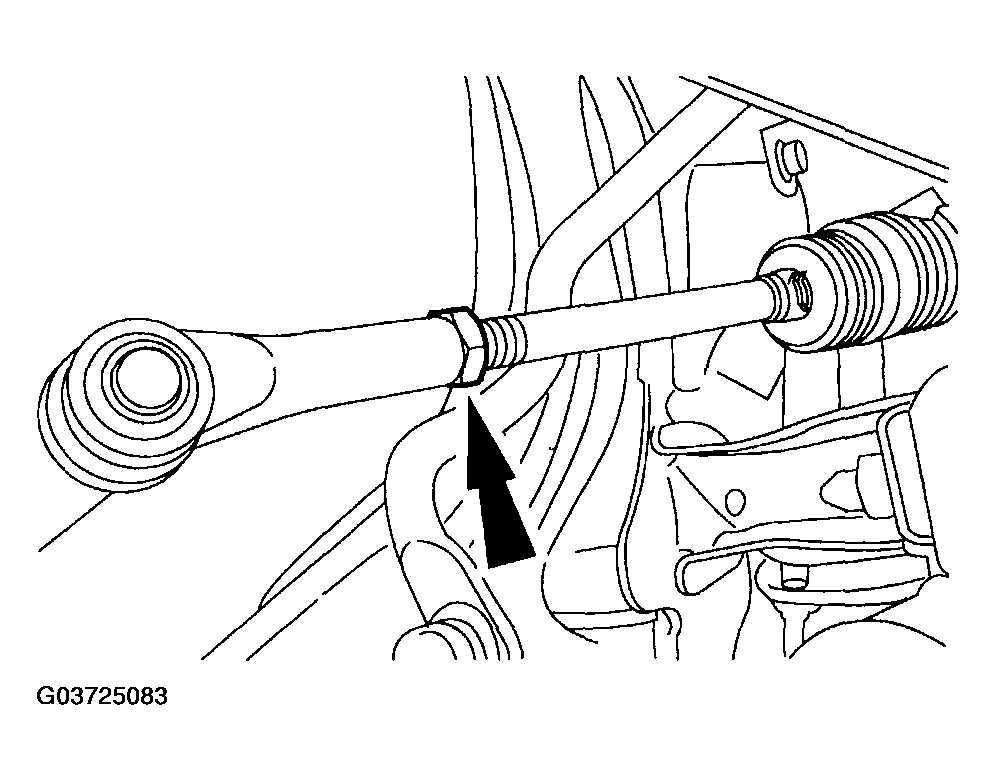

Fig 3: Loosening Nuts
Courtesy of MAZDA MOTORS CORP.
Rotate the front wheel spindle tie rods.

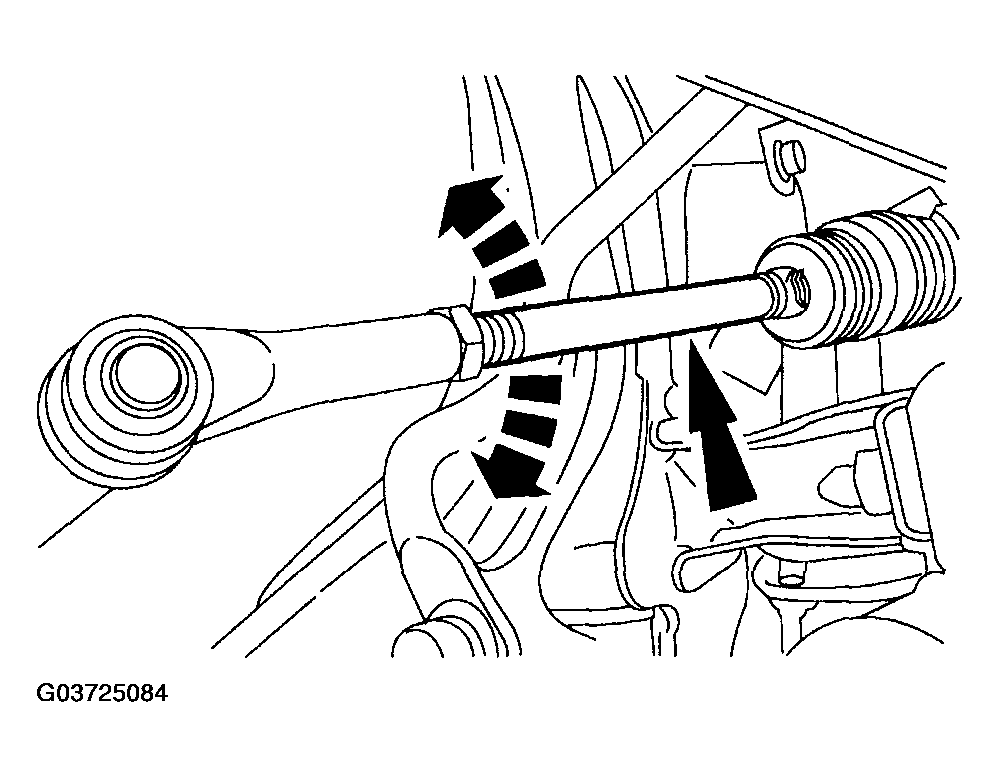

Fig 4: Rotating Front Wheel Spindle Tie Rods
Courtesy of MAZDA MOTORS CORP.
Tighten the nuts.

Fig 5: Tightening Nuts & Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install the clamp(s).

Fig 6: Installing Clamp(s)
Courtesy of MAZDA MOTORS CORP.
Recheck the toe settings. Follow the equipment manufacturer's instructions.
