Keyless Entry System Preliminary Inspection

KEYLESS ENTRY SYSTEM PRELIMINARY INSPECTION[KEYLESS ENTRY SYSTEM]

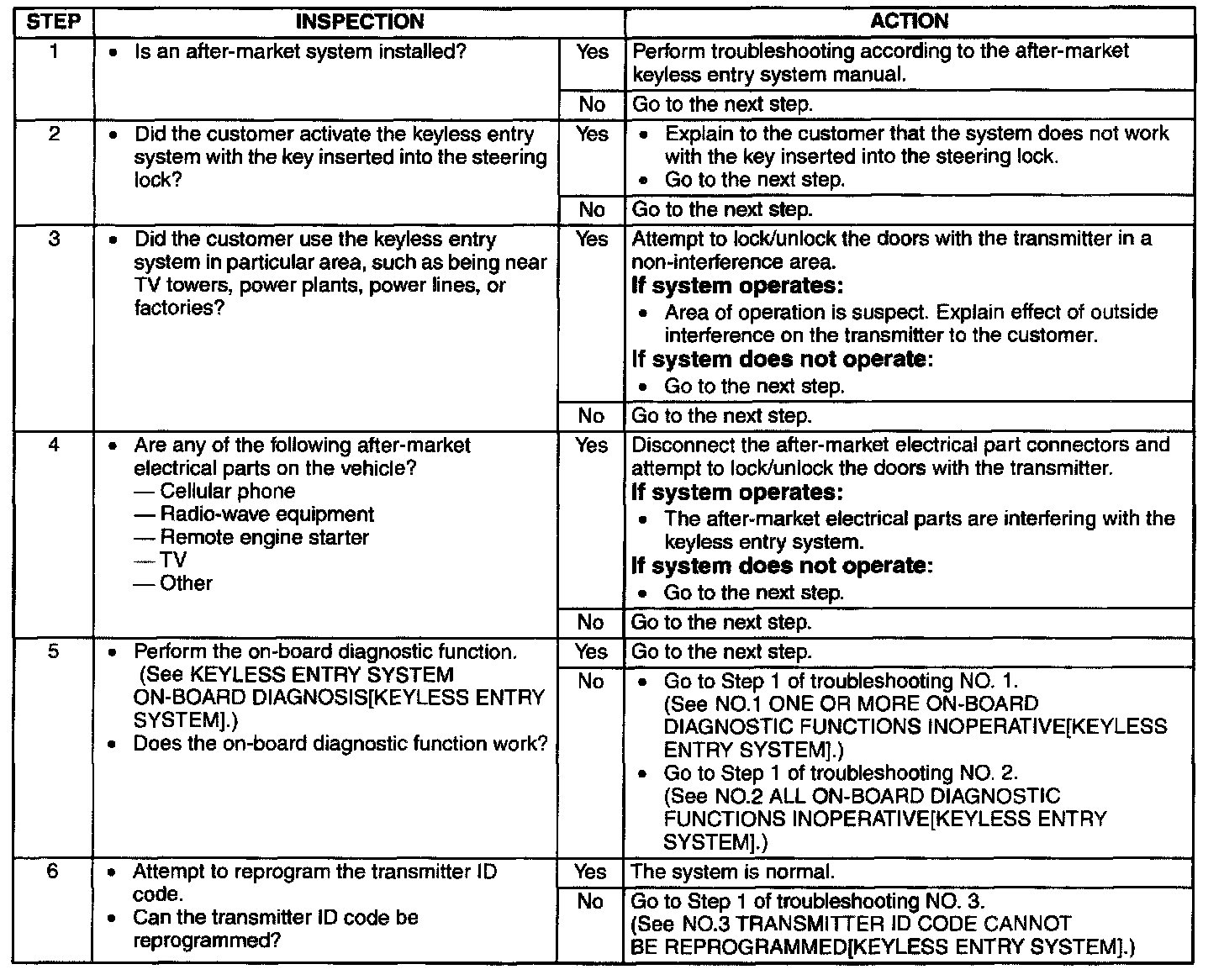

Step 1-Step 6:




- Perform the above preliminary inspection before troubleshooting.
