Fuse Block

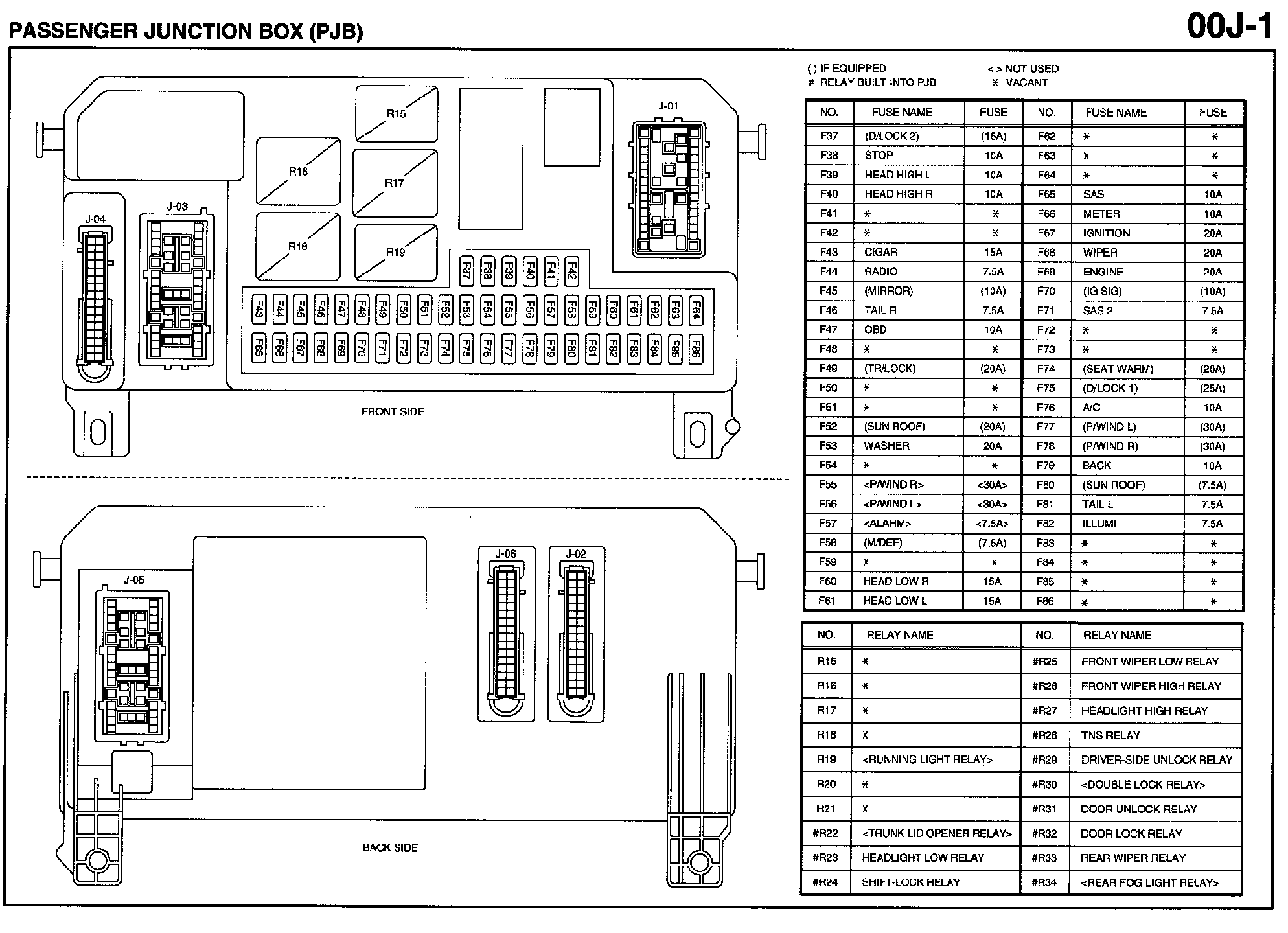

Passenger Junction Box (PJB):

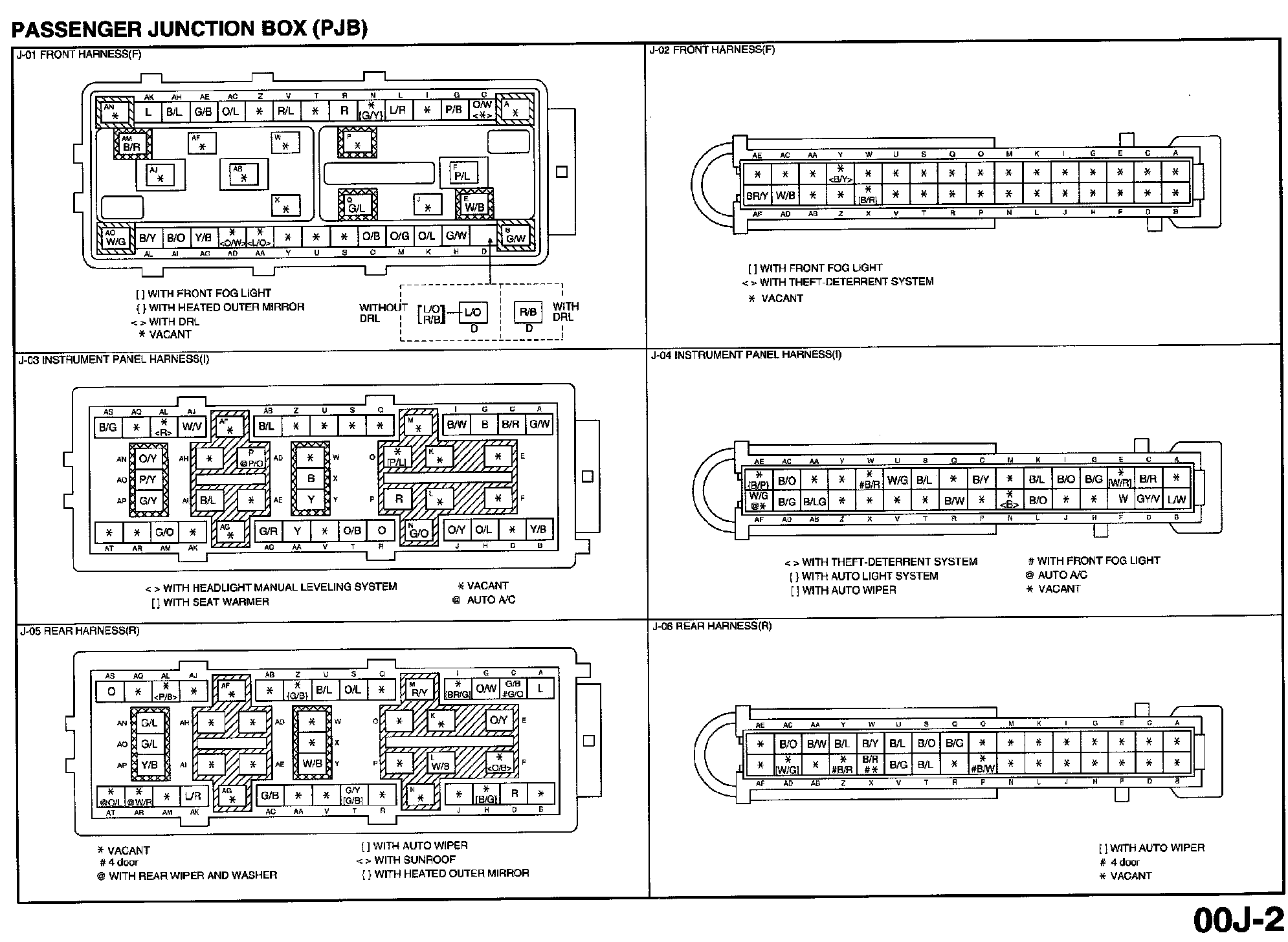

Passenger Junction Box (PJB):

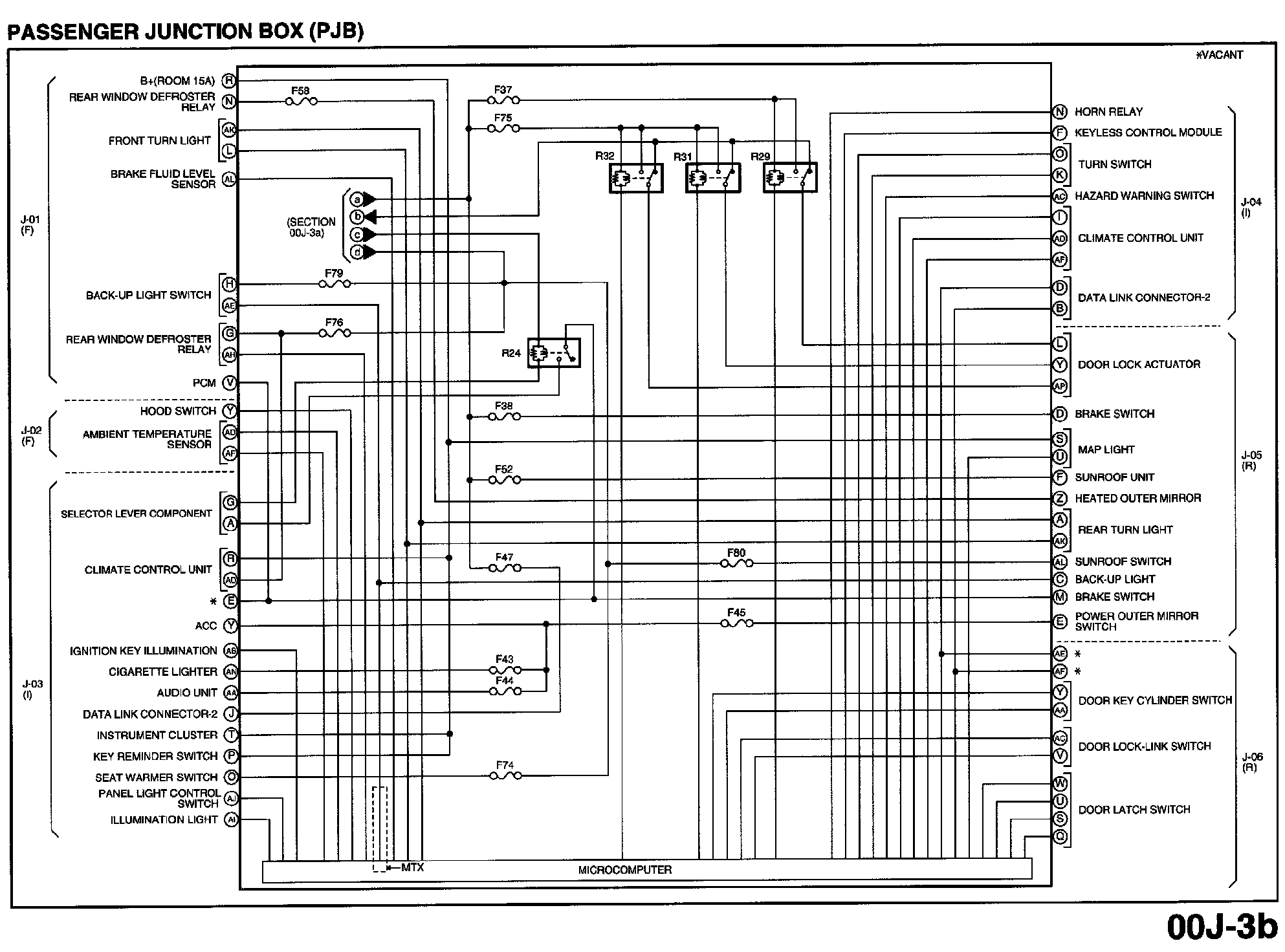

Passenger Junction Box (PJB):

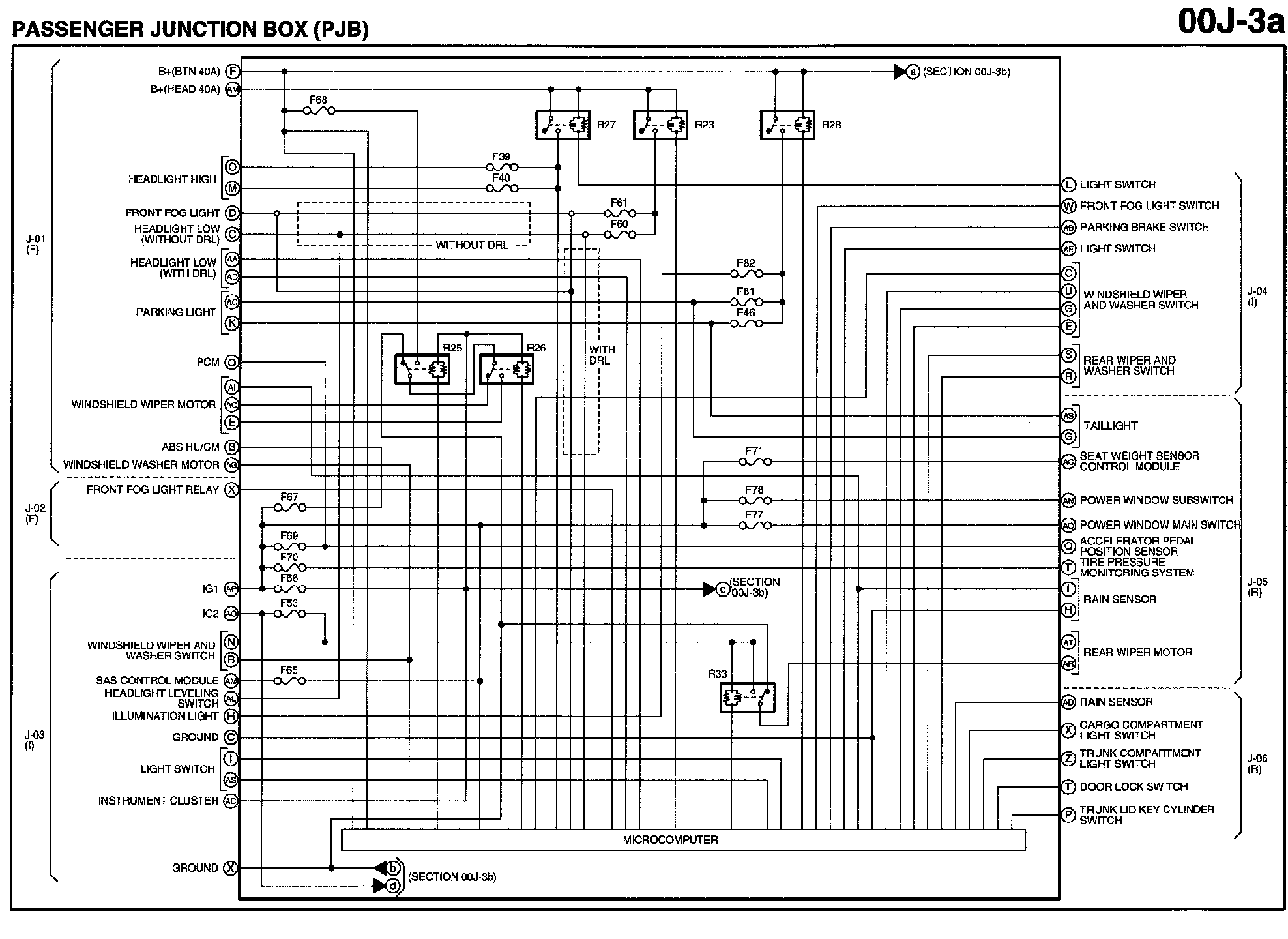

Passenger Junction Box (PJB):
