[Manual Air Conditioner]

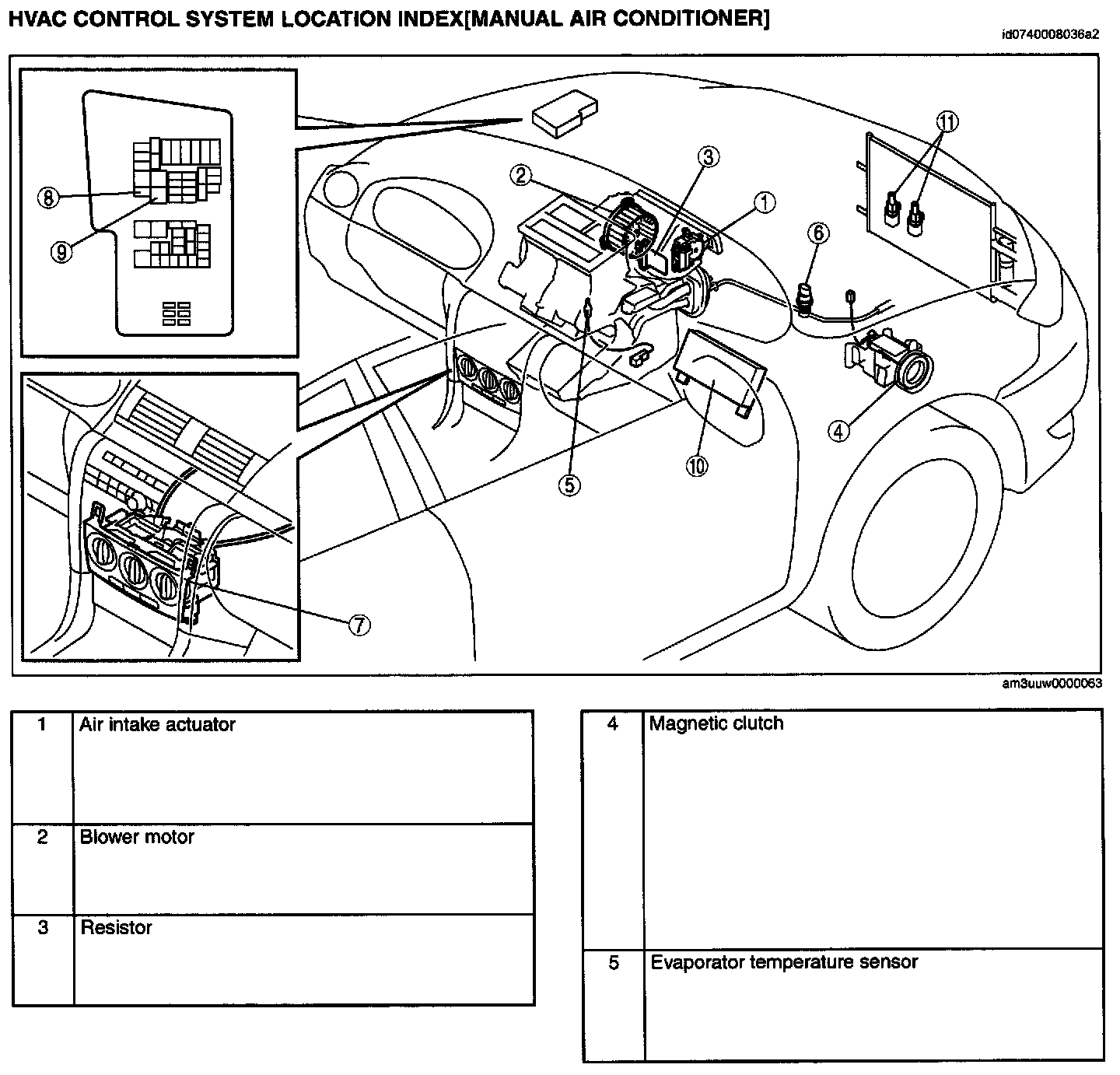

HVAC Control System Location Index(Manual Air Conditioner):



HVAC Control System Location Index(Manual Air Conditioner):
