Electrical Diagrams

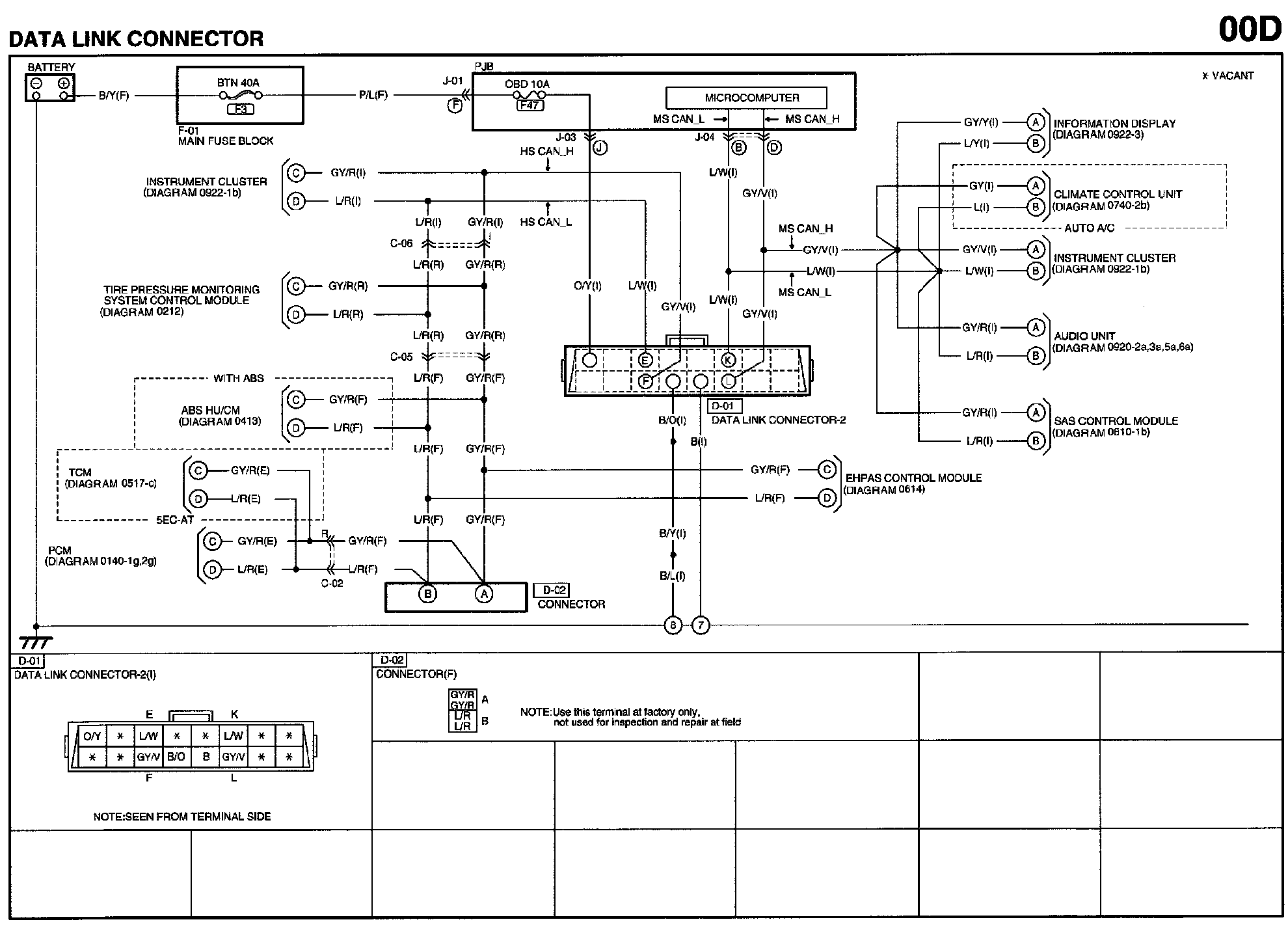

Diagram 00D:

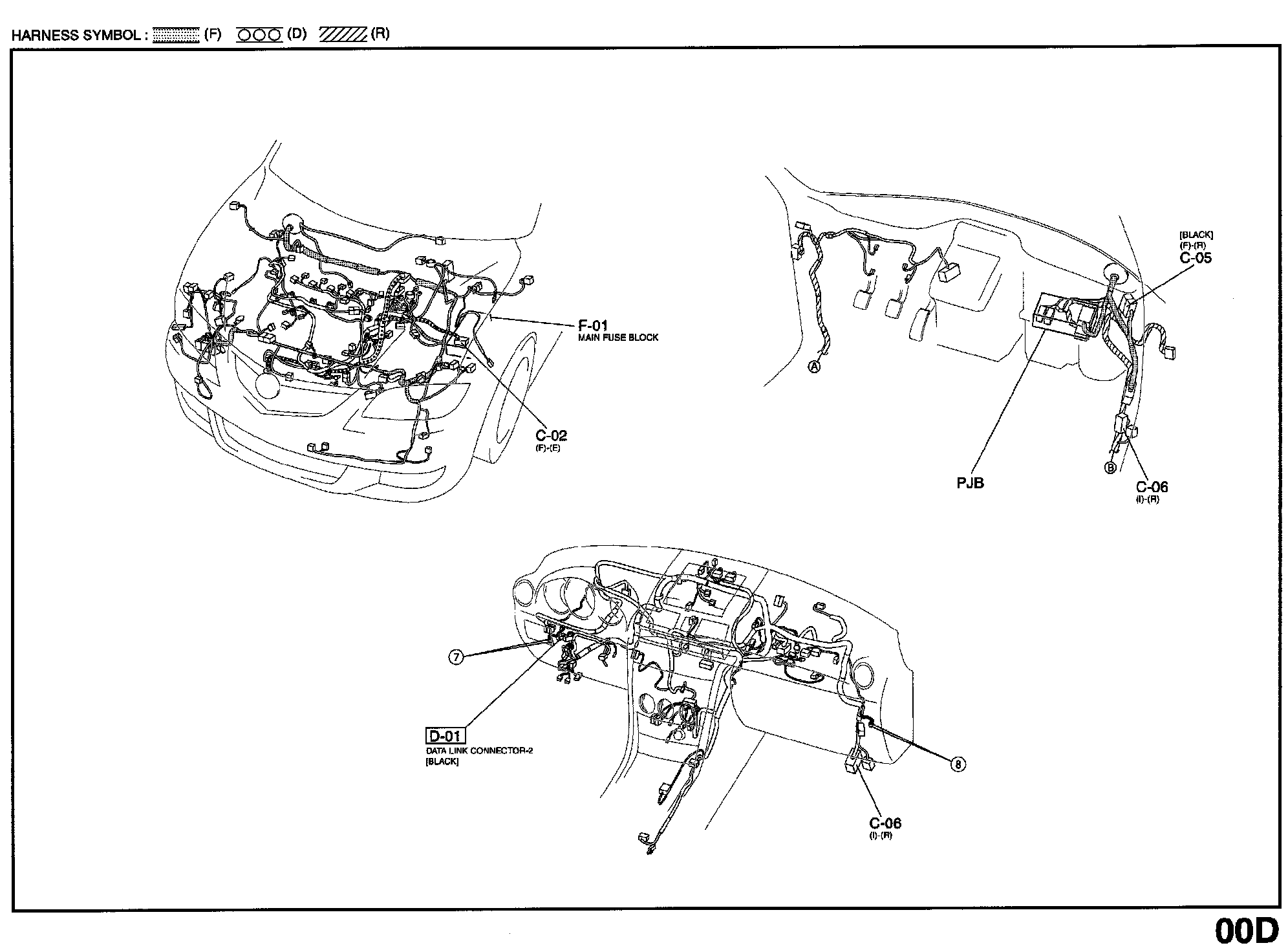

Routing View 00D:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name.


Connector Views: Additional connector pinout views for the common connectors that may be referred to on these diagrams can be found via the connector number at the vehicle level connector views
