Knock Sensor: Service and Repair

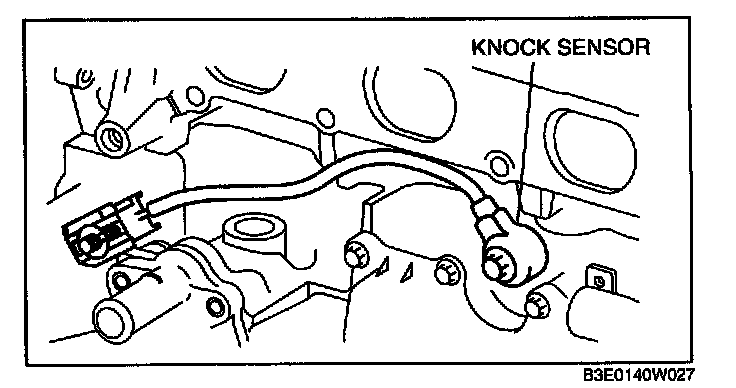

KNOCK SENSOR (KS) REMOVAL/INSTALLATION[LF, L3]

1. Remove the following part for easier access.
- Intake manifold
2. Disconnect the KS connector.




3. Remove the KS installation bolt, then remove the KS.
4. Install in the reverse order of removal.

Tightening torque : 16 - 24 Nm {1.7 - 2.4 kgf-m, 12 - 17 ft-lbf}
