Ignition System: Testing and Inspection

Spark Test
1. Disconnect the fuel pump relay.
2. Verify that each ignition coil and connector is connected properly.

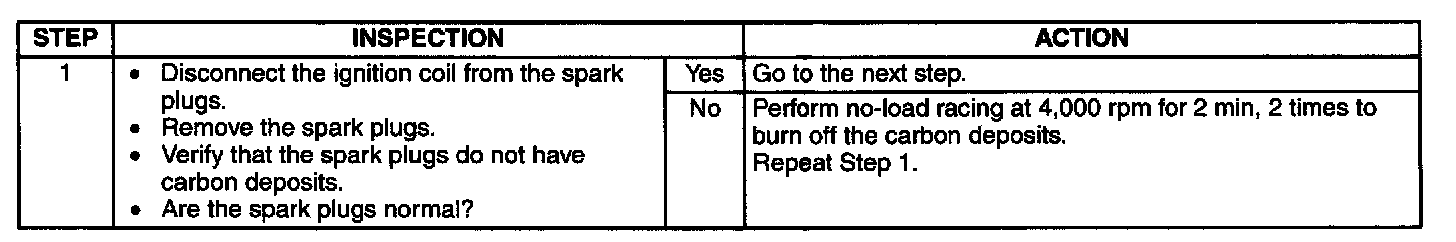

Step 1:

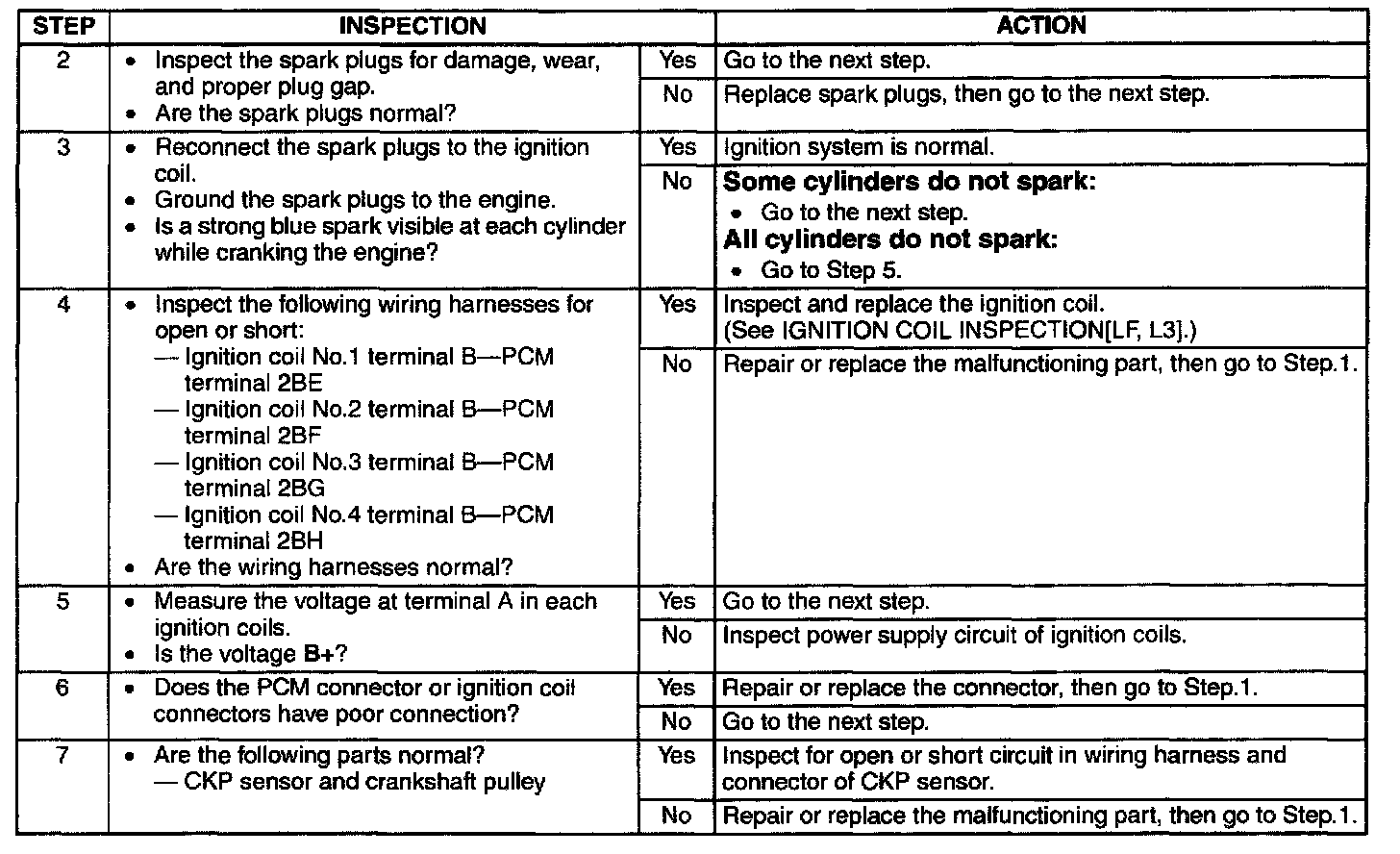

Step 2-Step 7:

3. Inspect the ignition system in the following procedure.

WARNING - High voltage in the ignition system can cause strong electrical shock which can result in serious injury. Avoid direct contact to the vehicle body during the following spark test.
