Rear Wheel Alignment

REAR WHEEL ALIGNMENT

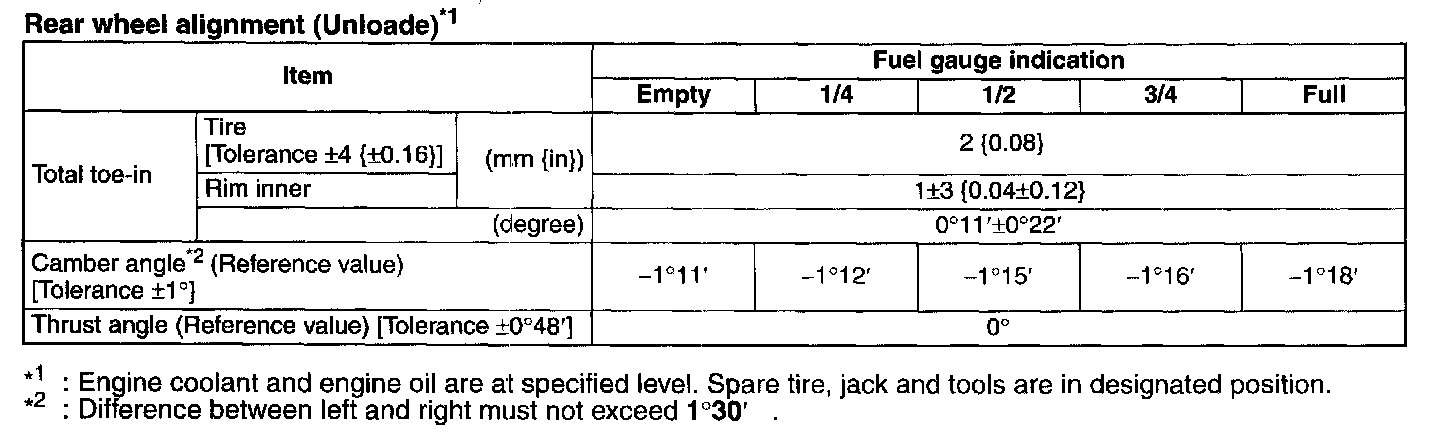

Rear wheel alignment (Unloaded)*1:

Note

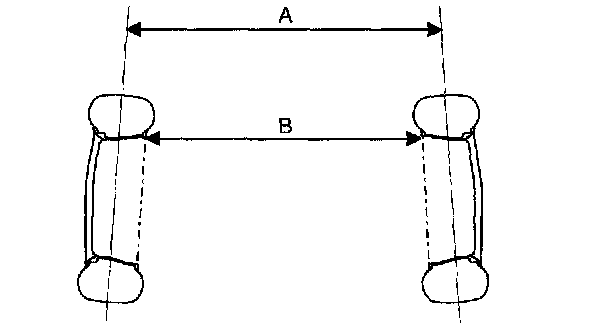

Total toe-in measuring position





^ Tire: A indicated in the figure (between the center of the tires)
^ Rim inner: B indicated in the figure (between the inner side of the rims)

Total Toe-in Adjustment

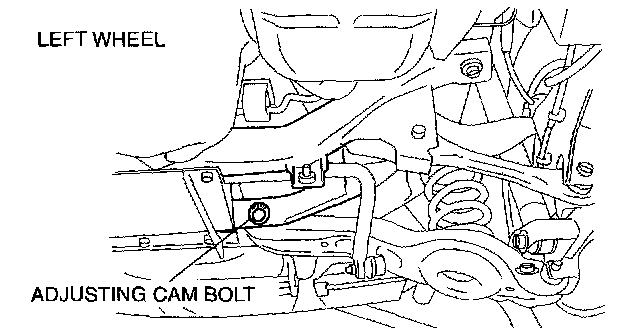

1. Loosen the securing nut of the adjusting cam bolt.

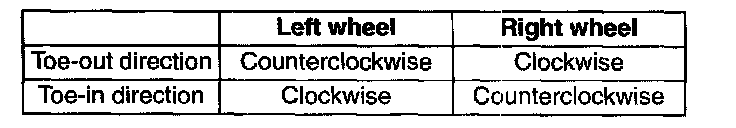

2. Rotate the adjusting cam bolt in either direction to adjust the toe-in.





3. Tighten the nut.

Tightening torque
80-105 Nm (8.2-10.7 kgf-m, 59.1-77.4 ft. lbs.)
