Procedures

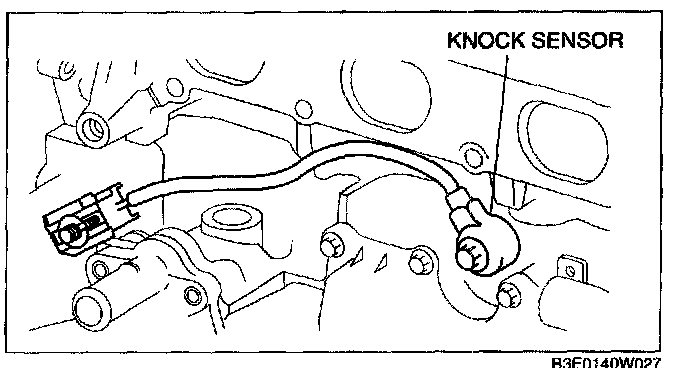

KNOCK SENSOR (KS) REMOVAL/INSTALLATION [L3]

1. Remove the following part for easier access.
- Intake manifold.

2. Disconnect the KS connector




3. Remove the KS installation bolt, then remove the KS.
4. Install in the reverse order of removal.

Tightening torque: 16-24 N.m (1.7-2.4 kgf.m, 12-17 ft.lbf)
