Symptom Quick Diagnostic Chart

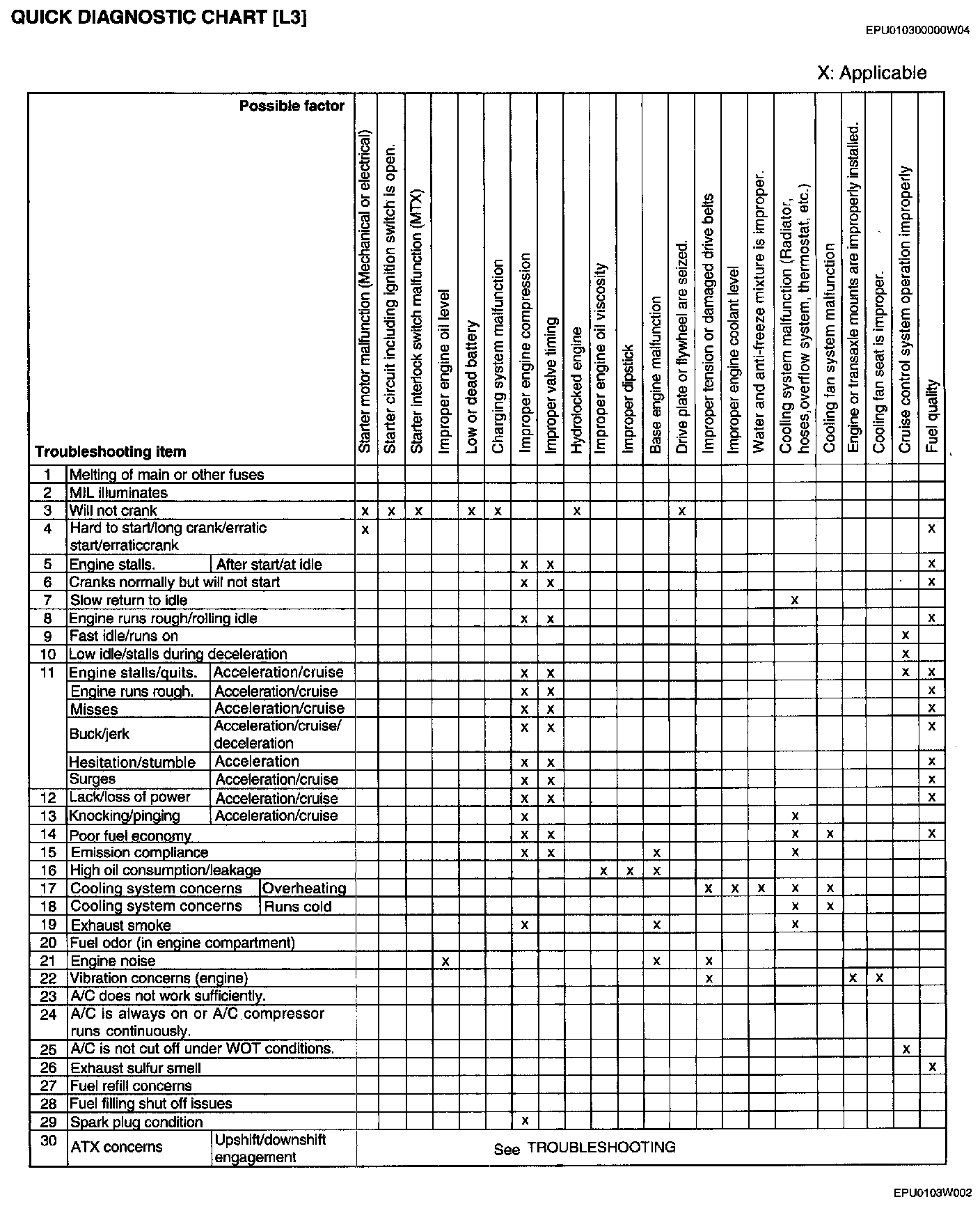

Quick Diagnostic Chart [L3] (Part 1):

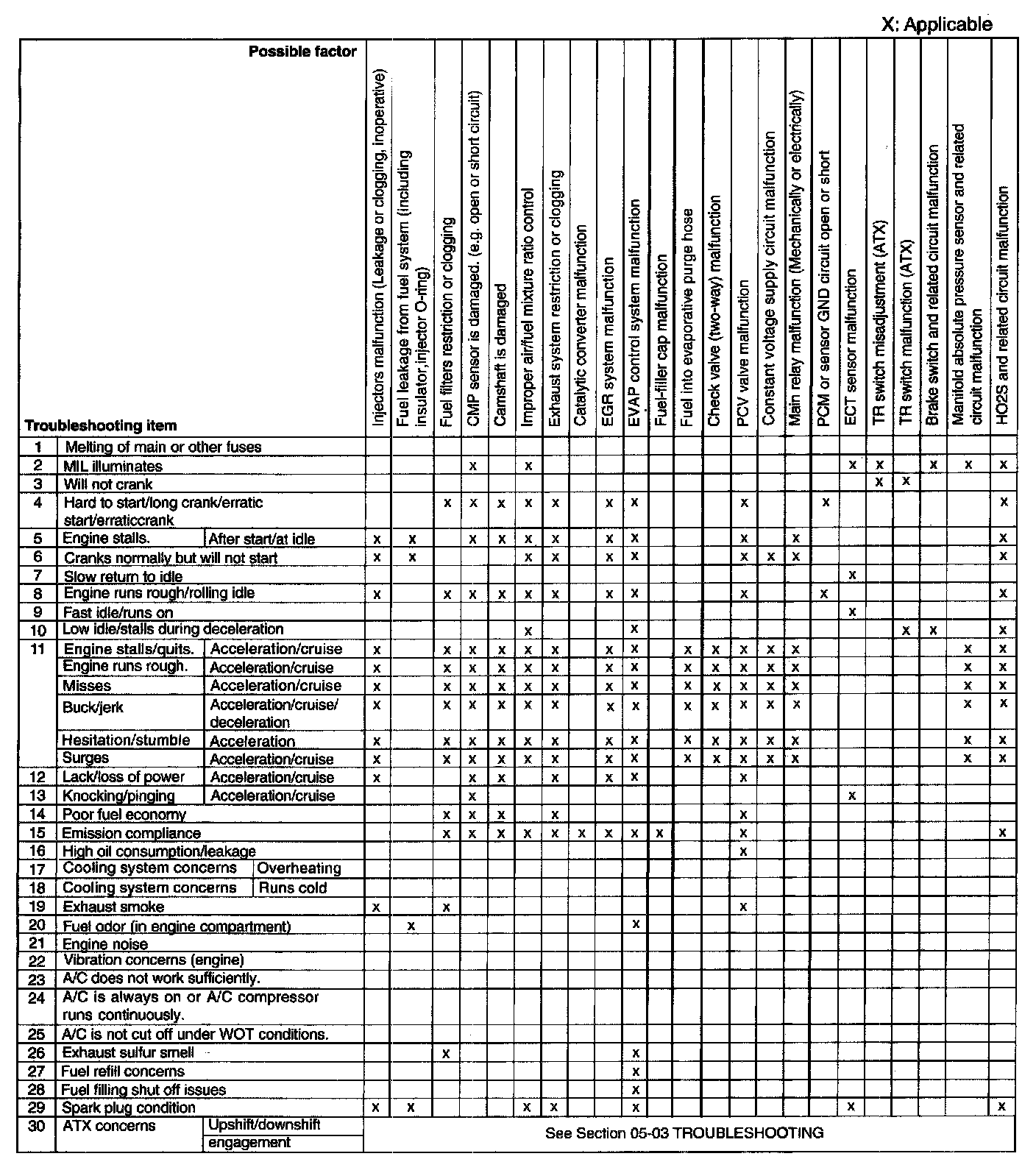

Quick Diagnostic Chart [L3] (Part 2):

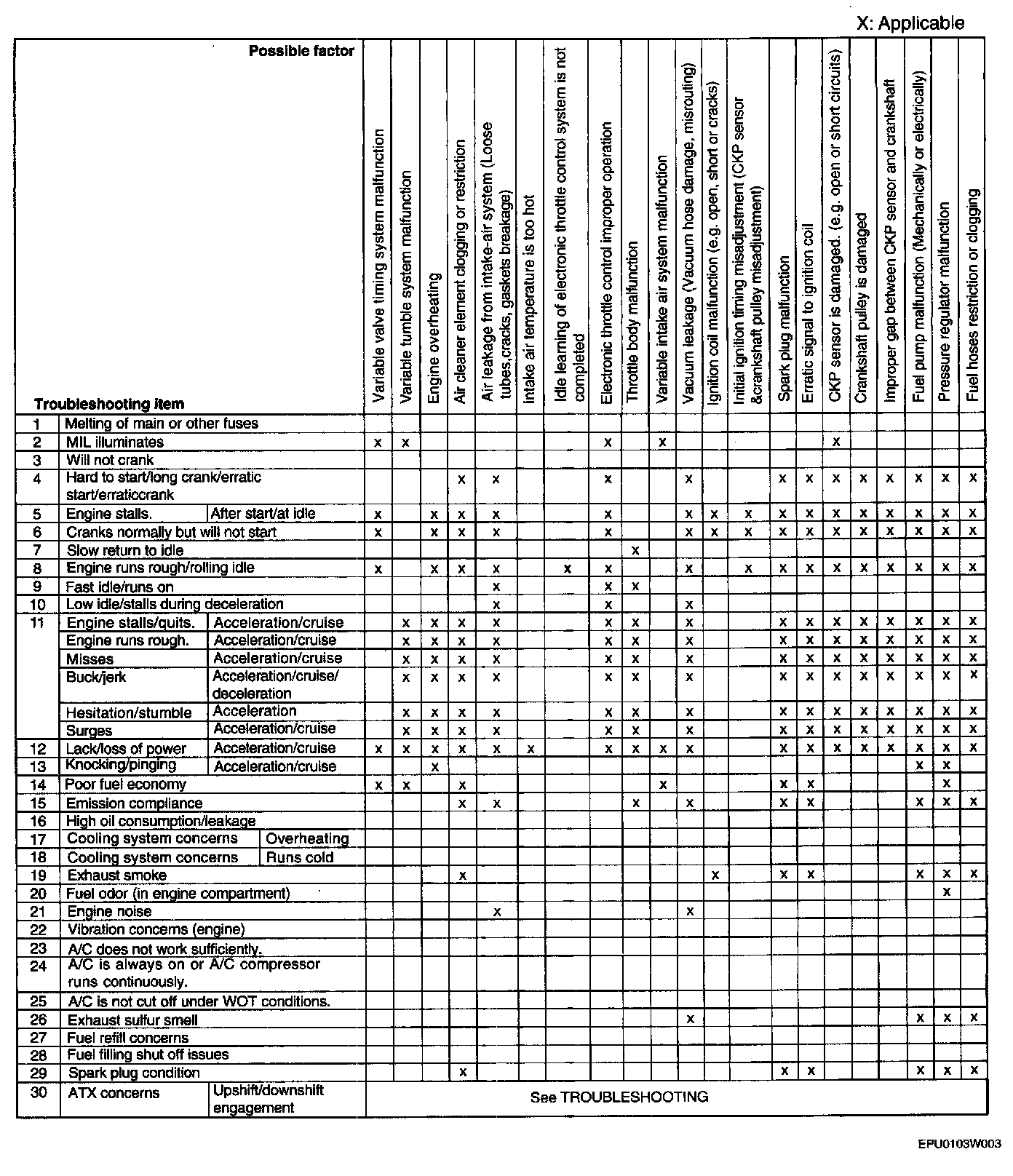

Quick Diagnostic Chart [L3] (Part 3):

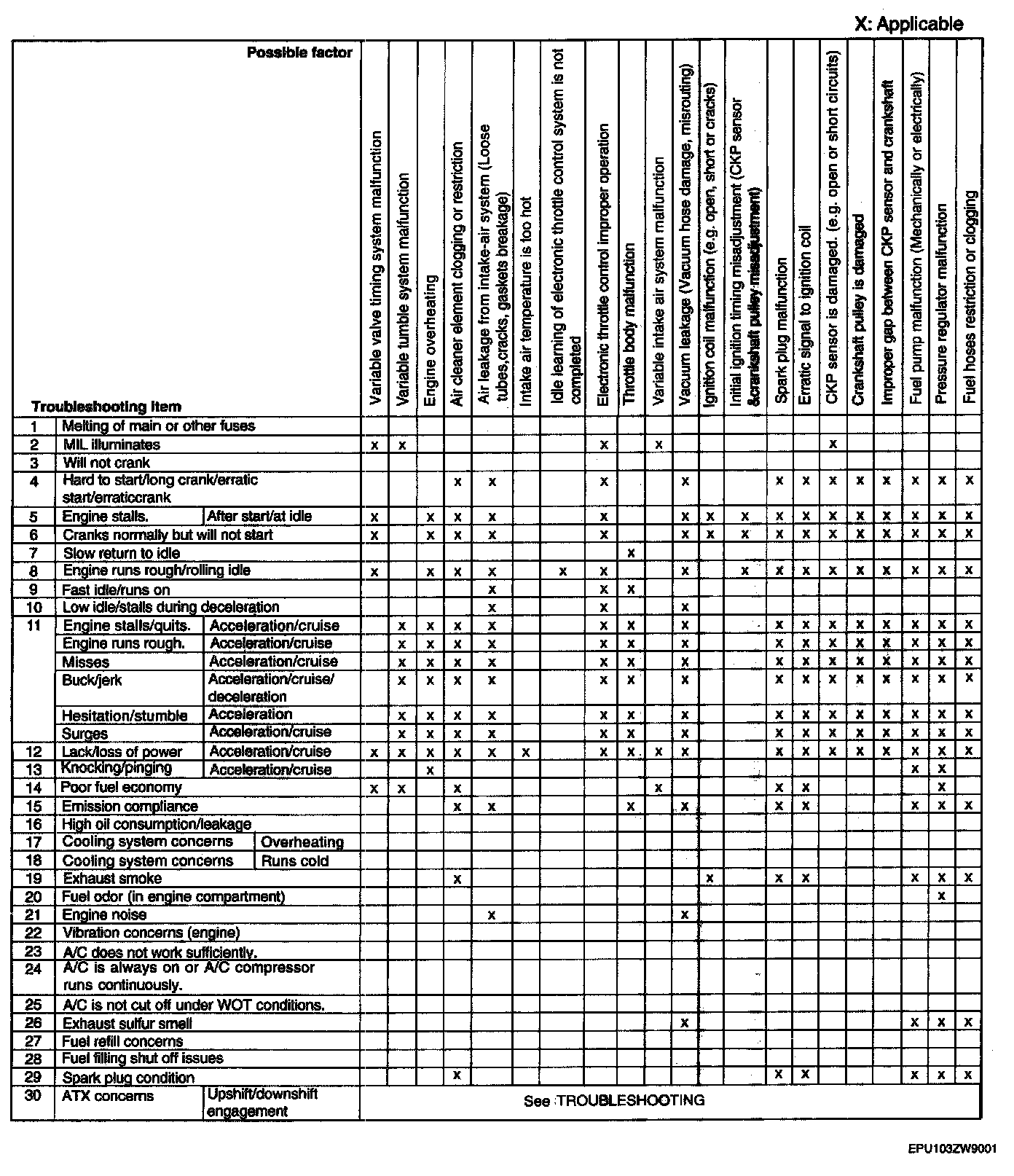

Quick Diagnostic Chart [L3] (Part 4):
