System Schematic

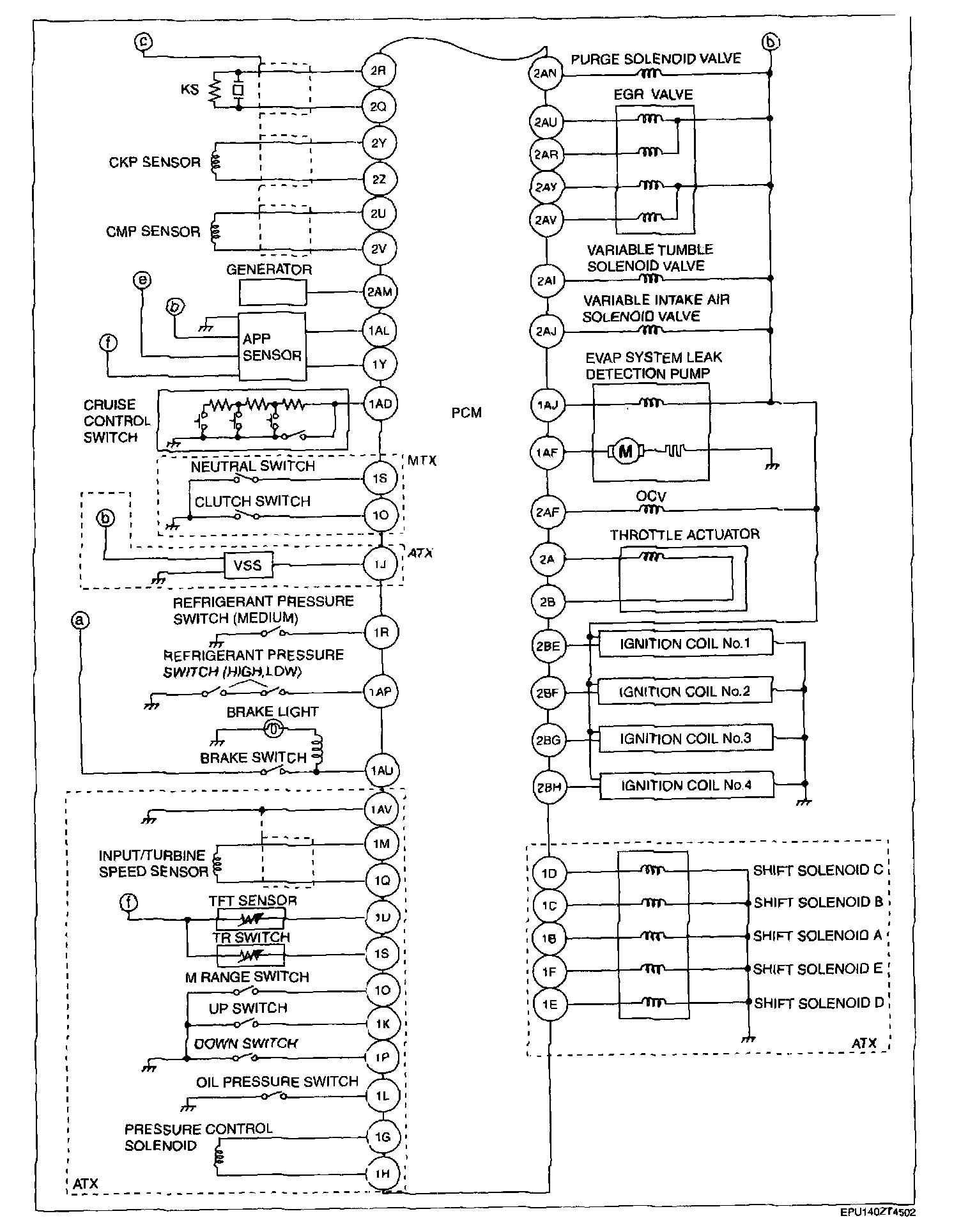

Control System Wiring Diagram [L3] (Part 1):

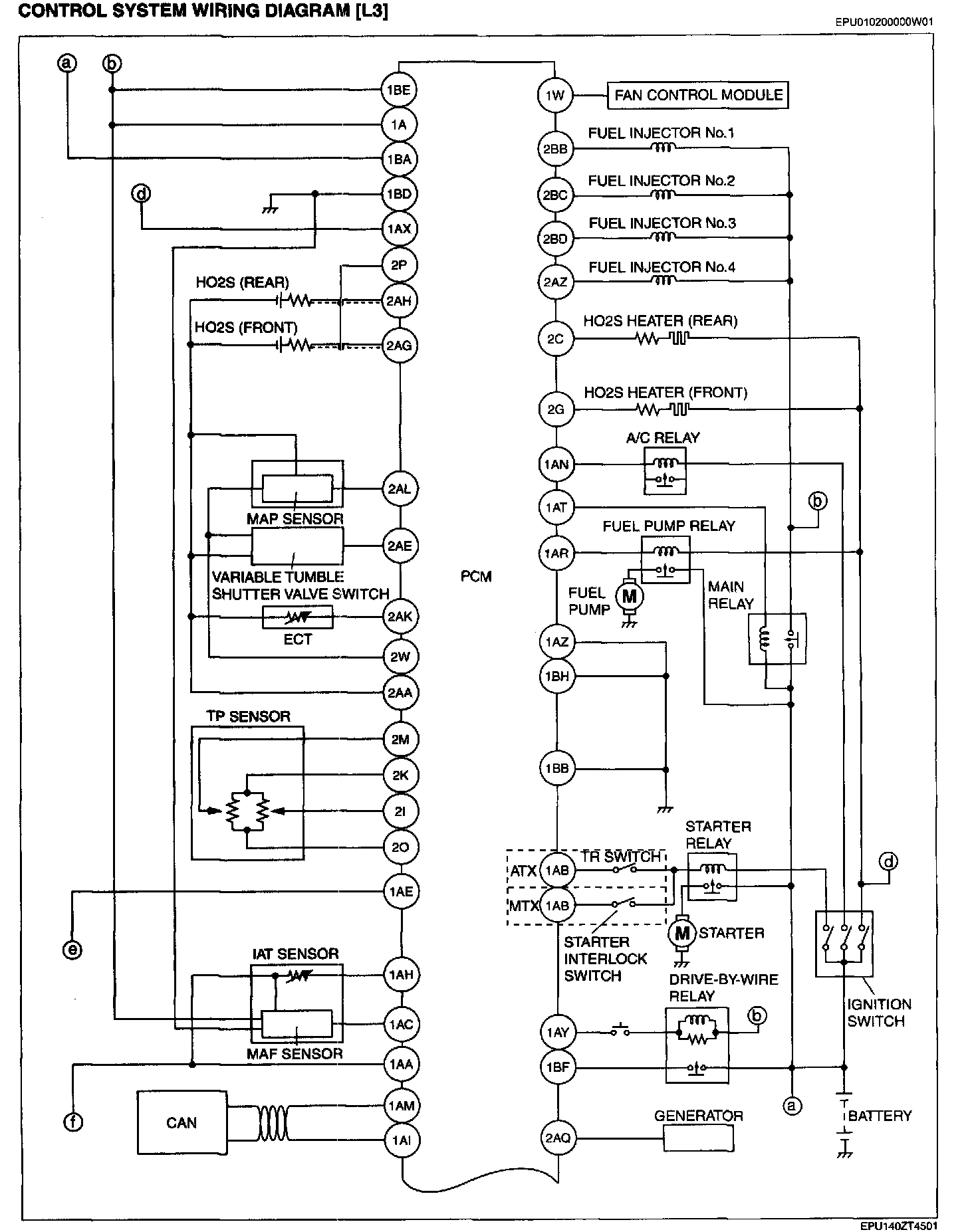

Control System Wiring Diagram [L3] (Part 2):
