Evaporative Emissions System: Locations

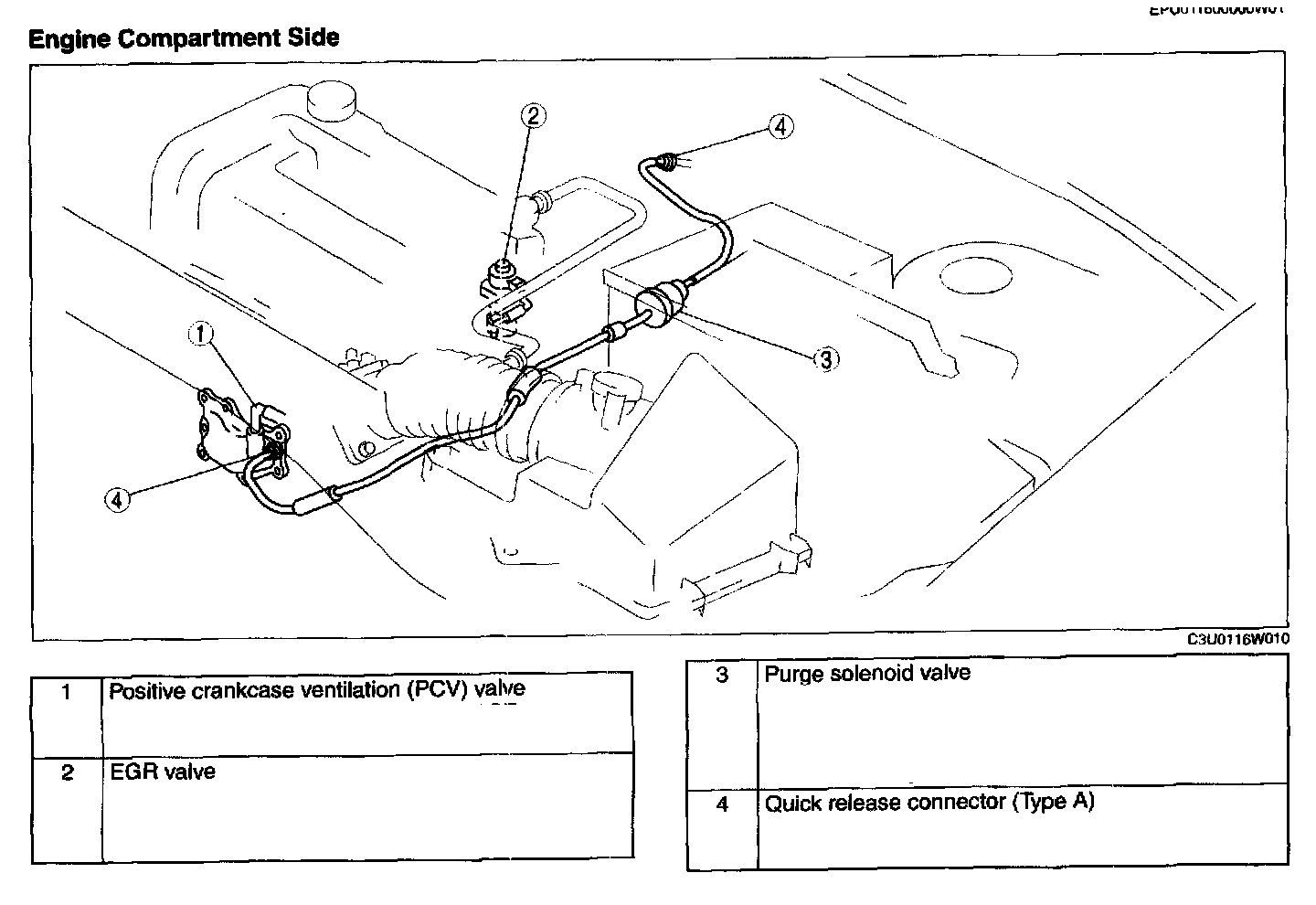

Emission System - Component Location Index [L3] - Engine Compartment Side:



Emission System Location[L3] - Exhaust System:

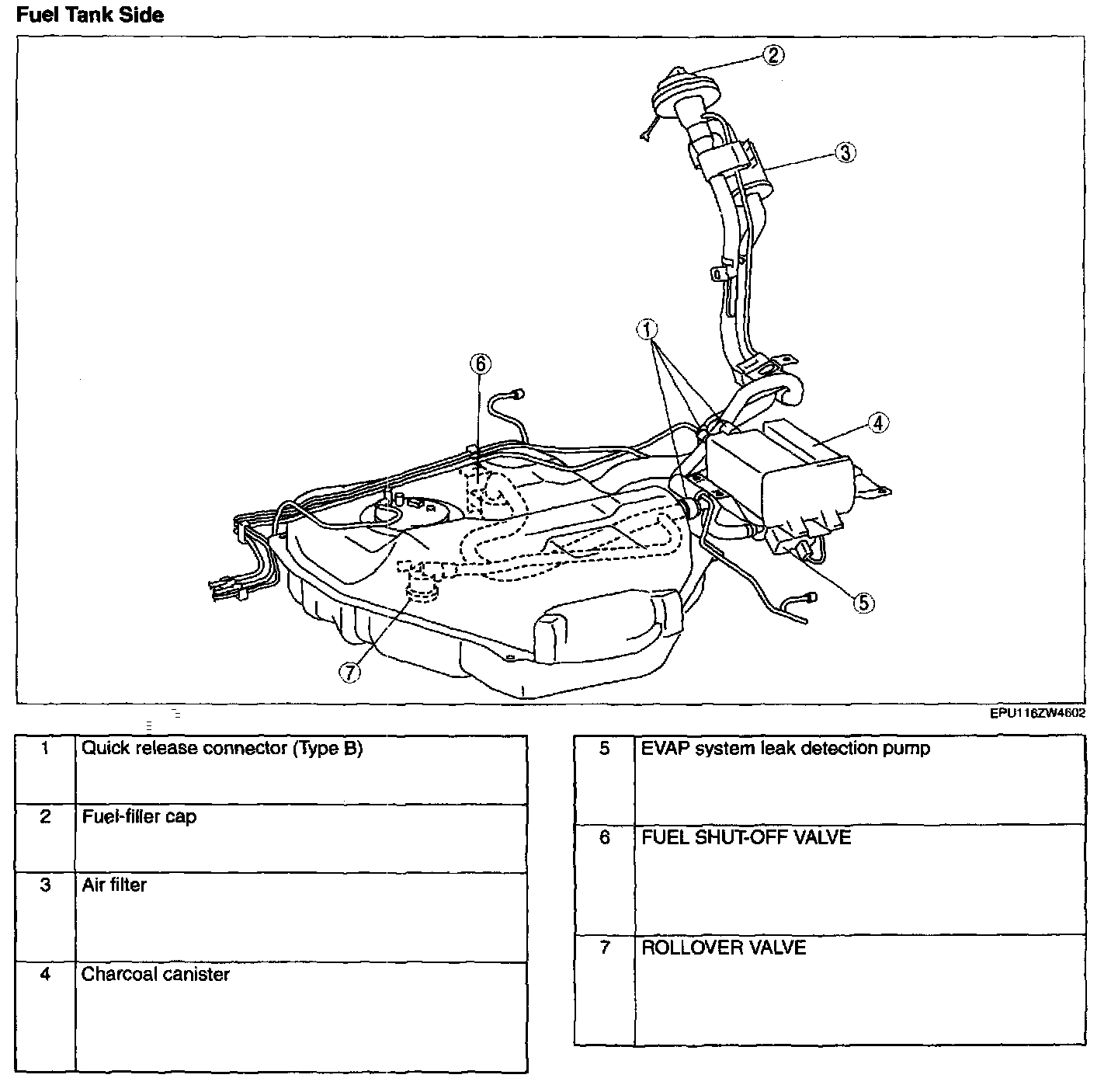

Emission System Location [L3] - Fuel Tank Side:
