Wiring harness

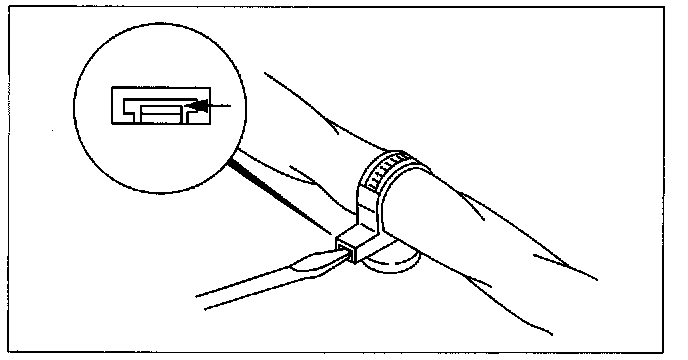

- To remove the wiring harness from the clip in the engine room, pry up the hook of the clip using a flathead screwdriver.

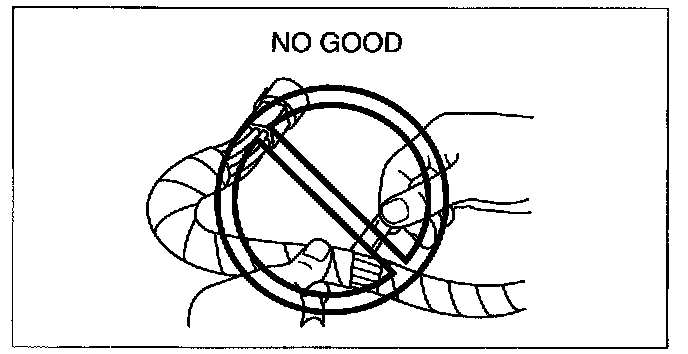

Caution: Do not remove the harness protective tape. Otherwise, the wires could rub against the body, which could result in water penetration and electrical shorting.

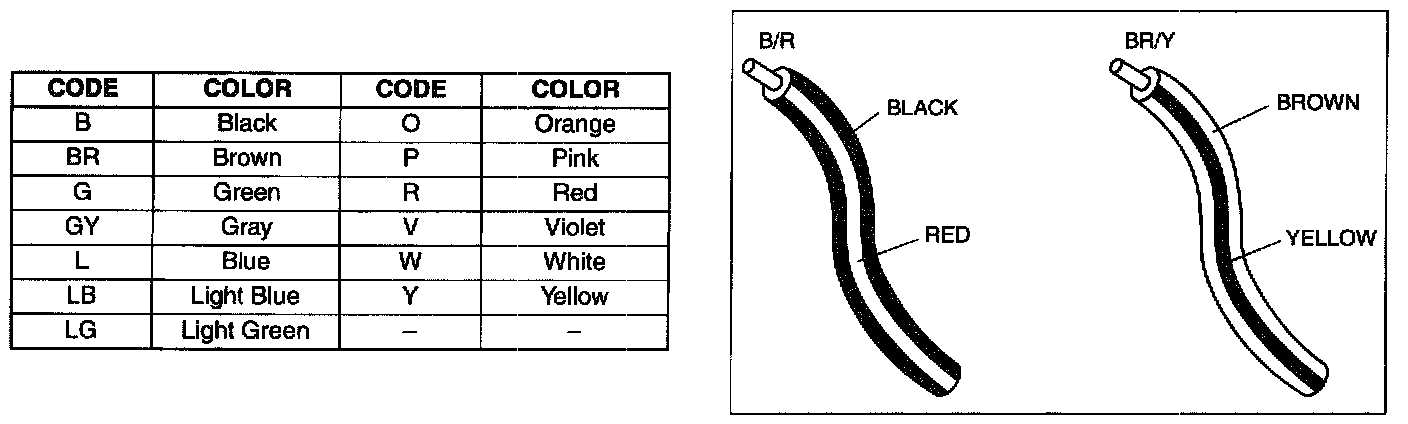

Wiring color codes




- Two-color wires are indicated by a two-color code symbol.
- The first letter indicates the base color of the wire and the second the color of the stripe.
