System Specifications

Automatic Transaxle

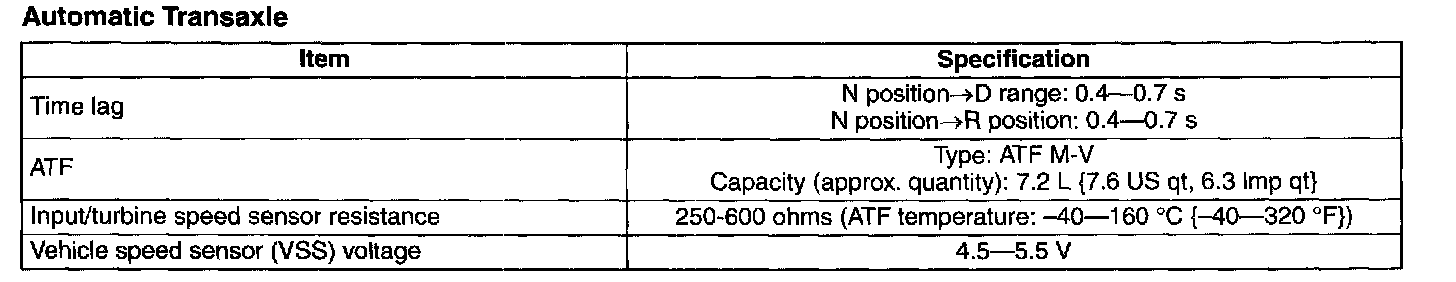

Automatic Transaxle:

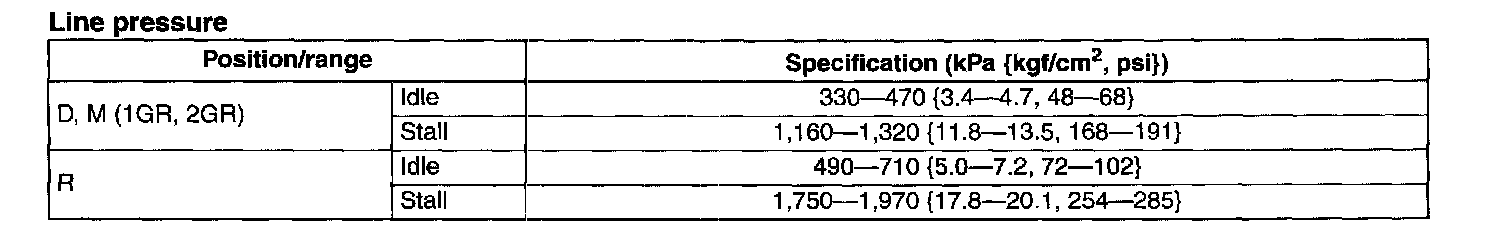

Line pressure:

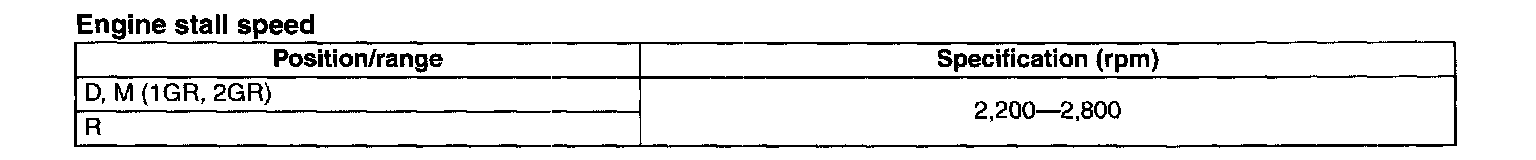

Engine stall speed:

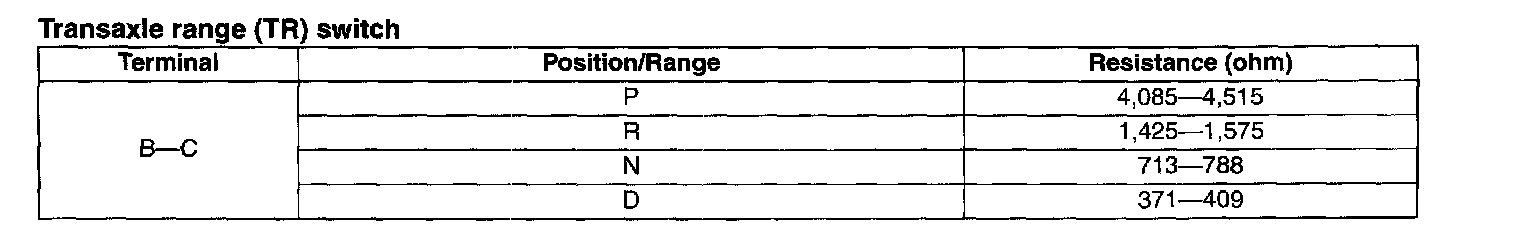

Transaxle range (TR) switch:

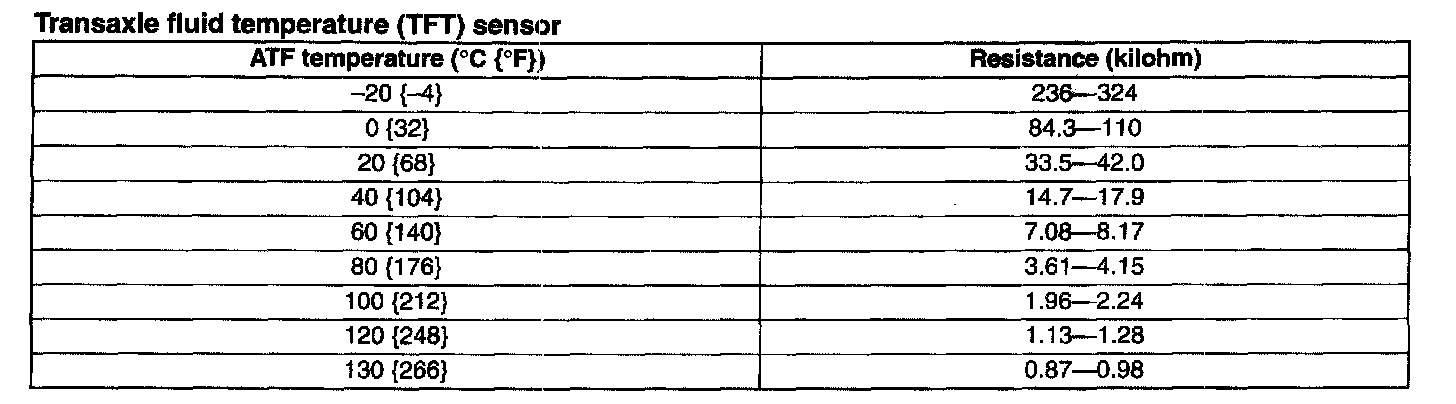

Transaxle fluid temperature (TFT) sensor:

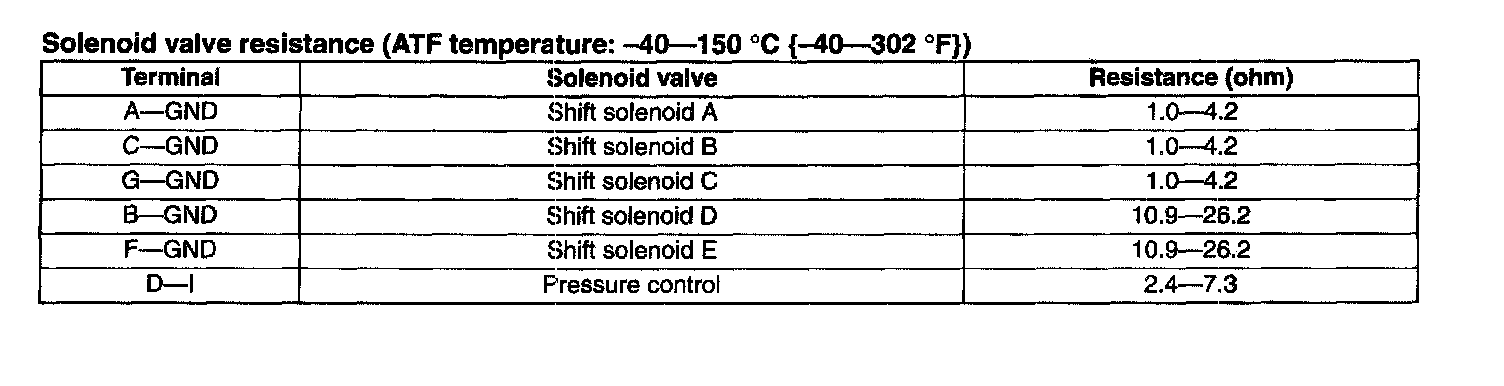

Solenoid valve resistance (ATF temperature: -40-150C (-40-302F)):

Flexplate

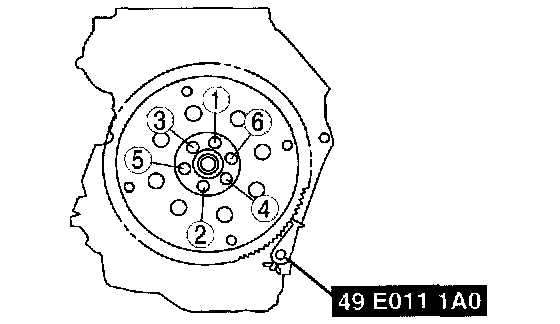

Tighten the drive plate mounting bolls in two or three steps in the order as shown in the figure.

Tightening torque
108-116 Nm (11.0-11.8 kgf-m, 79.7-85.5 ft. lbs.)

Oil pan bolts 6-8 Nm (62-81 kgf-cm, 53-71 inch lbs.)
