Component Locations

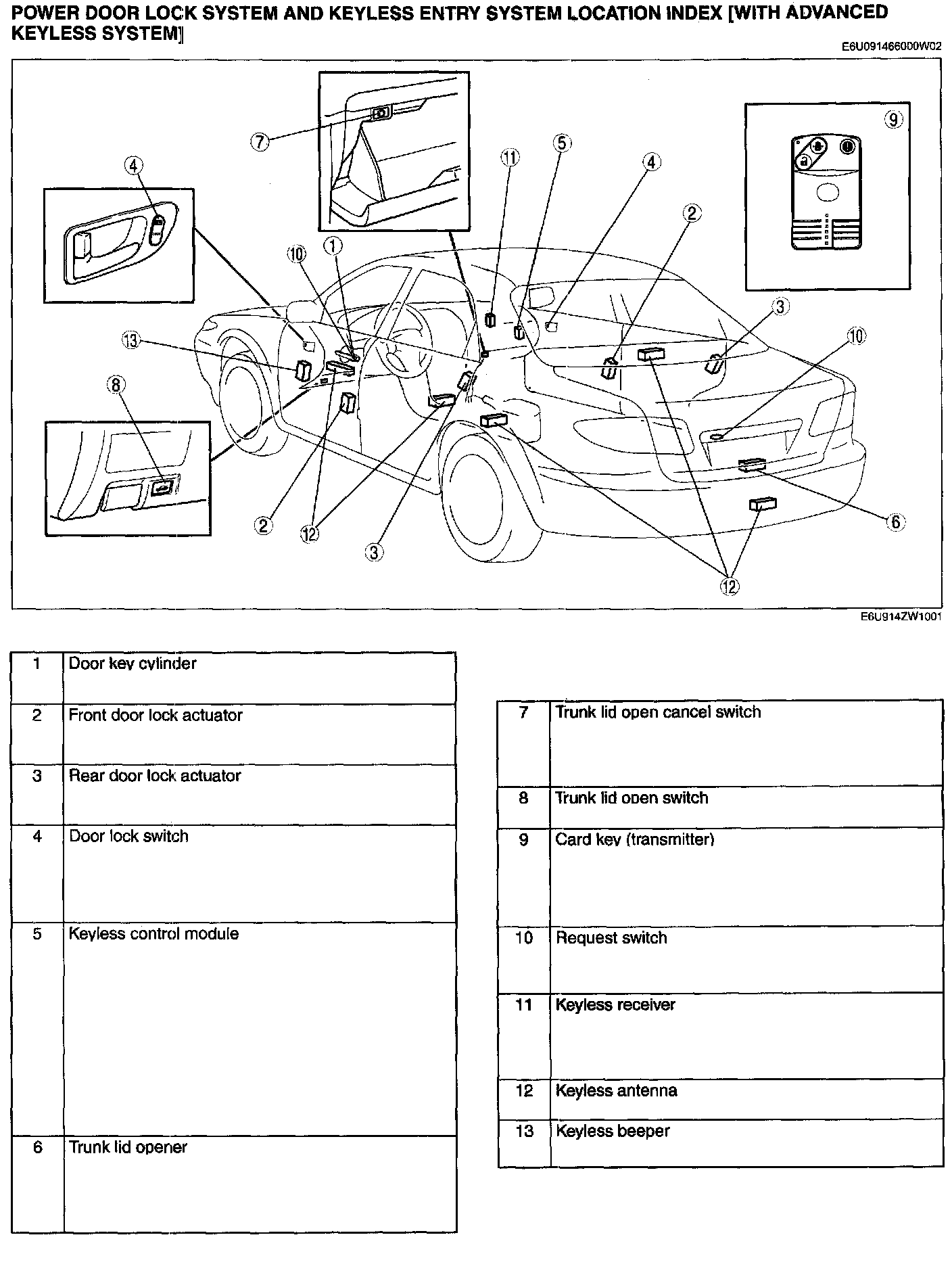

Power Door Lock System And Keyless Entry Location Index [With Advanced Keyless System]:



Theft-Deterrent System Location:
