Keyless Control Module Configuration

KEYLESS CONTROL MODULE CONFIGURATION [WITH ADVANCED KEYLESS SYSTEM]

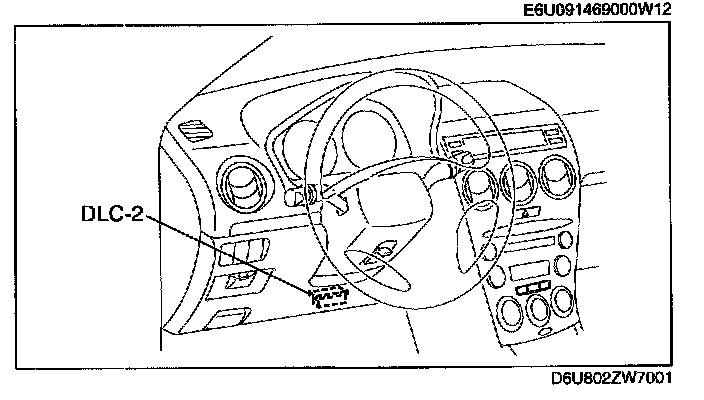

1. Connect the WDS or equivalent to the DLC-2.
2. Select "Module Programming".
3. Select "Configuration/PMI".
4. Select "RKE" and perform procedures according to directions on the screen.
