Transmitter Battery Replacement [Keyless Entry System]

TRANSMITTER BATTERY REPLACEMENT [KEYLESS ENTRY SYSTEM]

Retractable Key Type

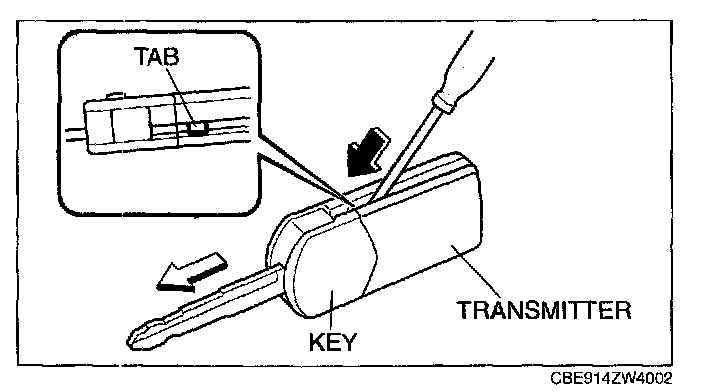

1. Insert a small screwdriver into the slot and push the tab to remove the key from the transmitter.

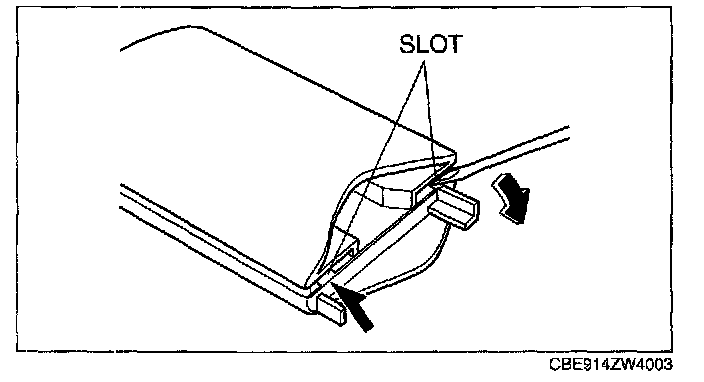

2. Insert a small screwdriver into the slot and gently pry open the transmitter.

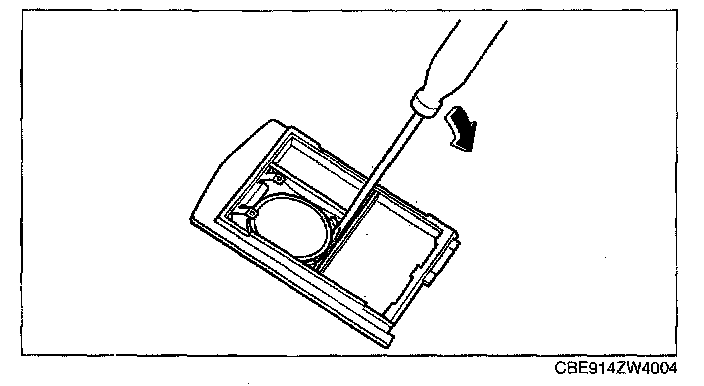

3. Remove the battery.

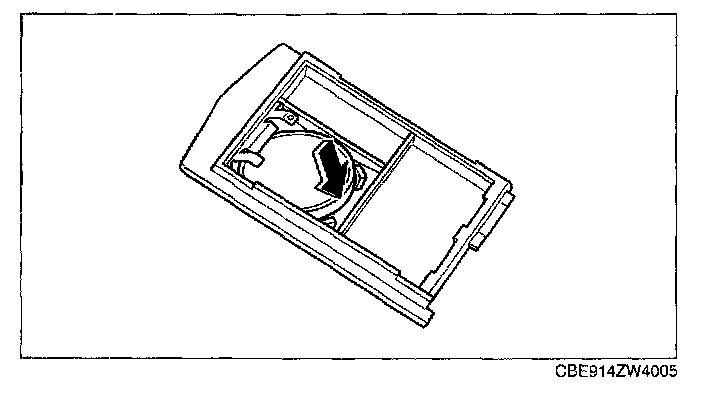

4. Put in the new battery (CR1620) with the positive pole (+) facing clown.
5. Align the front and back covers and snap the transmitter shut.

Battery specification Lithium CR1620 x 1

NOTE: The batteries will last about 2 years when used 10 times a day.




6. Install the key to the transmitter.
