Total Toe-In Adjustment

Total Toe-in Adjustment

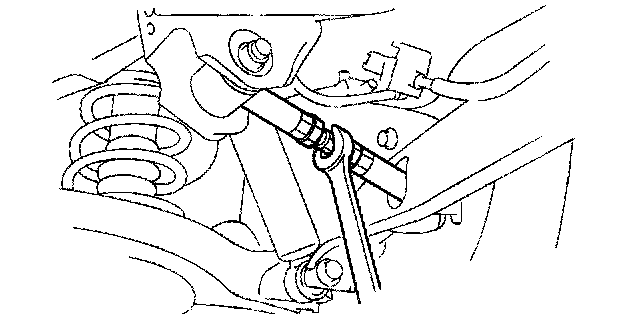

1. Loosen the locknut of the lateral link.

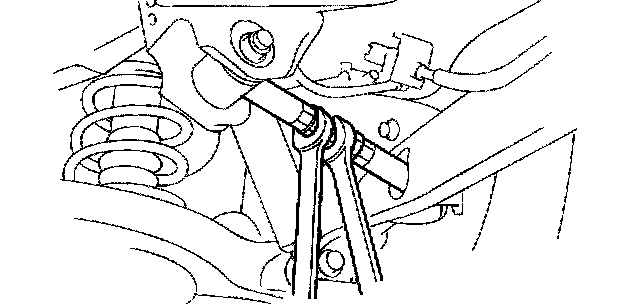

2. Adjust the toe-in turning the adjusting link.
Specification
Total Toe-in: 2±4 mm (0.08±0.16 inch)

Note:
^ Toe change amount: 0° 43' one rotation





3. Tighten the locknut.
Tightening torque 68.6 - 98.1 Nm (7.0 - 10.0 kgf-m, 50.6 - 72.3 ft. lbs.)
